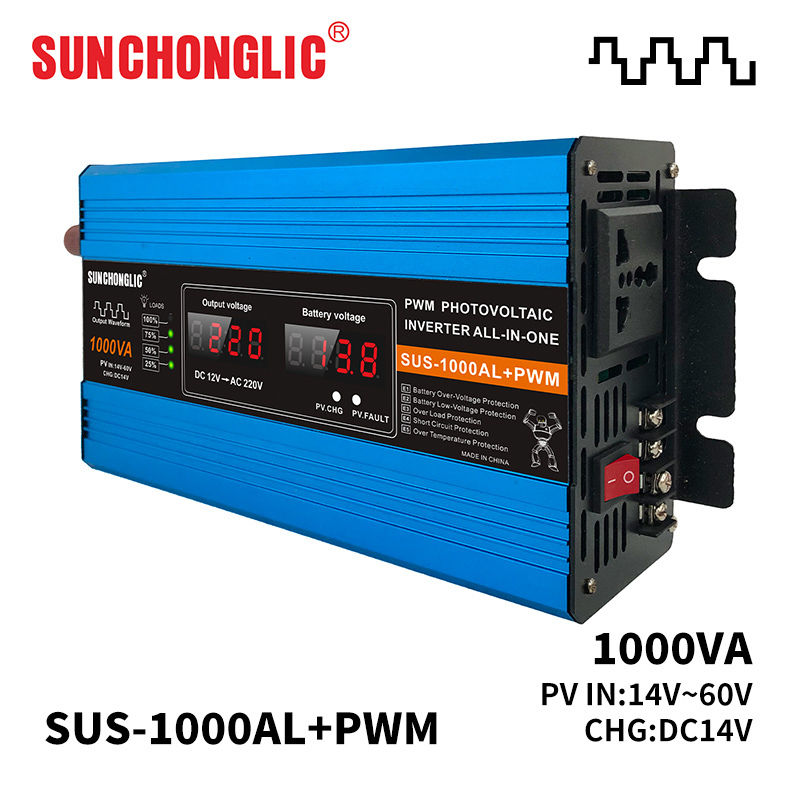

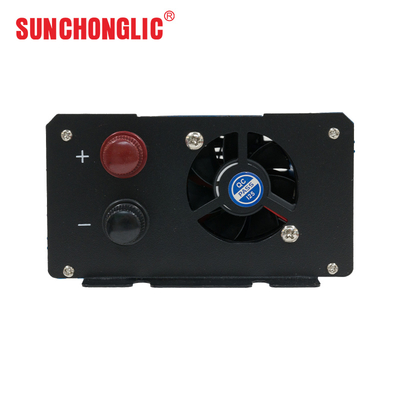

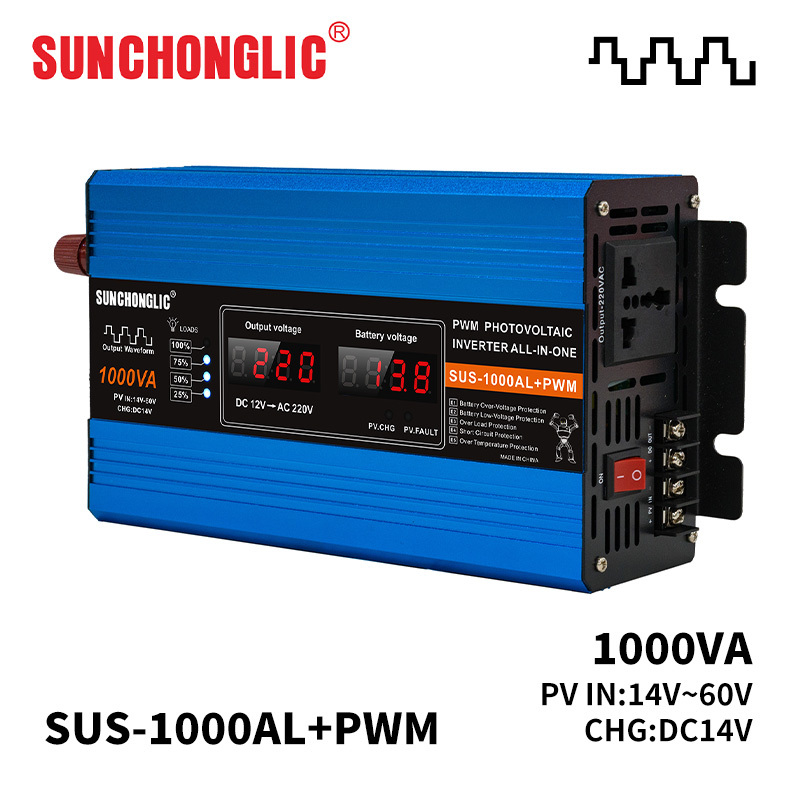

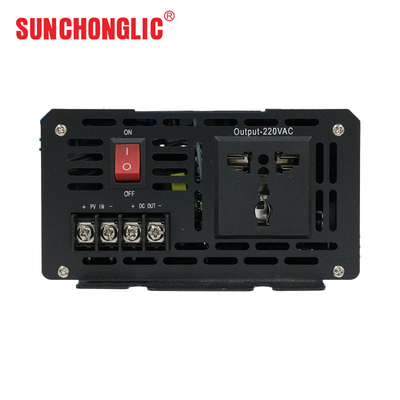

12v To 220v Solar Charge Inverter 1000va 1000w Modified Sine Wave Power Inverter

12v To 220v Solar Charge Inverter 1000va 1000w Modified Sine Wave Power Inverter

Brand Name: Sunchonglic
Model Number: SUS-1000AL+PWM
MOQ: 5pcs
Price: US $53.85 - 60.00
Payment Terms: T/T
Supply Ability: 100000pcs/mon
Detail Information
Place of Origin:
China
Product Name:
1000va 1000w Modified Sine Wave Power Inverter Mppt Solar Photovoltaic Inverter 12v To 220v
Output Waveform:
Modified Sine Waveform Output
Output Frequency:
50Hz±3Hz
Low Voltage Alarm:
11.2V±0.3V
Overload/short Circuit Protection:
Yes
Relative Humidity:
<90%RH
Packaging Details:
Paper Box
Highlight:

12v To 220v Solar Charge Inverter

,

1000va 1000w Mppt Solar Inverter

,

1000va Modified Sine Wave Power Inverter

Product Description

1000va 1000w Modified Sine Wave Power Inverter MPPT Solar Photovoltaic Inverter 12v To 220v


>>>Product Description


What is feature of 1000va 1000w modified sine wave power inverter MPPT solar photovoltaic inverter 12v To 220v ?

1.Built-in PWM solar controller
2.Modified sine waveform output 12V 1000VA/1500VA
3.Big LED display screen

4.This series is to control the inverter machine,the external battery is more convenient,flexible according to the needs of customers

5.This series of system cover home system 100W to 1000W power,is the preferred choice of high lift configuration system

6.DC output:12V(24V),5V,LED lamp with a camera,mobile phone charging



12v To 220v Solar Charge Inverter 1000va 1000w Modified Sine Wave Power Inverter 0


>>>Product Specifications


Model SUS-1000AL+PWM
The built-in controller 15A
Featured solar panel specifications 500-600W/60V
External battery 12V100Ah~150Ah
Output voltage of USB 5.0 +/-0.3V
Output voltage of the inverter AC 220V+/-5%
Maximum continuous power 600W
Peak power 1000W
No load current <0.5A
DC input voltage DC9.7V~15.5V
Output frequency 50 +/-3Hz
Conversion efficiency >90%
High pressure cut off 15V+/-0.5V
Low voltage alarm 11.2V+/-0.3V
Low cut 10V+/-0.3V
Overload, short circuit protection There are
Output waveform Fixed wave
Cooling mode Fan cooled
Working environment temperature -20℃~+70℃
Relative humidity <90%RH


>>>Our Factory

With over a decade of expertise in solar energy solutions, we are a leading manufacturer specializing in photovoltaic products. Our facility produces high-performance solar power inverters, AGM/GEL lead-acid battery chargers, and solar charge controllers, offering comprehensive solutions for residential and commercial applications . Sunchonglic products deliver cutting-edge technology with a proven track record of reliability.

For detailed product specifications , please contact our professional team for prompt assistance!


>>>Production Process


12v To 220v Solar Charge Inverter 1000va 1000w Modified Sine Wave Power Inverter 1

>>>FAQ


Q1. Are you the factory manufacturer?
A1. We are doing the Solar Energy Photovoltaic Products for over 20 years.
We are the original manufacturer and developer of advanced Solar Energy Photovoltaic
Product,including hybrid solar inverter, power inverter,battery chargers,solar controller,
and solar system,etc.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T,Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and
Mid East etc.


Our products are widely recognized and trusted by our clients and can meet continuously
changing economic and social needs.
We would sincerely welcome new and old customers from over the world to visit and
contact us for future business relationships and mutual success!
