60A MPPT Solar Charge Controller with 180V Max PV Input and Temperature Compensation for Commercial Systems

60A MPPT Solar Charge Controller with 180V Max PV Input and Temperature Compensation for Commercial Systems

Brand Name:	Sunchonglic
Model Number:	MPPT-60A(12V-60V)
MOQ:	100pcs
Price:	US $11.15-178.34
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

12v 24v 48v 60v Auto 60A 60 Amp Charge Controller Max PV 180V Mppt Solar Charger Controller

The Charging Current Is Adjustable:

0-60A 0-80A

Direct Charging Current Output Function:

DC Continuous Output 40A

Working Environment Temperature:

-20'C~40℃

Altiude:

0~3000m

Gel:

12V/24V/48V/60V

Packaging Details:

Paper Box

Highlight:

60v 60 amp mppt charge controller

Auto 60 amp mppt charge controller

Solar Systems mppt charge regulator

Product Description

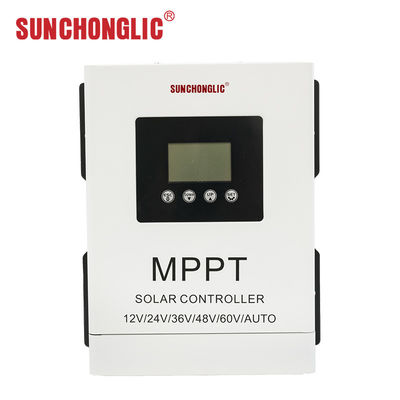

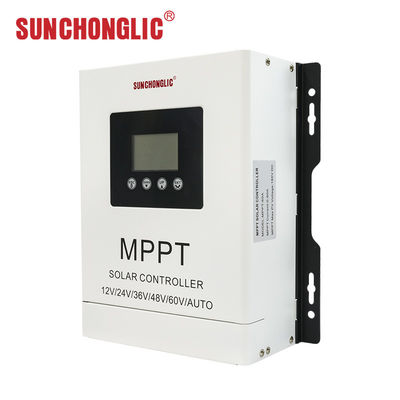

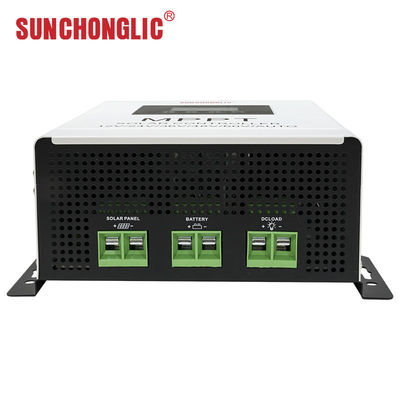

60V Auto 60 Amp MPPT Charge Controller for Commercial Solar Systems

Advanced 12V/24V/48V/60V Auto 60A MPPT solar charge controller with maximum PV input of 180V, designed for efficient commercial solar system applications.

Product Features

Innovative Maximum Power Point Tracking technology with up to 97% conversion efficiency
Rapid I-V curve scanning for optimal power point tracking
Designed specifically for off-grid solar system battery charging and discharging
Advanced temperature compensation regulation mechanism
Compatible with sealed, gel, and open lead-acid batteries, plus lithium battery series
Automatic protection against overcharge, overdischarge, overload, and short circuits

Technical Specifications

Model	60A/80A
Charging Mode	MPPT automatic maximum power tracking
Charging Method	MPPT maximum power tracking, fast charge, balanced charge, and float charge
Battery Type	Lead Acid (12V/24V/48V/60V Auto+Adjustable 12V/24V/48V/60V) Gel (12V/24V/48V/60V) LiFePO4 (Single voltage 3.2* number of strings, 2-45 strings adjustable) Li-ion (Single voltage 3.7* number of strings, 2-45 strings adjustable) USER (Adjustable limit voltage for equal charge, float charge and DC discharge: 8V-170V)
Lithium Battery Activation	With photovoltaic input, provides charging voltage to activate lithium battery; can be used without battery DC output
PV Maximum Open Circuit Input Voltage	0-180V
Charging Current Adjustable	0-60A / 0-80A
Start Charging	PV voltage greater than battery voltage +3V (low current charging on rainy days)
Direct Charging Current Output	DC continuous output 40A
Temperature Compensation	Automatically compensates charging voltage and current based on battery temperature to extend battery life
Working Environment Temperature	-20℃ to 40℃
Protection Level	IP21
Altitude	0-3000m
Product Size	218x265x100mm

Manufacturer Profile

We are an established manufacturer of Solar Energy Photovoltaic Products with decades of experience. Our factory produces Solar Power Inverters, AGM/GEL Lead Acid Battery Chargers, Solar Charge Controllers, and related equipment. Sunchonglic brand products represent quality and reliability for your solar energy needs.

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced solar energy products including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Tell us your specific requirements, and we will recommend the most suitable product for your application.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

What price terms can you offer?

We can accommodate EXW, FOB, CIF, and various other international trade terms.

Where is your main market?

Our Sunchonglic brand products are widely exported to Southeast Asia, Africa, the Middle East, and other global markets.

Our products are widely recognized and trusted by clients worldwide, meeting continuously evolving economic and social needs. We sincerely welcome new and existing customers to contact us for future business relationships and mutual success!
