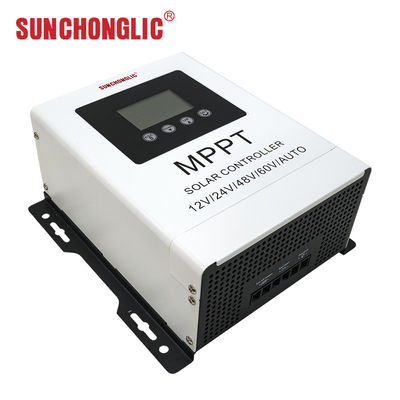

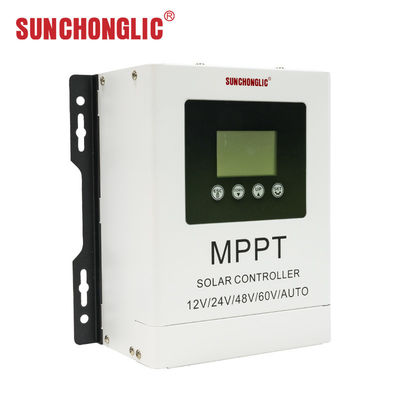

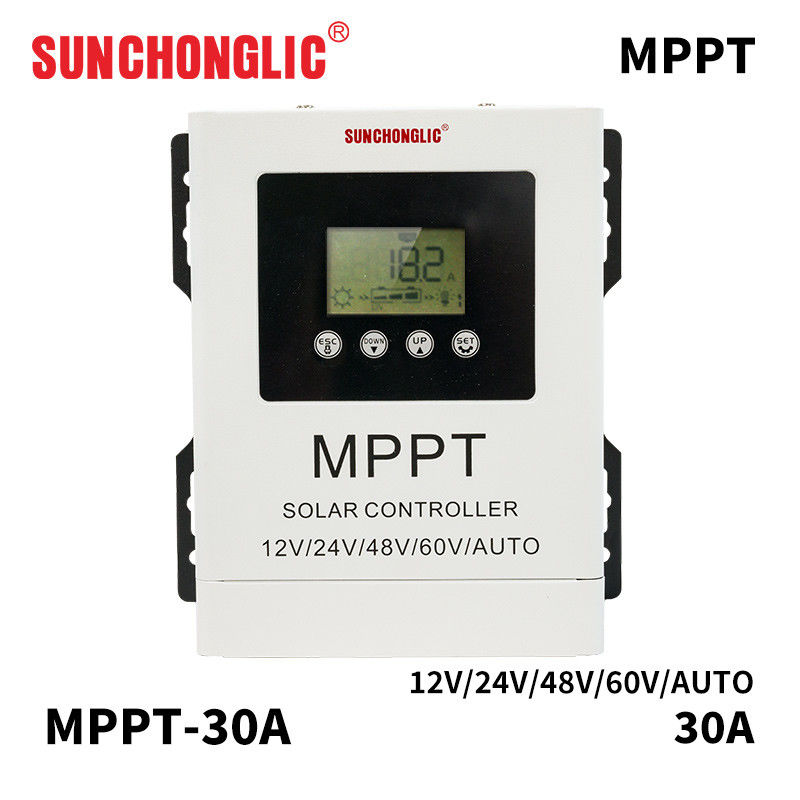

180V DC Output 30A MPPT Solar Charge Controller with Automatic Maximum Power Tracking

180V DC Output 30A MPPT Solar Charge Controller with Automatic Maximum Power Tracking

Brand Name:	Sunchonglic
Model Number:	MPPT-30A(12V-60V)
MOQ:	100pcs
Price:	US $11.15-178.34
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

30A Mppt Charger Mppt Solar Charge Controller 180V DC Output 20A 12V 24V 48V 60V

Lead Acid:

（12V/24V/48V/60VAuto+Adjustable 12V/24V/48V/60V)

Charging Mode:

MPPT Automatic Maximum Power Tracking

PV Maximum Open Circuit Input Voltage:

0-180V

The Charging Current Is Adjustable:

0-30A 0-40A

Direct Charging Current Output Function:

DC Continuous Output 20A

Packaging Details:

Paper Box

Highlight:

180VDC 30 Amp Solar Charge Controller

Automatic 30 Amp Solar Charge Controller

180VDC 30 amp mppt charge controller

Product Description

180VDC Output 30 Amp Solar Charge Controller

Advanced MPPT solar charge controller with 180V DC output and 30A charging capacity, designed for efficient solar energy utilization across multiple battery systems.

Product Features

Compatible with 12V/24V/48V/60V battery systems
Maximum MPPT PV array operating voltage: 180V DC
Advanced maximum power point tracking technology with up to 97% conversion efficiency
Rapid I-V curve scanning for optimal power point tracking
Supports multiple battery types: sealed, colloidal, open-type lead-acid, and lithium batteries
Comprehensive protection against overcharge, overdischarge, overload, and short circuits

Technical Specifications

Model	30A/40A
Charging Mode	MPPT automatic maximum power tracking
Charging Method	MPPT tracks maximum power, fast charge, balanced charge, and float charge
Battery Types	Lead Acid: 12V/24V/48V/60V Auto+Adjustable Gel: 12V/24V/48V/60V LifePo4: Single voltage 3.2* number of strings (2-45 strings adjustable) Li-ion: Single voltage 3.7* number of strings (2-45 strings adjustable) USER: Adjustable limit voltage for equal charge, float charge and DC discharge: 8V-170V
Lithium Battery Activation	With photovoltaic input, provides charging voltage to activate lithium battery; can be used without battery DC output
PV Maximum Open Circuit Input Voltage	0-180V
Charging Current Adjustable	0-30A / 0-40A
Start Charging	PV voltage greater than +3V of battery voltage (low current charging on rainy days)
Direct Charging Current Output	DC continuous output 20A
Temperature Compensation	Automatically compensates charging voltage and current based on battery temperature to extend battery life
Working Environment Temperature	-20°C to 40°C
Protection Level	IP21
Altitude	0-3000m
Product Size	202x215x100mm / 218x265x100mm

Manufacturing Excellence

As a leading producer of solar photovoltaic solutions with extensive industry experience, our facility specializes in manufacturing premium-grade equipment including solar inverters, AGM/GEL battery charging systems, and advanced charge controllers. Opting for Sunchonglic-branded solutions ensures reliable performance for your energy needs. Our technical team provides customized energy configurations with detailed installation guidelines and responsive after-sales support.

Production Process

Frequently Asked Questions

Q1. Are you the factory manufacturer?

With over two decades of expertise, we specialize in manufacturing and developing innovative solar photovoltaic solutions as an original equipment producer. Our product portfolio encompasses hybrid inverters, power conversion systems, charge controllers, energy storage solutions, and comprehensive solar power systems designed for optimal performance.

Q2. How to select a suitable product?

Tell us your demand, and we will recommend a suitable solution for you.

Q3. What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

Q4. What price terms can you offer?

We can accept EXW, FOB, CIF and other international trade terms.

Q5. Where is your main market for your products?

Most of our Sunchonglic brand products are exported to Southeast Asia, Africa, and the Middle East.

Our offerings have earned widespread recognition and trust from clients globally, effectively adapting to evolving economic and social demands. We extend a warm invitation to both new and existing partners worldwide to collaborate with us, fostering mutually beneficial relationships that drive shared success!
