230V DC Input 80A MPPT Solar Charge Controller with Multiple Battery Compatibility

230V DC Input 80A MPPT Solar Charge Controller with Multiple Battery Compatibility

Brand Name:	Sunchonglic
Model Number:	MPPT-80A(12V-96V)
MOQ:	100pcs
Price:	US $11.15-178.34
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

230V DC 12V 24V 36V 48V 60V 72V 84V 96V 80A MPPT Solar Charge Controller

Direct Charging Current Output Function:

DC Continuous Output 100A

Charging Mode:

MPPT Automatic Maximum Power Tracking

The Charging Current Is Adjustable:

0-80A 0-100A

Lead Acid:

（12V/24V/48V/60VAuto+Adjustable 12V/24V/48V/60V)

PV Maximum Open Circuit Input Voltage:

0-230V

Packaging Details:

Paper Box

Highlight:

230VDC 80A MPPT Solar Charge Controller

Anticorrosive 80A MPPT Solar Charge Controller

230VDC Mppt 80 Amp Charge Controller

Product Description

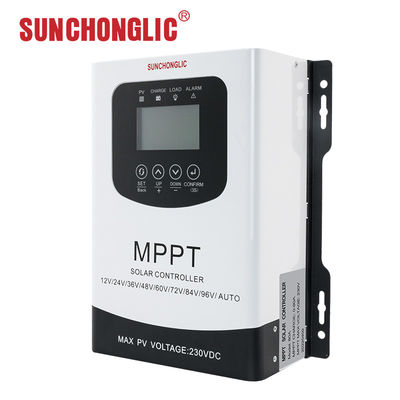

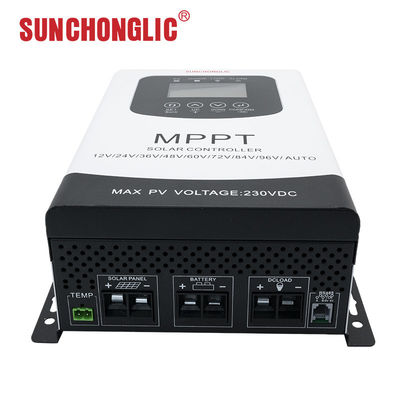

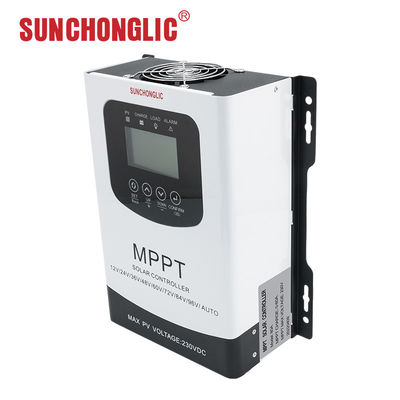

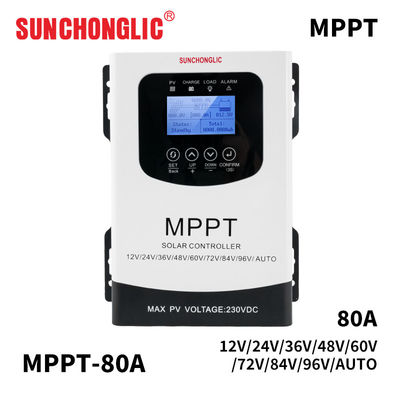

Anticorrosive 230VDC 80A MPPT Solar Charge Controller

230V DC MPPT Solar Charge Controller compatible with 12V, 24V, 36V, 48V, 60V, 72V, 84V, and 96V battery systems.

Product Features

Manually adjustable charging current
Multiple charging and discharging protection systems
Designed for 12V/24V/36V/48V/60V/72V/84V/96V DC systems
Maximum PV array open circuit voltage: 230V DC
Supports up to 96V lead acid batteries
Supports up to 45 cells LiFePO4 batteries

Technical Specifications

Model	80A/100A
Charging Mode	MPPT automatic maximum power tracking
Charging Method	MPPT tracks maximum power, fast charge, balanced charge, and float charge
Battery Type Support	Lead Acid: 12V/24V/36V/48V/96V Auto+Adjustable Gel: 12V/24V/36V/48V/60V/72V/84V/96V LiFePO4: Single voltage 3.2V × number of strings (2-45 strings adjustable) Li-ion: Single voltage 3.7V × number of strings (2-45 strings adjustable) USER: Adjustable limit voltage for equal charge, float charge and DC discharge: 8V-170V
Lithium Battery Activation	With photovoltaic input, provides charging voltage to activate lithium batteries; can be used without battery DC output
PV Maximum Open Circuit Input Voltage	0-230V
Charging Current Adjustment	0-80A / 0-100A
Start Charging Condition	PV voltage is greater than battery voltage + 3V (low current charging on rainy days)
Direct Charging Current Output	DC continuous output 100A
Temperature Compensation	Automatically compensates charging voltage and current based on battery temperature to prolong battery life
Display & Communication	LCD display with touch button showing generating capacity, photovoltaic voltage, battery voltage, charging current, power, and operation status Chinese and English display Settings: battery type, charging current, return to factory 8-pin RS485 communication interface for operation status and setting queries
Working Environment Temperature	-20℃ to 40℃
Protection Level	IP21
Altitude	0-3000m

Manufacturing Excellence

Sunchonglic specializes in premium solar solutions, including inverters, AGM/GEL battery systems, and MPPT charge controllers, ensuring reliable energy performance. Our technical team offers customized configurations, installation guidance, and responsive after-sales support.

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

With over two decades of expertise, we specialize in manufacturing and developing innovative solar photovoltaic solutions as an original equipment producer. Our product portfolio encompasses hybrid inverters, power conversion systems, charge controllers, energy storage solutions, and comprehensive solar power systems designed for optimal performance.
How to select a suitable product?

Tell us your demand, and we will recommend a suitable product for you.
What are your payment methods?

We accept T/T, Trade Assurance, and other payment methods.
What price terms can you offer?

We can accept EXW, FOB, CIF and other trade terms.
Where is your main market?

Most of our Sunchonglic brand products are exported to Southeast Asia, Africa, and the Middle East.

Our offerings have earned widespread recognition and trust from clients globally, effectively adapting to evolving economic and social demands. We extend a warm invitation to both new and existing partners worldwide to collaborate with us, fostering mutually beneficial relationships that drive shared success!
