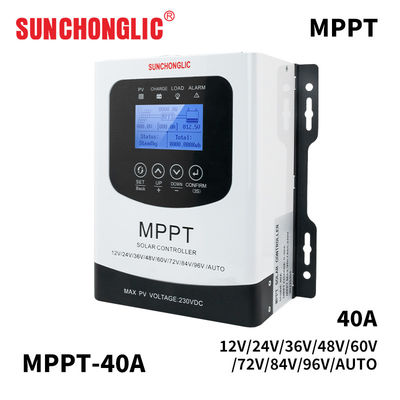

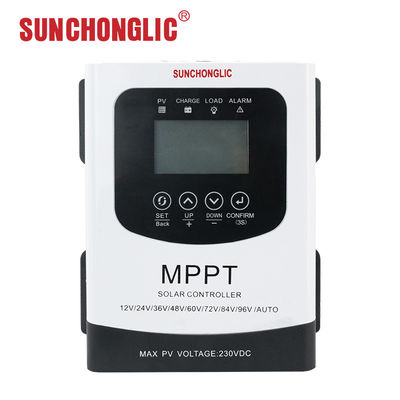

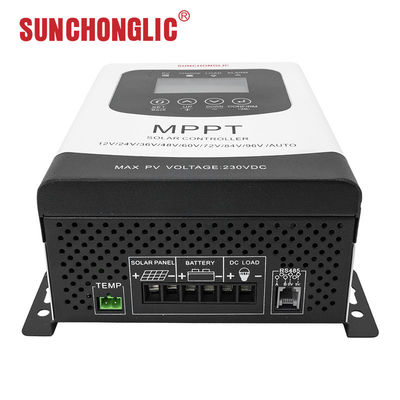

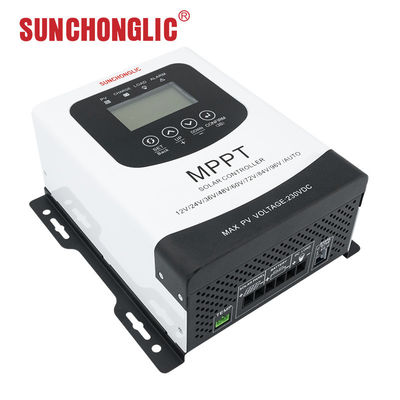

36V MPPT Solar Charge Controller with Adjustable Charging Current and 230V Maximum Input Voltage

36V MPPT Solar Charge Controller with Adjustable Charging Current and 230V Maximum Input Voltage

Brand Name:	Sunchonglic
Model Number:	MPPT 40A
MOQ:	100pcs
Price:	US $11.15-178.34
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Charging Mode:

MPPT Automatic Maximum Power Tracking

The Charging Current Is Adjustable:

0-30A 0-40A

Lead Acid:

（12V/24V/48V/60VAuto+Adjustable 12V/24V/48V/60V)

PV Maximum Open Circuit Input Voltage:

0-230V

Product Name:

12V 24V 36V 48V 60V 72V 84V 96V 40A 230V DC Mppt Solar Charge Controller

Direct Charging Current Output Function:

DC Continuous Output 100A

Packaging Details:

Paper Box

Highlight:

Recyclable 36V MPPT Solar Charge Controller

Household 36V MPPT Solar Charge Controller

Recyclable DC Solar Charge Controller

Product Description

Recyclable 36V MPPT Solar Charge Controller

Advanced 40A 230V DC MPPT solar charge controller compatible with 12V, 24V, 36V, 48V, 60V, 72V, 84V, and 96V DC systems for household applications.

Product Features

Manually adjustable charging current for optimal performance
Comprehensive charging and discharging protection systems
Designed for 12V/24V/36V/48V/60V/72V/84V/96V DC systems
Maximum PV array open circuit voltage: 230V DC
Supports up to 96V lead acid batteries
Compatible with up to 45 cells LiFePO4 battery configurations

Technical Specifications

Model	30A/40A
Charging Mode	MPPT automatic maximum power tracking
Charging Method	MPPT tracks maximum power, fast charge, balanced charge, and float charge
Battery Types	Lead Acid: 12V/24V/36V/48V/96V Auto+Adjustable Gel: 12V/24V/36V/48V/60V/72V/84V/96V LifePo4: Single voltage 3.2* numbers of strings (2-45 strings adjustable) Li-ion: Single voltage 3.7* numbers of strings (2-45 strings adjustable) USER: Adjustable limit voltage for equal charge, float charge and DC discharge: 8V-170V
Lithium Battery Activation	With photovoltaic input, provides charging voltage to activate lithium battery, can be used without battery DC output
PV Maximum Open Circuit Input Voltage	0-230V
Charging Current Adjustment	0-30A / 0-40A
Start Charging Condition	PV voltage greater than +3V of battery voltage (low current charging on rainy days)
Direct Charging Current Output	DC continuous output 25A
Temperature Compensation	Automatically compensates charging voltage and current based on battery temperature to extend battery life
Display & Communication	LCD display with touch button showing generating capacity, photovoltaic voltage, battery voltage, charging current, power, and operation status Chinese and English display options Settings for battery type, charging current, and factory reset 8-pin RS485 communication interface for status queries and settings
Working Environment Temperature	-20℃ to 40℃
Protection Level	IP21
Altitude	0-3000m
Product Size	202215100 mm

Manufacturing Excellence

As an established manufacturer with extensive experience in solar PV products, our factory specializes in producing solar inverters, AGM/GEL battery chargers, and solar controllers. Choosing Sunchonglic brand products ensures quality and reliability.

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

With over two decades of expertise, we specialize in manufacturing and developing innovative solar photovoltaic solutions as an original equipment producer. Our product portfolio encompasses hybrid inverters, power conversion systems, charge controllers, energy storage solutions, and comprehensive solar power systems designed for optimal performance.

How to select a suitable product?

Tell us your requirements, and we will recommend the most suitable solution for your needs.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

What price terms can you offer?

We can accommodate EXW, FOB, CIF, and various other international trade terms.

Where is your main market?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, the Middle East, and other global markets.

Our comprehensive product range has earned international recognition and trust, effectively addressing evolving economic and societal energy requirements. We welcome both new and established global partners to collaborate with us, fostering mutually beneficial relationships that drive shared success!
