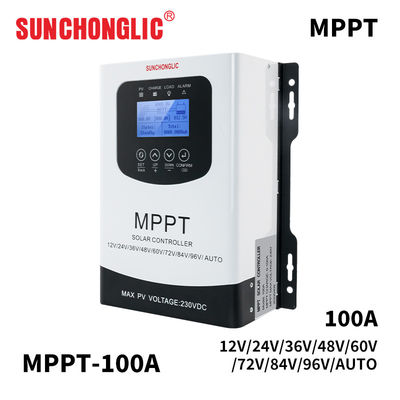

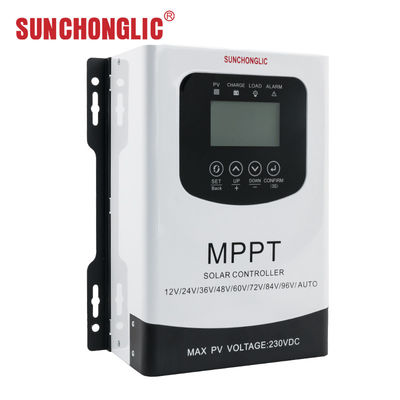

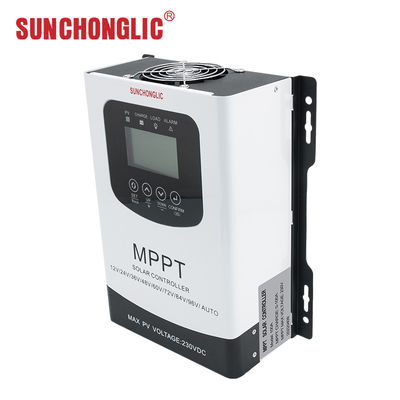

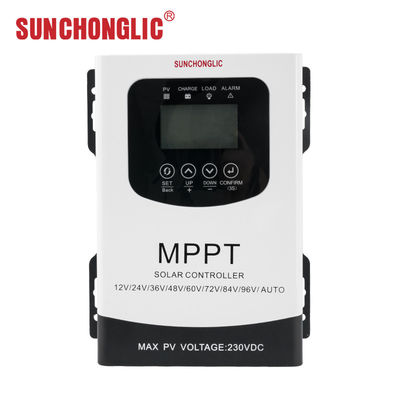

100A MPPT Solar Charge Controller with Automatic Tracking and RS485 Communication Interface for Efficient Solar Panel Regulation

100A MPPT Solar Charge Controller with Automatic Tracking and RS485 Communication Interface for Efficient Solar Panel Regulation

Brand Name:	Sunchonglic
Model Number:	MPPT-100A(12V-96V)
MOQ:	100pcs
Price:	US $11.15-178.34
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Mppt Solar Panel Regulator Charge Controller 12V 24V 36V 48V 60V 72V 84V 96V 100A Solar Charger Controller

Display Communication:

8-pin RS485 Communication Interface(operation Status And Setting Can Be Queried)

Working Environment Temperature:

Working Environment Temperature

The Charging Current Is Adjustable:

0-100A 0-120A

Charging Mode:

MPPT Automatic Maximum Power Tracking

Gel:

12V/24V/36V/48V/60V/72V/84V/96V

Packaging Details:

Paper Box

Highlight:

Versatile Solar Panel Regulator Charge Controller

60V Solar Panel Regulator Charge Controller

60V 100a mppt charge controller

Product Description

Versatile Solar Panel Regulator Charge Controller 60V 100A MPPT

Advanced MPPT solar panel regulator charge controller compatible with 12V, 24V, 36V, 48V, 60V, 72V, 84V, and 96V systems. This 100A solar charger controller delivers optimal performance for off-grid solar applications.

Key Features

Designed for off-grid solar system battery charging and discharging
Temperature compensation regulatory mechanism
Built-in Lithium battery activation function
Integrated solar data communication monitoring interface (RS485)
Advanced Maximum Power Point Tracking algorithm
Multiple charging and discharging protection systems

Technical Specifications

Model	100A/200A
Charging Mode	MPPT automatic maximum power tracking
Charging Method	MPPT tracks maximum power, fast charge, balanced charge, and float charge
Battery Type	Lead Acid: 12V/24V/36V/48V/96V Auto+Adjustable 12V/24V/36V/48V/60V/72V/84V/96V Gel: 12V/24V/36V/48V/60V/72V/84V/96V LifePo4: Single voltage 3.2* numbers of strings (2 strings-45 strings adjustable) Li-ion: Single voltage 3.7* numbers of strings (2 strings-45 strings adjustable) USER: Adjustable limit voltage for equal charge, float charge and DC discharge: 8V-170V
Lithium Battery Activation	With photovoltaic input, there is charging voltage (activate lithium battery), can be used without battery DC output
PV Maximum Open Circuit Input Voltage	0-230V
Charging Current Adjustment	0-100A 0-120A
Start Charging	PV voltage is greater than +3V of battery voltage (low current charging on rainy days)
Direct Charging Current Output	DC continuous output 100A
Temperature Compensation	Automatically compensates charging voltage and current based on battery temperature to extend battery life
Display & Interface	LCD display with touch button showing generating capacity, photovoltaic voltage, battery voltage, charging current, power, and operation status
Language Support	Chinese and English display
Settings	Battery type, charging current, return to factory
Display Communication	8-pin RS485 communication interface (operation status and setting can be queried)
Working Environment Temperature	-20℃ to 40℃
Protection Level	IP21
Altitude	0-3000m

Manufacturer Profile

As a leading manufacturer in the solar photovoltaic sector with substantial industry expertise, our facility specializes in producing high-quality apparatus including solar inverters, AGM/GEL battery charging systems, and advanced charge controllers. Sunchonglic-branded products ensure reliable operation for all your energy requirements.

Our specialized technical team provides customized energy solutions, complete with comprehensive installation instructions and responsive post-sales support.

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

With over two decades of expertise, we specialize in manufacturing and developing innovative solar photovoltaic solutions as an original equipment producer. Our product portfolio encompasses hybrid inverters, power conversion systems, charge controllers, energy storage solutions, and comprehensive solar power systems designed for optimal performance.

How to select a suitable product?

Tell us your requirements, and we will recommend the most suitable product for your application.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

What price terms can you offer?

We can accommodate EXW, FOB, CIF, and other international trade terms.

Where is your main market?

Most of our Sunchonglic brand products are exported to Southeast Asia, Africa, and the Middle East.

Our offerings have earned widespread recognition and trust from clients globally, effectively adapting to evolving economic and social demands. We extend a warm invitation to both new and existing partners worldwide to collaborate with us, fostering mutually beneficial relationships that drive shared success!
