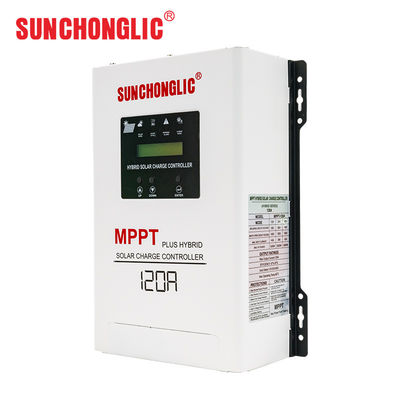

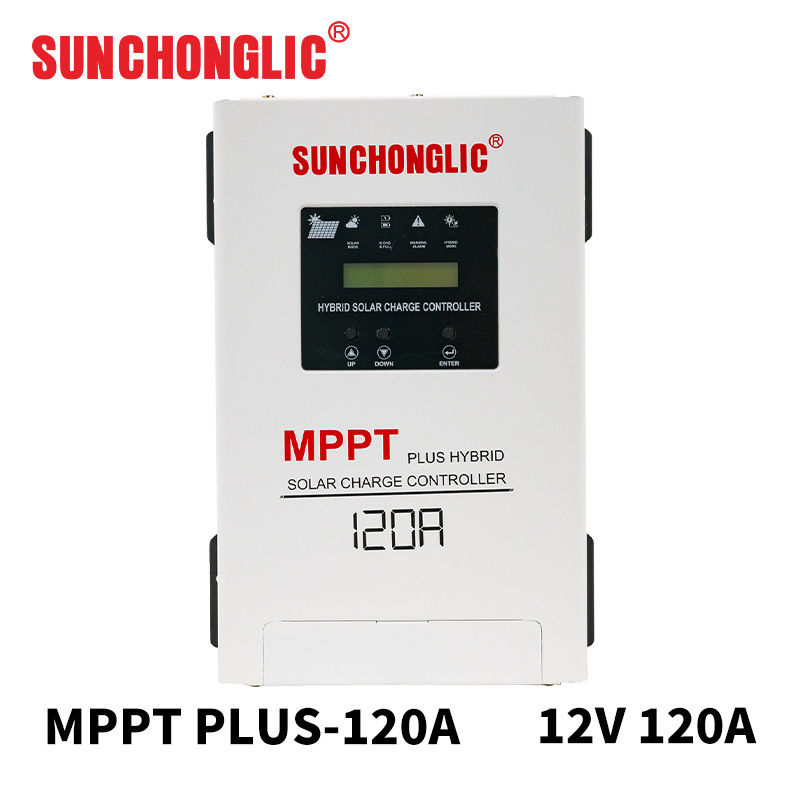

120A 12V/24V/48V Auto MPPT Hybrid Solar Charge Controller with UPS Function

120A 12V/24V/48V Auto MPPT Hybrid Solar Charge Controller with UPS Function

Brand Name:	Sunchonglic
Model Number:	MPPT-120A
MOQ:	100pcs
Price:	US $11.15-178.34
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

12V 24V 48V AUTO MPPT 120A MPPT Hybrid Solar Charge Controller

Battery System Voltage:

12V/24V/48V

Solar Reverse Polarity Protection:

Field Effect Transistor

Maximum Charging Current:

120

Maximum Photovoltaic Power:

Max 1500W For 12V System, Max 3000W For 24V System, Max 6000W For 48V System.

Reverse Battery Protection:

None (reverse Connection Will Cause Damage To The Machine)

Packaging Details:

Paper Box

Highlight:

12v MPPT solar charge controller

24v hybrid solar controller 120a

48v auto MPPT charge controller

Product Description

MPPT 120A Hybrid Solar Charge Controller

12V/24V/48V AUTO MPPT 120A MPPT Hybrid Solar Charge Controller designed for reliable and efficient energy storage in residential, commercial, and off-grid applications.

Product Features

Compatible with 12V, 24V, and 48V battery systems for versatile applications
Maximum PV array input voltage of 180V DC for optimal performance with high-power solar panels
Built-in uninterrupted power supply (UPS) ensures continuous power during grid outages
Integrated DC loads output for direct connection to DC-powered devices
Supports up to 1500W for 12V, 3000W for 24V, and 6000W for 48V systems
Cost-effective solar compensatory system that reduces utility bills and grid reliance

Technical Specifications

Model	MPPT-120A
Battery System Voltage	12V/24V/48V
Reverse Battery Protection	None (reverse connection will cause damage to the machine)
Solar Input Voltage Range	24-130V
Solar Reverse Polarity Protection	Field Effect Transistor
Maximum Charging Current	120A
Maximum Photovoltaic Power	Max 1500W for 12V system, Max 3000W for 24V system, Max 6000W for 48V system
Conversion Efficiency	87-94%
Battery Type Compatibility	Lithium iron phosphate battery (set to 14.6V) and Ternary lithium battery (set to 12.6V)

Manufacturer Information

We are a manufacturer of Solar Energy Photovoltaic Products with many years of experience. Our factory produces Solar Power Inverters, AGM/GEL Lead Acid Battery Chargers, Solar Charge Controllers, and complete solar systems. Sunchonglic brand products are reliable choices for your energy needs.

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced solar products including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Tell us your requirements and we will recommend the most suitable product for your needs.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

What price terms can you offer?

We can accommodate EXW, FOB, CIF, and other international trade terms.

Where is your main market?

Our Sunchonglic brand products are exported worldwide, with strong presence in Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by clients worldwide, meeting continuously changing economic and social needs. We welcome new and existing customers to contact us for future business relationships and mutual success!
