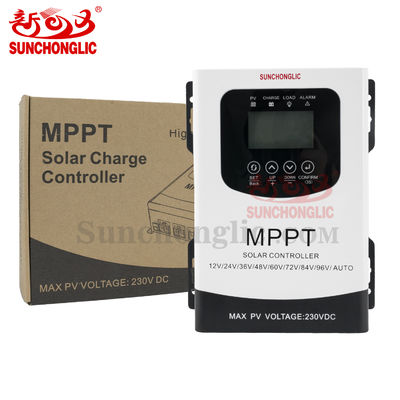

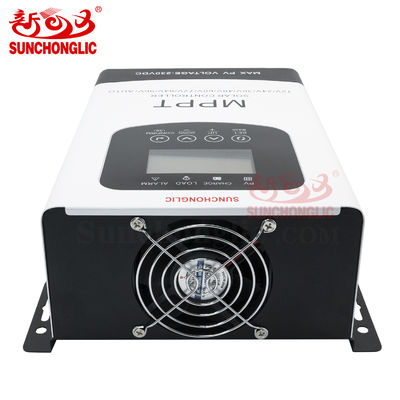

12V-96V 50A MPPT Solar Charge Controller with 230V DC Input for Lead Acid and LiFePO4 Batteries

12V-96V 50A MPPT Solar Charge Controller with 230V DC Input for Lead Acid and LiFePO4 Batteries

Brand Name:	Sunchonglic
Model Number:	MPPT-50A(12V-96V)
MOQ:	100pcs
Price:	US $11.15-178.34
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

12V-96V 50A MPPT Charger Controller MPPT Solar Charge Controller

Working Environment Temperature:

-20℃-40℃

Charging Mode:

MPPT Automatic Maximum Power Tracking

The Charging Current Is Adjustable:

0-30A 0-40A 0-50A 0-60A 0-100A 0-120A

Lead Acid:

（12V/24V/48V/60VAuto+Adjustable 12V/24V/48V/60V)

PV Maximum Open Circuit Input Voltage:

0-230V

Packaging Details:

Paper Box

Highlight:

12v-96v MPPT solar charge controller

50a MPPT charger controller

MPPT solar controller with warranty

Product Description

12V-96V 50A MPPT Charger Controller

Advanced MPPT solar charge controller designed for efficient power management across multiple battery systems and voltage configurations.

Key Features

Manual charging current regulation for precise control over charging process
Multiple charging and discharging protections including overcharge, over-discharge, and short-circuit protection
Compatible with 12V/24V/36V/48V/60V/72V/84V/96V DC systems
Maximum PV array open circuit voltage 230V DC
Supports maximum 96V lead acid batteries
Compatible with up to 45 cells LiFePO4 batteries

Technical Specifications

Model	30A/40A	50A/60A	100A/200A
Charging Mode	MPPT automatic maximum power tracking
Charging Method	MPPT tracks maximum power, fast charge, balanced charge, and float charge
Battery Type	Lead Acid: 12V/24V/36V/48V/96V Auto+Adjustable Gel: 12V/24V/36V/48V/60V/72V/84V/96V LifePo4: Single voltage 3.2* numbers of strings (2 strings-45 strings adjustable) Li-ion: Single voltage 3.7* numbers of strings (2 strings-45 strings adjustable) USER: Adjustable limit voltage for equal charge, float charge and DC discharge: 8V-170V
With lithium battery activation function	With photovoltaic input, there is charging voltage (activate lithium battery), can be used without battery DC output
PV Maximum Open Circuit Input Voltage	0-230V
Charging Current Adjustable	0-30A 0-40A	0-50A 0-60A	0-100A 0-120A
Start Charging	PV voltage is greater than +3V of battery voltage (low current charging on rainy days)
Direct Charging Current Output Function	DC continuous output 25A	DC continuous output 60A	DC continuous output 100A
Temperature Compensation	Automatically compensates charging voltage and current based on battery temperature to prolong battery life
Display Communication	LCD display with touch button: generating capacity/photovoltaic voltage/battery voltage/charging current/power/operation status Chinese and English display Setting: battery type, charging current, return to factory 8-pin RS485 communication interface (operation status and setting can be queried)
Working Environment Temperature	-20℃ to 40℃
Protection Level	IP21
Altitude	0-3000m
Product Size	202x215x100mm	218x265x100mm	/

Manufacturing Excellence

With extensive experience in the solar energy photovoltaic sector, our factory specializes in producing high-quality solar power inverters, AGM/GEL lead-acid battery chargers, solar charge controllers, and other innovative energy solutions. Choose Sunchonglic for reliable quality and outstanding value.

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

With over 20 years of experience, we lead as an OEM in innovative solar PV technology, offering hybrid inverters, power conversion equipment, charge controllers, energy storage, and complete solar kits, all designed for maximum efficiency.

How to select a suitable product?

Tell us your requirements, and we will recommend the most suitable product for your needs.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

What price terms can you offer?

We can accommodate EXW, FOB, CIF, and various international trade terms.

Where is your main market?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, Middle East, and other global markets.
