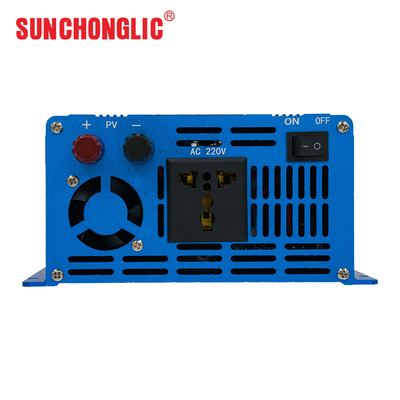

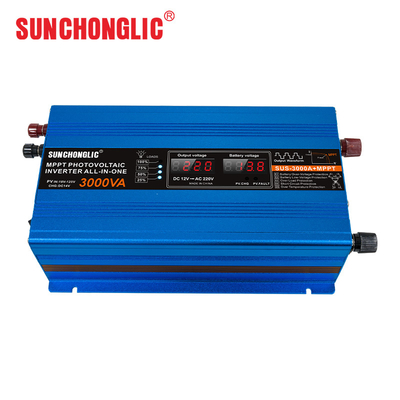

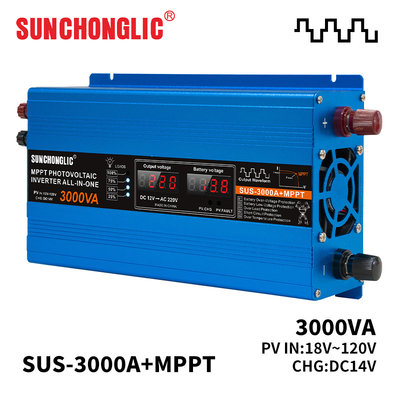

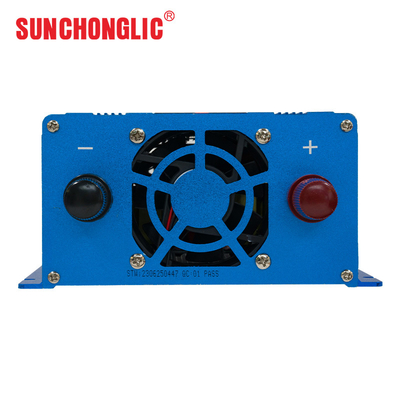

3000w solar power inverter with mppt dc to ac converter 12v to 220v modified sine wave output

3000w solar power inverter with mppt dc to ac converter 12v to 220v modified sine wave output

Brand Name: Sunchonglic
Model Number: SUS-3000A+MPPT
MOQ: 5pcs
Price: US $53.85 - 60.00
Payment Terms: T/T
Supply Ability: 100000pcs/mon
Detail Information
Place of Origin:
China
Product Name:
3000W Solar Power Inverter With MPPT DC To AC Converter 12V To 220V Modified Sine Wave Output
Maximum Continuous Power:
1500W
Conversion Efficiency:
>90%
Featured Solar Panel Specifications:
100~200W/36V∗2
The Built-in Controller:
25A~30A
Peak Power:
4000W
Packaging Details:
Paper Box
Product Description

3000W Solar Power Inverter with MPPT DC to AC Converter 12V to 220V Modified Sine Wave Output


>>>Product Description


What is feature of 3000w solar power inverter with mppt dc to ac converter 12v to 220v modified sine wave output ?

  1. This product line is designed to manage the inverter unit, with an external battery offering greater portability and adaptability to meet diverse customer requirements.

  2. This series encompasses residential energy systems ranging from 100W to 1000W in capacity, making it the ideal selection for high-performance configured setups.

  3. AC output: 220V supports devices such as computers, televisions, fans, and other household appliances.

  4. DC output: 12V(24V) and 5V options, suitable for LED lighting, surveillance equipment, and mobile device charging.

  5. Large high-resolution LED display interface.

  6. Modified sine wave output with capacities of 12V 1000VA or 1500VA.



3000w solar power inverter with mppt dc to ac converter 12v to 220v modified sine wave output 0


>>>Product Specifications


Model SUS-3000A+MPPT
The built-in controller 25A~30A
Featured solar panel specifications 100~200W/36V∗2
External battery 12V 100Ah~150Ah
Output voltage of the inverter AC 220V±5%
Maximum continuous power 1500W
Peak power 4000
No losd current <0.5A
DC input voltage DC9.7V~15.5V
Output frequency 50Hz±3Hz
Conversion efficiency >90%
High pressure cut off 15V±0.5V
Low voltage alarm 11.2V±0.3V
Low cut 10V±0.3V
Overload,short circuit protection There wave
Output waveform Tixed wave
Cooling mode Fan cooled
Working environment temperature -20℃~+70℃
Relative humidity <90%RH
Overall dimensions 230x127x67mm
The weight of the inverter 1.5kg


>>>Our Factory

With extensive experience in the industry, we specialize in the manufacturing of solar energy photovoltaic products.

Our factory produces a diverse range of equipment, including solar power inverters, AGM/GEL lead-acid battery

chargers, and solar charge controllers, among others.Opting for Sunchonglic brand products ensures reliable and

efficient performance.
For further product details, feel free to reach out to us—we’re happy to assist!


>>>Production Process


3000w solar power inverter with mppt dc to ac converter 12v to 220v modified sine wave output 1

>>>FAQ


Q1. Are you the factory manufacturer?
A1. We are doing the Solar Energy Photovoltaic Products for over 20 years.
We are the original manufacturer and developer of advanced Solar Energy Photovoltaic
Product,including hybrid solar inverter, power inverter,battery chargers,solar controller,
and solar system,etc.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T,Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and
Mid East etc.


Our products are widely recognized and trusted by our clients and can meet continuously
changing economic and social needs.
We would sincerely welcome new and old customers from over the world to visit and
contact us for future business relationships and mutual success!
