70A MPPT Hybrid Solar Charge Controller with UPS Function for 12V/24V/48V Systems

70A MPPT Hybrid Solar Charge Controller with UPS Function for 12V/24V/48V Systems

Brand Name:	Sunchonglic
Model Number:	MPPT-70A
MOQ:	100pcs
Price:	US $11.15-178.34
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

70A MPPT Hybrid Solar Charge Controller With UPS Function - Compatible With 12V/24V/48V

Battery System Voltage:

12V/24V/48V

Solar Reverse Polarity Protection:

Field Effect Transistor

Maximum Charging Current:

70A

Conversion Efficiency:

87-94%

Reverse Battery Protection:

None (reverse Connection Will Cause Damage To The Machine)

Packaging Details:

Paper Box

Highlight:

70a MPPT solar charge controller with UPS

Hybrid solar charge controller 12v/24v/48v

MPPT charge controller with UPS function

Product Description

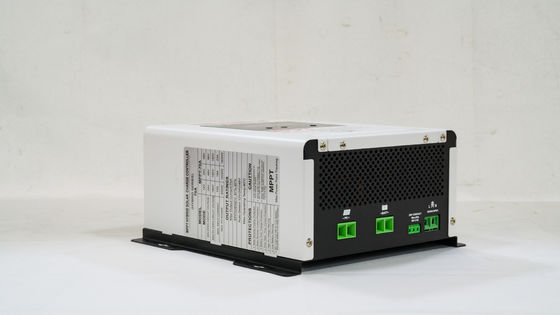

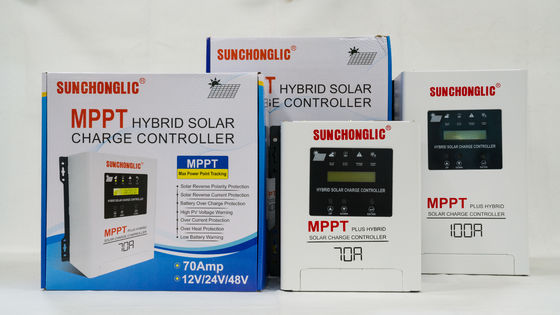

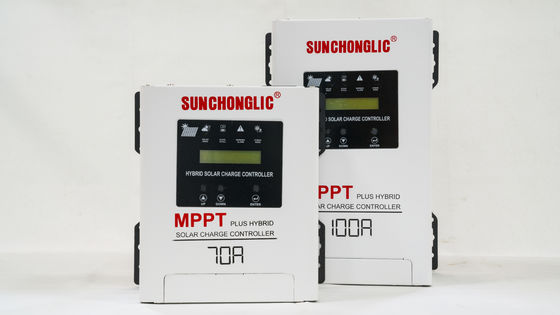

70A MPPT Hybrid Solar Charge Controller with UPS Function

This advanced hybrid solar charge controller combines MPPT technology with UPS functionality, offering seamless power backup and efficient solar energy management for 12V, 24V, and 48V battery systems.

Key Features

Compatible with 12V, 24V, and 48V battery configurations for flexible system integration
Supports maximum photovoltaic input voltage of 180V DC
Integrated uninterruptible power supply (UPS) function for continuous operation during grid outages
Built-in output for DC loads, enabling direct power supply to low-voltage devices
Recommended solar capacity: up to 1500W (12V), 3000W (24V), and 6000W (48V) systems
Highly cost-effective solar compensation solution to significantly reduce household electricity expenses

Technical Specifications

Model	MPPT-70A
Battery System Voltage	12V/24V/48V
Reverse Battery Protection	None (reverse connection will cause damage to the machine)
Solar Input Voltage Range	24-130V
Solar Reverse Polarity Protection	Field Effect Transistor
Maximum Charging Current	70A
Maximum Photovoltaic Power	Max 1500W for 12V system, Max 3000W for 24V system, Max 6000W for 48V system
Conversion Efficiency	87-94%
Battery Type Compatibility	Lithium iron phosphate battery (both items 1 and ② in parameter settings must be set to 14.6V) Ternary lithium battery (both items①and ②in parameter settings must be set to 12.6V)
Charging Voltage	14.6V 12V lead-acid battery/lithium iron phosphate battery: 14.6V 29.2V 24V lead-acid battery: 29.2V
Mains Opening Conditions	<20±2V 12V system: PV voltage<20±2V <40±2V 24V system: PV voltage<40±2V Battery voltage ≤ 11.5V (24V system* 2) default (adjustable range 10-13V) (Enable hybrid charging of mains and solar power)
Mains Power Shutdown Conditions	12V system: PV voltage >24±4V and battery voltage≥14V 24V system: PV voltage>48±4V and battery voltage≥28V Battery voltage ≥14V (24V system*2) default (adjustable range 12.5-16V)
Expansion Port (5A) Switching Conditions	Battery voltage≥10V default (adjustable range 10-14V), C is connected to NC and disconnected from NO ≥11.5V default (adjustable range 10-14V), C is connected to NO and disconnected from NC

Manufacturing Excellence

With decades of experience as a dedicated manufacturer in the solar energy photovoltaic industry, our facility specializes in the design and production of a diverse range of high-performance products—including solar power inverters, AGM/GEL lead-acid battery chargers, and solar charge controllers.

Choosing Sunchonglic brand products means investing in reliable, innovation-driven energy solutions tailored to your needs. Should you have any inquiries or require further details, we welcome you to get in touch with us at your convenience!

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced Solar Energy Photovoltaic Products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and solar systems.

How to select a suitable product?

Tell us your requirements, and we will recommend the most suitable product for your needs.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

What price terms can you offer?

We can accommodate EXW, FOB, CIF, and other international trade terms.

Where is your main market?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, the Middle East, and other global markets.

Our products are widely recognized and trusted by our clients and can meet continuously changing economic and social needs. We would sincerely welcome new and existing customers from around the world to visit and contact us for future business relationships and mutual success!
