Brand Name: | Sunchonglic |
Model Number: | FUP-3000B |
MOQ: | 5pcs |
Price: | US $83.8-288.61 |
Payment Terms: | T/T |
Supply Ability: | 100000pcs/mon |

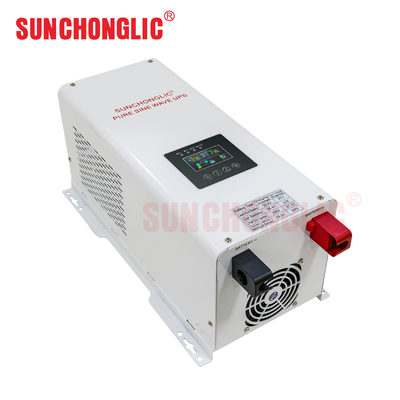

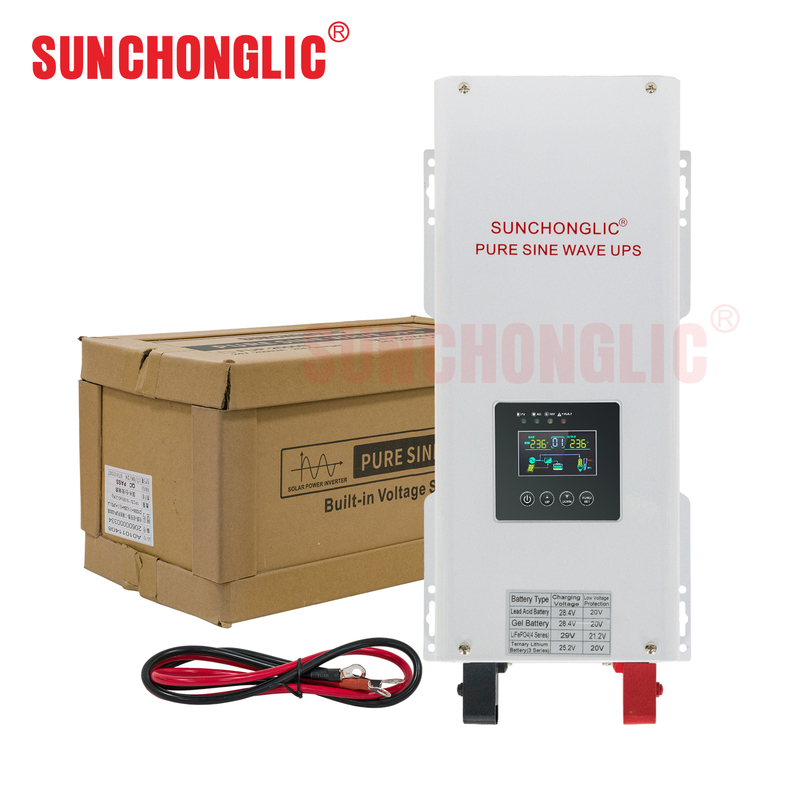

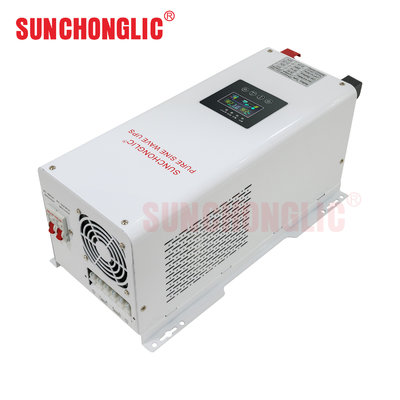

What is feature of 24v 3000va ups pure sine wavesolar power inverter charger?
>>>Product Specifications
Specification | Model | 3000VA |
Power | 2100W | |
Input | Voltage range | AC160-260V |
Frequency range | 50Hz/60Hz | |
Output | AC Voltage Regulation | AC220V±25V |
(Batt.Mode) | ||
Frequency range | 50Hz/60Hz | |
(Batt.Mode) | ||
Waveform | Pure Sine Wave | |
Battery | Battery Type(external) | 24V |
Rated battery voltage | 24VDC(20-32V) | |
Charge Modes | 3 stage;bulk,boost,float | |
Charging current | DC20A | |
Protection | Overload,Overheat,Output high/low voltage,Battery low voltage,Short-circuit,Over-charge,Over-discharge | |
General characteristics | Switch time | 10ms |
Operating Humidity | 10-90% | |
Operating Temperature | 0℃+40℃ | |
Class Protection | IP20 | |
Dimension DxWxH(mm) | 440x228x200 | |
465x320x200 | ||
MPPT(Optional) | PV array Input Voltage | 30V-180V |
Solar charging current | 60A |
With 20 years of expertise in photovoltaic engineering, we deliver IEC/CE-certified renewable energy solutions equipped with intelligent hybrid inverters, adaptive AGM/GEL charging systems, and advanced gel battery storage technology. We offer cost-optimized solar innovations supported by full lifecycle performance guarantees.
For detailed product specifications or customized project consultation, contact our technical team today!
Q1. Are you the factory manufacturer?
A1. We are doing the Solar Energy Photovoltaic Products for over 20 years.
We are the original manufacturer and developer of advanced Solar Energy Photovoltaic
Product,including hybrid solar inverter, power inverter,battery chargers,solar controller,
and solar system,etc.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T and Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and
Mid East etc.
Our products are widely recognized and trusted by our customers for meeting the evolving economic and social needs.We will sincerely welcome new and old customers from around the world to visit and contact us to establish futrue business relationships and achieve mutual success!
