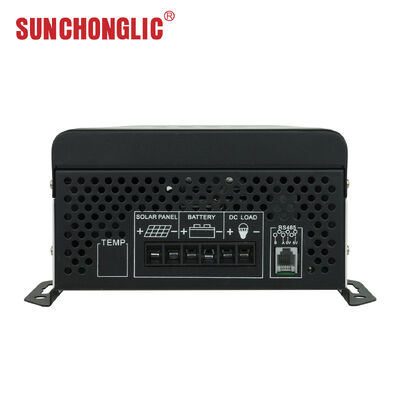

60A MPPT Solar Charge Controller with 230V Maximum Input Voltage and Wide Battery Compatibility

Brand Name:	Sunchonglic
Model Number:	BDZ-60A
MOQ:	100pcs
Price:	US $3.98-27.89
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

60A MPPT Solar Charge Controller 120V High Voltage Input & Wide Battery Compatibility

Charging Current:

30A-60A

Maximum Open-circuit Input Voltage Of Photovoltaic:

230V

DC Output Function:

Continuous Output 20A

Operating Environment Temperature:

-20°C To +40℃

Packaging Details:

Paper Box

Highlight:

60A Charging Current MPPT Solar Charge Controller

230V Maximum Input Voltage Solar Charge Controller

Wide Battery Compatibility MPPT Controller

Product Description

60A MPPT Solar Charge Controller 120V

High Voltage Input & Wide Battery Compatibility

Product Description

Advanced MPPT solar charge controller designed for high-efficiency solar energy harvesting with extensive battery compatibility.

Key Features

MPPT High-Efficiency Charging: Utilizes Maximum Power Point Tracking technology to significantly improve solar charging efficiency
Rated charging current: 60A
Maximum Photovoltaic open-circuit input voltage: 230VDC
Wide Battery Compatibility: Supports Lead-acid, Gel, Lithium batteries with adjustable series count and user-defined settings
LCD Display: Clear screen for viewing multiple system parameters
RS485 Communication: Features RS485 communication port with Modbus protocol for data transfer and remote monitoring

Product Specifications

Standard Voltage Models

Parameter	Specification
MPPT Model	30A-60A
Charging Mode	MPPT Automatic Maximum Power Point Tracking
Charging Method	MPPT Maximum Power Point Tracking, Fast Charging, Constant Voltage, Float Charging
Battery Types	Lead-acid Battery: Automatic recognition 12V, 24V, 48V, settable 12V-120V Gel Battery: Manually settable 12V-120V Lithium Iron Phosphate Battery 3.2V: Adjustable 2S to 45S Lithium-ion Battery 3.7V: Adjustable 25 to 45S User-defined Battery: Manually settable 8V-170V
Lithium Battery Activation	After manual battery type setting, provides charging voltage output with photovoltaic input
Maximum PV Open-circuit Voltage	230V
PV Start Charging	PV input voltage greater than battery voltage + 2V
Charging Current	30A-60A
DC Output Function	Continuous output 20A
Display	LCD display (total power generation, daily power generation, DC output light time control, PV parameters, battery parameters), bilingual
Communication	Modbus protocol via 6-pin RS485 communication port
Operating Temperature	-20°C to +40℃
IP Protection Rating	IP21
Altitude	0-3000m
Dimensions	218165100 mm
Net Weight	1.8 kg
Gross Weight	2.1 kg

High Voltage Models

Parameter	Specification
MPPT Models	30A-40A \| 50A-60A \| 70A-80A \| 100A-120A
Charging Mode	MPPT Automatic Maximum Power Tracking
Battery Types	Lead acid battery: Automatic identification 24V, 48V, settable 24V-240V Gel battery: Manually settable 24V-240V Lithium iron phosphate battery 3.2V: Series number 7S-90S adjustable Ternary lithium battery 3.7V: Series number 7S-90S adjustable User-defined battery: Manually settable 16V-240V
Lithium Activation Function	After manual battery type setting, provides charging voltage output with photovoltaic input
Maximum PV Open-circuit Voltage	490V
PV Start Charging	PV input voltage greater than battery voltage + 2V
Charging Current	30A-40A \| 50A-60A \| 70A-80A \| 100A-120A
DC Output	Constant output 40A \| Continuous output 60A
Display	LCD display (total power generation, daily power generation, DC output light time control, PV parameters, battery parameters), bilingual
Communication	Modbus protocol via 6-pin RS485 communication port
Operating Temperature	-20℃ to +40℃
IP Protection Rating	IP21
Altitude	0-3000m
Dimensions	218165100 mm \| 267178100 mm \| 318222110 mm
Net Weight	1.8 kg \| 2 kg \| 2.5 kg \| 3.75 kg
Gross Weight	2 kg \| 2.3 kg \| 2.85 kg \| 4.2 kg
