25.6V 300AH 7.68kwh Vertical Energy Storage BMS LiFePO4 Battery With LCD

25.6V 300AH 7.68kwh Vertical Energy Storage BMS LiFePO4 Battery With LCD

Brand Name: Sunchonglic
Model Number: SCG-25V300A
MOQ: 5pcs
Price: US $31.05-155.25
Payment Terms: T/T
Supply Ability: 100000pcs/mon
Detail Information
Place of Origin:
China
Product Name:
25.6V 300AH 7.68kwh Vertical Energy Storage BMS LiFePO4 Battery With LCD
Nominal Voltage:
25.6V
Maximum Charging Current:
100A @25±2℃
Communication Mmode:
CAN&RS485
Working Voltage:
21V~29.2V
Altitude Limited:
0-3000m
Packaging Details:
Paper Box
Product Description

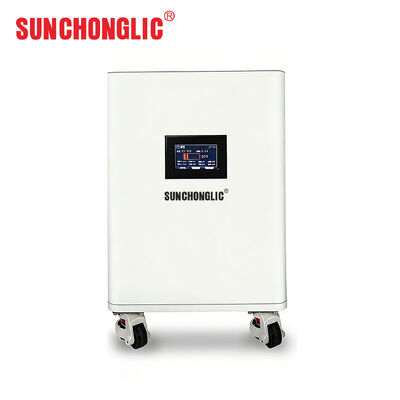

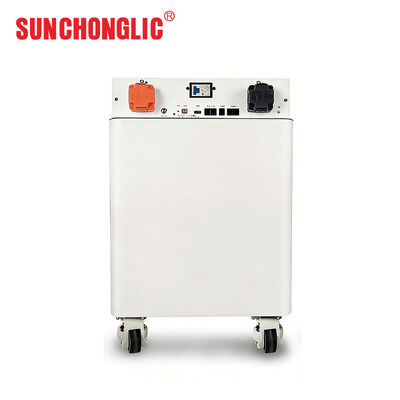

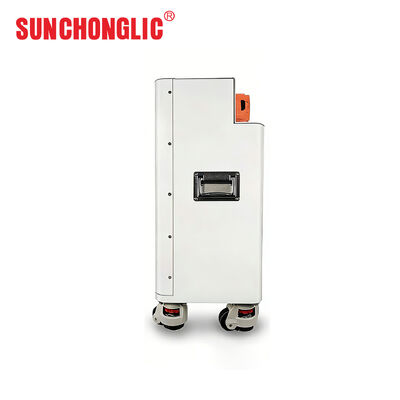

25.6V 300AH 7.68kwh Vertical Energy Storage BMS LiFePO4 Battery With LCD


>>>Product Description


What is feature of 25.6v 300ah 7.68kwh vertical energy storage bms lifepo4 battery with lcd ?

  1. High Energy Capacity & Long Cycle Life:Rated at 7.68 kWh with a cycle life of 6000 cycles at 80% depth of discharge (DOD), ensuring substantial and durable energy storage.

  2. Intelligent and Compatible BMS:Features a smart Battery Management System (BMS) compatible with most mainstream inverter communication protocols (CAN & RS485), allowing for flexible integration.

  3. User-Friendly Interface and Control:Equipped with an LCD screen and supports protocol switching via multiple methods: Bluetooth, the display screen, and a mobile app for convenient monitoring and configuration.

  4. Wide Operational Range:Operates effectively across a broad temperature range (Charging: 0~40°C; Discharging: -20~40°C) and humidity levels (5~95% RH), suitable for various environments.

  5. Robust Design with Portability:Built with a solid IP20 rating for basic protection and features universal pulleys (casters) for easy mobility, despite its substantial weight of 68 kg.

  6. High Power Capability:Supports high charge and discharge currents, with both rated and maximum sustained currents at 100A, enabling powerful and rapid energy transfer.


>>>Product Specifications


Model SCG-25V300AH
Rated Energy (容量) 7.68KWH
Configuration (装配) 1P 8S
Nominal Voltage (标称电压) 25.6V
Working Voltage(工作电压) 21V~29.2V
Nominal Capacity (标称容量) 300Ah
Rated Charge/Discharge Current (标准充放电流) 50/100A @25±2°℃
Maximum Charging Current (最大持续充电电流) 100A @25±2℃
Maximum Discharge Current(最大持续放电电流) 100A @25±2℃
Operation Ttemperature (工作温度) 0~40℃ Charge (充电)
-20~40℃ Discharge (放电)
Humidity (湿度) 5~95%
Altitude Limited (通讯距离) 0~3000m
Weight (重量) 68kg
Dimension (尺寸) 415*270*448mm(L*W*H)
Storage Temperature And Humidity (存放) -10°℃~35℃ Within 1 month (存放一个月)
25±2C Within 3 month(存放三个月)
65%±20%RH
Cycle Life (循环使用寿命) 6000 cycles @25°C (在25℃下循环6000次)
25A Charge/Discharge 80%DOD
IP Grade (防水等级) IP20
Communication Mmode (通讯接口) CAN&RS485


>>>Our Factory

Leveraging our extensive expertise as a long-standing manufacturer in the solar photovoltaic sector, we operate a

state-of-the-art facility dedicated to producing mission-critical components: efficient solar power inverters, dependable

AGM/GEL lead-acid battery chargers, intelligent solar charge controllers, and complementary equipment. Synonymous

with unwavering quality, Sunchonglic products are designed and built to provide consistent, high-performance operation.

Connect with us to discover how our proven solutions can meet your specific energy needs!


>>>Production Process


25.6V 300AH 7.68kwh Vertical Energy Storage BMS LiFePO4 Battery With LCD  0
