3000VA Modified Sine Wave Solar Inverter with Built-in MPPT for Off-Grid Power Conversion

3000VA Modified Sine Wave Solar Inverter with Built-in MPPT for Off-Grid Power Conversion

Brand Name:	Sunchonglic
Model Number:	SUS-3000A+MPPT
MOQ:	5pcs
Price:	US $53.85 - 60.00
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

SUS‑3000A+MPPT 3000VA Modified Sine Wave Solar Inverter,Built‑in MPPT Solar Charge Controller DC12V To AC220V Off‑Grid All‑in‑One Power Inverter

Peak Power:

4000

Working Environment Temperature:

-20℃~+70℃

Output Waveform:

Modified Sine Wave

Conversion Efficiency:

>90%

High Pressure Cut Off:

15V±0.5V

Packaging Details:

Paper Box

Highlight:

3000VA Solar Inverter

Modified Sine Wave Power Inverter

Built-in MPPT Solar Charge Inverter

Product Description

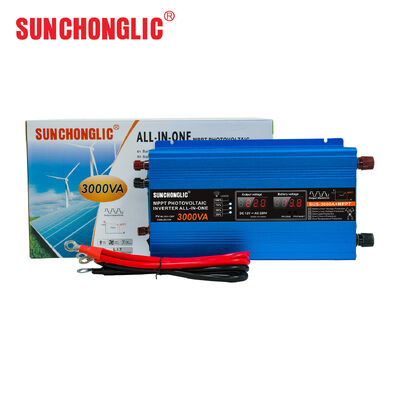

SUS‑3000A+MPPT 3000VA Modified Sine Wave Solar Inverter

Built as an integrated off‑grid solar power unit, the SUS‑3000A+MPPT combines MPPT solar charge controller and inverter function into one compact device, which is specially developed for 12V battery‑based independent photovoltaic systems. It converts DC12V battery power into modified sine‑wave 220V AC electricity to run various household electrical appliances when the grid is unavailable.

Key Features

Wide PV input range of 18V‑120V, compatible with different kinds of solar panels from 300W up to 1200W
Built‑in high‑efficiency 25‑30A MPPT charge controller, maximizes solar power harvesting during sunny hours
Additional DC12V output port, available for powering low‑voltage DC equipment such as lights and monitors

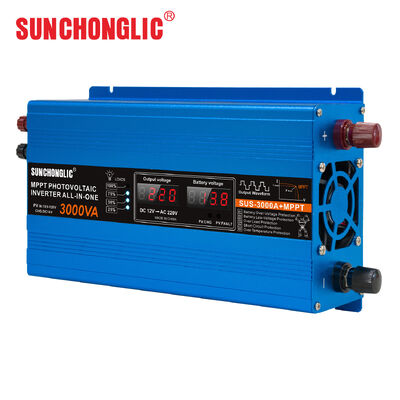

Large‑size LED display screen, clearly shows battery voltage, charging data and real‑time load status
Intelligent cooling fan starts automatically according to internal temperature, stable for long‑time operation
Complete multiple‑layer protection: overload, short‑circuit, over‑voltage and under‑voltage cut‑off protection
Modified sine wave output, cost‑effective power solution for off‑grid houses, cabins and outdoor sites

Application Scenarios

This all‑in‑one solar inverter is widely deployed for remote family houses, mountain guest houses, field camps and emergency backup power supply. It is an ideal choice for users who want to build simple, low‑cost off‑grid solar systems without complicated matching of separate controllers and inverters.

Technical Specifications

Model	SUS-3000A+MPPT
Built-in Controller	25A~30A
Solar Panel Specifications	100~200W/36V∗2
External Battery	12V 100Ah~150Ah
Output Voltage	AC 220V±5%
Maximum Continuous Power	1500W
Peak Power	4000W
No Load Current	<0.5A
DC Input Voltage	DC9.7V~15.5V
Output Frequency	50Hz±3Hz
Conversion Efficiency	>90%
High Pressure Cut Off	15V±0.5V
Low Voltage Alarm	11.2V±0.3V
Low Cut	10V±0.3V
Protection Features	Overload, short circuit protection
Output Waveform	Modified sine wave
Cooling System	Fan cooled
Operating Temperature	-20℃~+70℃
Relative Humidity	<90%RH
Dimensions	230x127x67mm
Weight	1.5kg
