3000W MPPT Solar Inverter with Modified Sine Wave for 12V to 220V DC AC Conversion

3000W MPPT Solar Inverter with Modified Sine Wave for 12V to 220V DC AC Conversion

Brand Name:	Sunchonglic
Model Number:	SUS-3000A
MOQ:	5pcs
Price:	US $53.85 - 60.00
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

MPPT Solar Photovoltaic Inverter 12v To 220v Dc Ac 3000va 3000w Modified Sine Wave Power Inverter

Output Waveform:

Tixed Wave

Working Environment Temperature:

-20℃~+70℃

Peak Power:

4000

High Pressure Cut Off:

15V±0.5V

Conversion Efficiency:

>90%

Packaging Details:

Paper Box

Highlight:

12v 220v MPPT Solar Photovoltaic Inverter

3000va 3000w Solar Charge Controller Inverter

Quiet Operation solar power inverter 3000w

Product Description

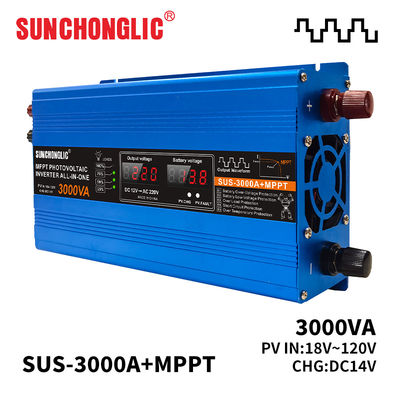

MPPT Solar Photovoltaic Inverter 12V to 220V DC/AC 3000VA 3000W

This modified sine wave power inverter features MPPT technology for efficient solar energy conversion, providing reliable 220V AC power from 12V DC battery sources with quiet operation.

Key Features

External battery compatibility for flexible system configuration
Ideal for home systems from 100W to 1000W power requirements
AC output: 220V for computers, TVs, fans, and other appliances
DC outputs: 12V/24V, 5V for LED lighting, cameras, and mobile charging
Large LED display for clear status monitoring
Modified sine wave output with 3000VA/3000W capacity

Technical Specifications

Model	SUS-3000A+MPPT
Built-in Controller	25A~30A
Solar Panel Specifications	100~200W/36V∗2
External Battery	12V 100Ah~150Ah
Output Voltage	AC 220V±5%
Maximum Continuous Power	1500W
Peak Power	4000W
No Load Current	<0.5A
DC Input Voltage	DC9.7V~15.5V
Output Frequency	50Hz±3Hz
Conversion Efficiency	>90%
High Pressure Cut Off	15V±0.5V
Low Voltage Alarm	11.2V±0.3V
Low Cut	10V±0.3V
Protection Features	Overload, short circuit protection
Output Waveform	Modified sine wave
Cooling System	Fan cooled
Operating Temperature	-20℃~+70℃
Relative Humidity	<90%RH
Dimensions	230x127x67mm
Weight	1.5kg

Manufacturer Profile

We are an established manufacturer with over 20 years of experience in solar energy photovoltaic products. Our factory specializes in solar power inverters, AGM/GEL lead acid battery chargers, solar charge controllers, and complete solar systems. Sunchonglic brand products represent quality and reliability in renewable energy solutions.

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

Yes, we have been manufacturing solar energy photovoltaic products for over 20 years. We are the original manufacturer and developer of advanced solar products including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Simply tell us your requirements and we will recommend the most suitable product for your specific needs.

What are your payment methods?

We accept T/T and Trade Assurance among other secure payment options.

What price terms can you offer?

We can accommodate various international trade terms including EXW, FOB, CIF, and others.

Where is your main market?

Our Sunchonglic brand products are exported worldwide, with strong presence in Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by clients worldwide, meeting continuously changing economic and social needs. We welcome both new and existing customers to contact us for future business relationships and mutual success!
