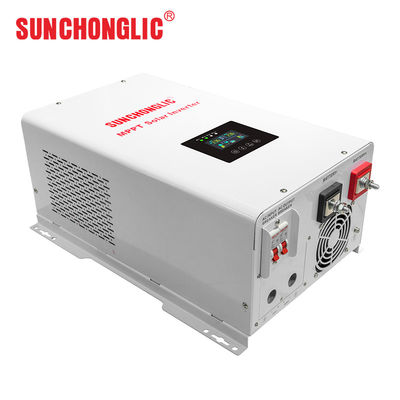

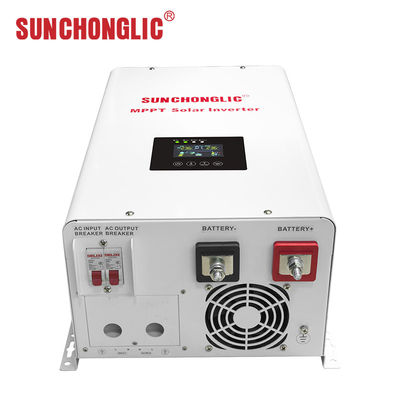

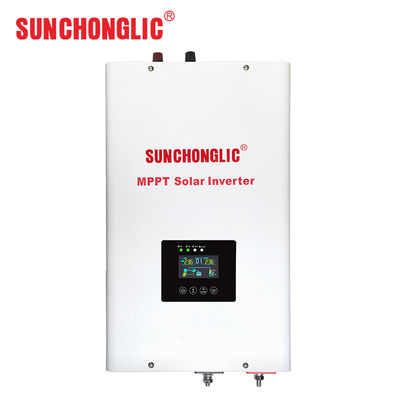

3000VA 60A MPPT Solar Hybrid Inverter Pure Sine Wave UPS Inverter with AC Charger

3000VA 60A MPPT Solar Hybrid Inverter Pure Sine Wave UPS Inverter with AC Charger

Brand Name:	Sunchonglic
Model Number:	FMP-3000B
MOQ:	5pcs
Price:	US $83.8-288.61
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

24v 3000va 2100w Low Frequency UPS Pure Sine Wave 60A MPPT Solar Hybrid Inverter With AC Charger

Charge Modes:

3 Stage;bulk,boost,float

PV Array Input Voltage:

30V-180V

Voltage Range:

AC160-260V

Operating Humidity:

10-90%

Solar Charging Current:

60A

Packaging Details:

Paper Box

Highlight:

24v 60A MPPT Solar Hybrid Inverter

3000va 2100w MPPT Solar Hybrid Inverter

Low Frequency 3kva hybrid inverter

Product Description

3000VA 2100W UPS MPPT Solar Hybrid Inverter 24V 60A Low Frequency with AC Charger

24V 3000VA 2100W low frequency UPS pure sine wave 60A MPPT solar hybrid inverter with AC charger - a reliable power solution for industrial and residential applications.

Product Features

24V 3000VA UPS pure sine wave MPPT inverter with built-in transformer
Pure sine waveform output with voltage stabilizer - specially designed for starting inductive loads
Support for 3 working modes: Mains priority, Battery priority, PV priority
3 times start-up peak power capability for resisting voltage impingement
Excellent loading capability for demanding applications
Built-in Lithium battery activation function

Technical Specifications

Specification	Model: 3000VA
Power Output	2100W
Input Voltage Range	AC 160-260V
Input Frequency Range	50Hz/60Hz
Output Voltage Regulation (Battery Mode)	AC 220V ±25V
Output Frequency (Battery Mode)	50Hz/60Hz
Output Waveform	Pure Sine Wave
Battery Type	24V External
Rated Battery Voltage	24VDC (20-32V)
Charge Modes	3-stage: bulk, boost, float
Charging Current	DC 20A
Protection Features	Overload, Overheat, Output high/low voltage, Battery low voltage, Short-circuit, Over-charge, Over-discharge
Switch Time	10ms
Operating Humidity	10-90%
Operating Temperature	0℃ to +40℃
Protection Class	IP20
Dimensions	440x228x200 mm / 465x320x200 mm
MPPT (Optional)	PV Array Input Voltage: 30V-180V
Solar Charging Current	60A

Manufacturing Expertise

We specialize in manufacturing solar photovoltaic products with over 20 years of industry experience. Our factory produces Solar Power Inverters, AGM/GEL Lead Acid Battery Chargers, Solar Charge Controllers, and complete solar systems. Sunchonglic brand products are trusted choices for reliable power solutions.

Frequently Asked Questions

Are you the factory manufacturer?

Yes, we are the original manufacturer and developer of advanced Solar Energy Photovoltaic Products with over 20 years of experience, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Tell us your specific requirements and we will recommend the most suitable product for your application.

What are your payment methods?

We accept T/T (Telegraphic Transfer) and Trade Assurance, among other secure payment options.

What price terms can you offer?

We can accommodate various price terms including EXW, FOB, CIF, and others based on your needs.

Where is your main market?

Our Sunchonglic brand products are exported worldwide, with strong presence in Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by customers for meeting evolving economic and social needs. We welcome new and existing customers from around the world to contact us and establish mutually beneficial business relationships.
