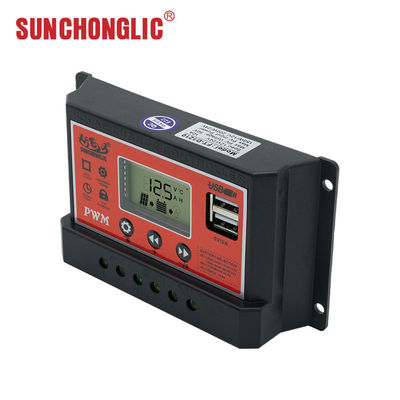

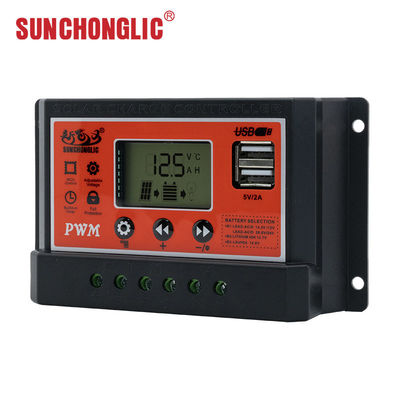

30A PWM Solar Charge Controller with Dual USB Output and High-Precision Voltage Stability

30A PWM Solar Charge Controller with Dual USB Output and High-Precision Voltage Stability

Brand Name:	Sunchonglic
Model Number:	FT-D1230
MOQ:	100pcs
Price:	US $3.98-27.89
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

PWM Solar Controller Solar Charge Controller With Dual Usb Output 12v 24v 30A

Low Power Recovery Voltage:

Default12V(B3) Adjustable Range 11-13V

Size / Weight :

133x75x33mm/152g

Battery Type:

Lead Acid/AGM/GEL/Lithium Ion/Lithium Iron Phosphate Battery

Solar PV Input Maximum voltage:

12V System<25V; 24V System<50V

Rated Current Of DC Load Output:

12V

Packaging Details:

Paper Box

Highlight:

12vdc Pwm Controller

Dual Usb Output 12vdc Pwm Controller

Product Description

PWM Solar Charge Controller with Dual USB Output

12V/24V 30A PWM solar charge controller featuring high-precision voltage stability technology and dual USB outputs for reliable solar power management.

Key Features

5V/2A dual USB charging interface
Compatible with inductive loads including air conditioners
Universal socket for all plug types
High-precision voltage stability technology
Pure sine wave output (THD <3%) for sensitive equipment
Comprehensive safety protections: overload, overvoltage, low voltage, high temperature, and short circuit

Technical Specifications

Model	FT-D1230
Rated Current	30A
System Voltage	12V/24V auto-sensing for lead-acid batteries
Solar PV Input Max Voltage	12V system <25V; 24V system <50V
Battery Types	B01=Lead Acid Battery 12V/24V auto sense B02=Lithium-ion battery 3 series 3.7V=11.1V B03=Lithium-ion phosphate battery 4 series 3.2V=12.8V
Charging Voltage	Default 14.6V (B3), adjustable range 13.7-14.6V
Low-Voltage Cut Off	Default 10V (B3), adjustable range 8-11.5V
Low Power Recovery Voltage	Default 12V (B3), adjustable range 11-13V
Recommended Solar Panel (12V)	200-350W/18V
Recommended Solar Panel (24V)	400-500W/36V
Recommended Battery Capacity	12V/100-200Ah; 24V/100-200Ah
DC Load Output	12A
USB Output	5V/2A
Standby Current	<10mA
Operating Temperature	-35℃ to +60℃
Dimensions & Weight	1337533mm / 152g

* Tagged voltage corresponds to 12V solar system. For 24V systems, multiply by 2.

Manufacturing Excellence

With over 20 years of expertise in solar photovoltaic innovation, we engineer high-efficiency solar power inverters through cutting-edge production technologies. Our robust R&D team and international certifications (ISO, CE) ensure reliable renewable energy solutions for global markets.

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

Yes, we have specialized in solar energy photovoltaic products for over 20 years. We are the original manufacturer and developer of advanced solar products including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Tell us your requirements and we will recommend the most suitable product for your application.

What payment methods do you accept?

We accept T/T, Trade Assurance, and other secure payment methods.

What price terms can you offer?

We offer various price terms including EXW, FOB, CIF and others to meet your shipping requirements.

Where are your main markets?

Our Sunchonglic brand products are exported worldwide, with strong presence in Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by clients worldwide, meeting continuously changing economic and social needs. We welcome new and existing customers to contact us for future business relationships and mutual success!
