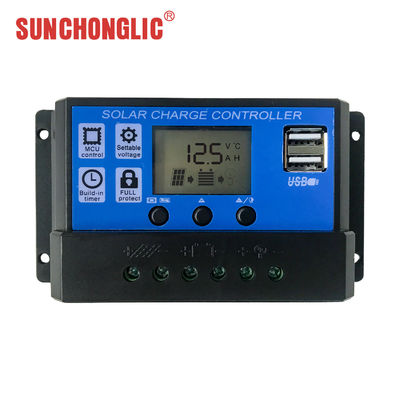

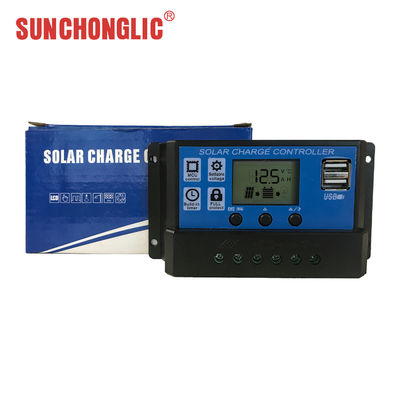

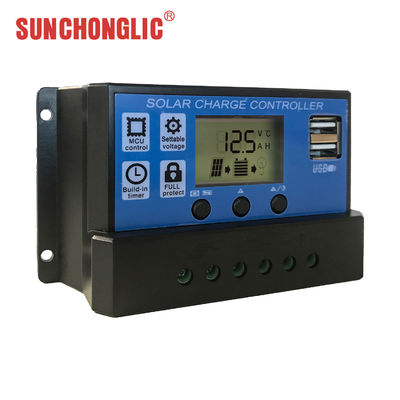

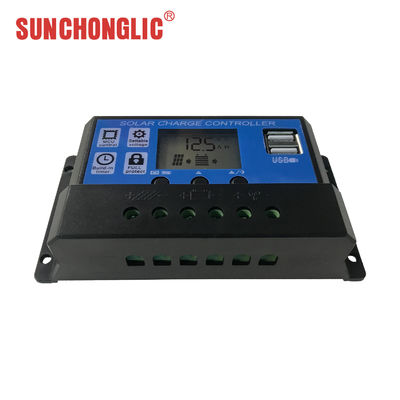

12V/24V PWM Solar Charge Controller with 5V/2A USB Output and 20A Rated Current for Efficient Solar Power Management

Brand Name:	Sunchonglic
Model Number:	FT-1220A
MOQ:	100pcs
Price:	US $3.98-27.89
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

12V / 24V PWM Solar Charger Controllers 5V / 2A USB Output

Charging Voltage:

12.6V(B02)

USB Output:

5V/2A

Standby Current:

<10mA

Rated current:

20A

External 24V Battery Recommended Solar Panel Specifications:

200-300W/36V

Packaging Details:

Paper Box

Highlight:

12v 24v PWM solar charge controller

PWM solar controller with USB output

5v 2a USB solar charge controller

Product Description

12V/24V PWM Solar Charger Controllers with 5V/2A USB Output

Product Features

Compatible with 3 battery types: Lead-acid, Lithium-ion, and Lithium iron phosphate batteries
Power-cut memory function automatically retains user settings
Large-screen LCD display for clear monitoring
Complete three-phase PWM charge management system (Constant current, Constant voltage, Floating charge modes)
Multiple protection features: Overcurrent, Short circuit, Open circuit, and Battery reverse protection
Double MOS tube anti-reverse circuit protection prevents battery current backflow to solar panels

Technical Specifications

Model	FT-1220
System Voltage	12V/24V
Maximum Input Voltage	<50V
Rated Current	20A
Recommended Solar Panel (12V)	200-300W/18V
Recommended Solar Panel (24V)	200-300W/36V
External Battery	12V 100-150Ah / 24V 100-150Ah
Battery Types	B01: Lead Acid Battery 12V B02: Lithium-ion battery 3 series 3.7V=11.1V B03: Lithium iron phosphate battery 4 series 3.2V=12.8V
Charging Voltage (B02)	12.6V
Low-voltage Cut Off (B02)	9V
Low Power Recovery (B02)	10.5V
USB Output	5V/2A
Standby Current	<10mA
Working Temperature	-35℃ to +60℃
Size / Weight	1258634mm / 200g

Manufacturer Profile

We are a professional manufacturer of solar photovoltaic products, specializing in inverters, AGM/GEL battery chargers, and solar charge controllers. Our Sunchonglic brand is recognized for high performance, reliability, and cost-effectiveness. Our product range includes pure sine wave inverters, UPS chargers, voltage stabilizers, and both PWM and MPPT solar charge controllers. With strong R&D capabilities and comprehensive testing, we continuously enhance our products to meet diverse industry requirements. We provide customized solutions and complete after-sales support. Our products are widely used in the Middle East, Southeast Asia, Africa, and South America.

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

With over two decades of expertise in solar energy photovoltaic solutions, we are the original manufacturer and technology pioneer specializing in integrated solar products. Our core innovations include hybrid solar inverters that combine inverter and controller functionalities, power inverters, battery chargers, solar controllers, and comprehensive solar systems.

How to select a suitable product?

Tell us your requirements, and we will recommend the most suitable product for your needs.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

What price terms can you offer?

We can accept EXW, FOB, CIF, and other international trade terms.

Where is your main market?

Most of our Sunchonglic brand products are exported to Southeast Asia, Africa, the Middle East, and other regions.

Our products are widely recognized and trusted by our clients and can meet continuously changing economic and social needs. We would sincerely welcome new and old customers from around the world to visit and contact us for future business relationships and mutual success!
