PWM Solar Charge Controller
Created with Pixso.

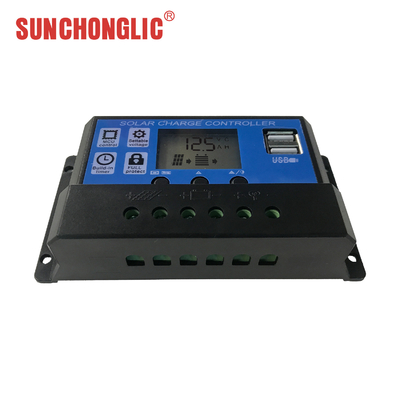

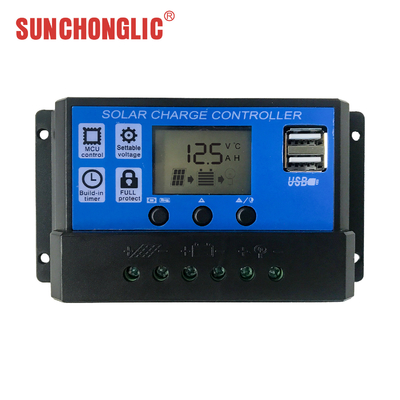

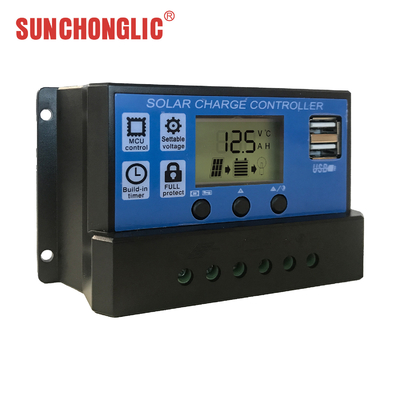

12v / 24v  pwm solar charger controllers 5v / 2a usb output

12v / 24v  pwm solar charger controllers 5v / 2a usb output

Brand Name: Sunchonglic
Model Number: FT-1220A
MOQ: 100pcs
Price: US $3.98-27.89
Payment Terms: T/T
Supply Ability: 100000pcs/mon
Detail Information
Place of Origin:
China
Product Name:
12V / 24V PWM Solar Charger Controllers 5V / 2A USB Output
Charging Voltage:
12.6V(B02)
USB Output:
5V/2A
Standby Current:
<10mA
Rated current:
20A
External 24V Battery Recommended Solar Panel Specifications:
200-300W/36V
Packaging Details:

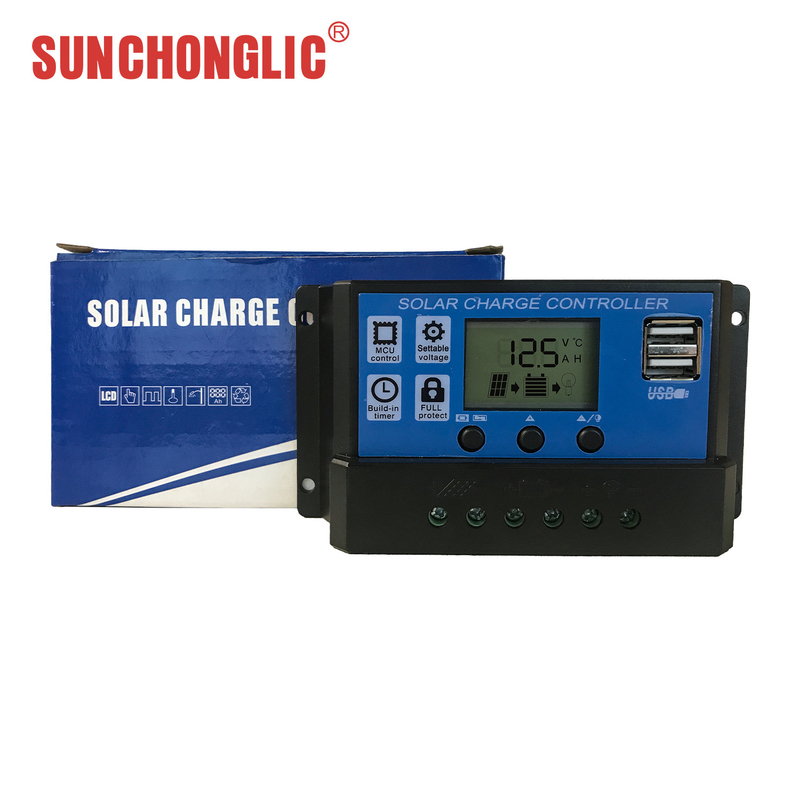

Paper Box
Product Description

12V / 24V  PWM Solar Charger Controllers 5V / 2A USB Output

>>>Product Description


What is feature of 12v / 24v  pwm solar charger controllers 5v / 2a usb output ?

1. Applicable for 3 types of batteries: B01 Lead-acid battery, B02 Lithium-ion battery, B03 Lithium iron phosphate battery
2. The power-cut memory function can automatically retain users' last settings
3. Equipped with a large-screen LCD display
4. Features a complete three-phase PWM charge management system (Constant current mode, Constant voltage mode, Floating charge mode)
5. Includes multiple protections: Overcurrent protection, Short circuit protection, Open circuit protection, and Battery reverse protection
6. Utilizes a double MOS tube anti-reverse circuit protection to prevent battery current from flowing back to the solar cell at night, thus avoiding power loss


12v / 24v  pwm solar charger controllers 5v / 2a usb output  0


>>>Product Specifications


Model       FT-1220
System Voltage 12V/24V
Maximum input voltage <50V
Rated current 20A
External 12V battery recommended solar panel specifications 200-300W/18V
External 24V battery recommended solar panel specifications 200-300W/36V
External battery 12V 100-150Ah
24V 100-150Ah
Battery Type B01=Lead Acid Battery 12V
B02=Lithium-ion battery 3 series 3.7V=11.1V
B03=Lithium-ion phosphate battery 4 series 3.2V=12.8V
Charging voltage 12.6V(B02)
Low-voltage cut off voltage 9V(B02)
Low power recovery voltage 10.5V(B02)
USB Output 5V/2A
Standby current <10mA
Working temperatue

 -35℃~+60℃

Size / Weight   125*86*34mm/200g
