20A 12V/24V PWM Solar Charge Controller with LCD Display for Home Use

20A 12V/24V PWM Solar Charge Controller with LCD Display for Home Use

Brand Name:	Sunchonglic
Model Number:	FT-S1220
MOQ:	100pcs
Price:	US $3.98-27.89
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

12v / 24v PWM Solar Charger Controllers 20A Home Use

Working Temperatue:

-35℃~+60℃

External 24V Battery Recommended Solar Panel Specifications:

200-300W/36V

USB Output:

5V/2A

Low-voltage Cut Off Voltage:

9V(B02)

Charging Voltage:

12.6V(B02)

Packaging Details:

Paper Box

Highlight:

12v 24v PWM solar charge controller

20A solar charge controller home use

PWM solar controller with warranty

Product Description

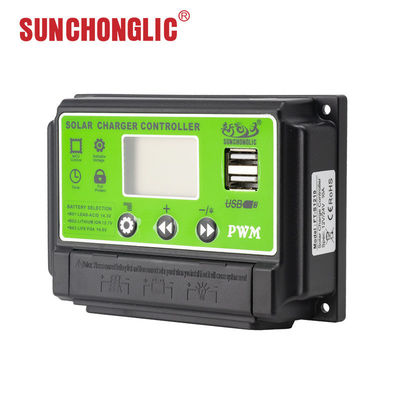

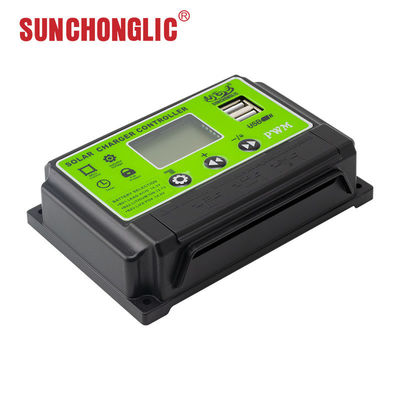

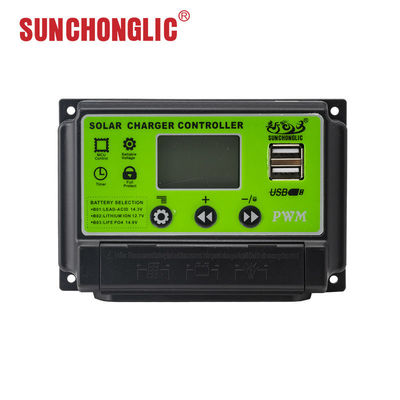

12V/24V PWM Solar Charger Controller 20A - Home Use

Product Features

Compatible with three battery types: Lead-acid, Lithium-ion, and Lithium iron phosphate
Power-cut memory function automatically retains user settings
Large-screen LCD display for clear monitoring
Complete three-phase PWM charge management (Constant current, Constant voltage, Floating charge modes)
Multiple protection systems: Overcurrent, Short circuit, Open circuit, and Battery reverse protection

Technical Specifications

Model	FT-S1220
System Voltage	12V/24V
Maximum Input Voltage	<50V
Rated Current	20A
Recommended Solar Panel (12V)	200-300W/18V
Recommended Solar Panel (24V)	200-300W/36V
External Battery	12V 100-150Ah / 24V 100-150Ah
Battery Types	Lead Acid, Lithium-ion (3 series), Lithium iron phosphate (4 series)
Charging Voltage	12.6V (B02)
Low-voltage Cut Off	9V (B02)
Low Power Recovery	10.5V (B02)
USB Output	5V/2A
Standby Current	<10mA
Working Temperature	-35℃ to +60℃
Size / Weight	1258634mm / 200g

Manufacturing Excellence

With over two decades of experience in solar photovoltaic innovation, we develop high-efficiency solar power inverters using advanced production technologies. Supported by a strong R&D team and international certifications (ISO, CE), we provide reliable renewable energy solutions for global markets. Choosing Sunchonglic ensures access to cost-effective, sustainable energy solutions with optimized European distribution networks.

Frequently Asked Questions

Q: Are you the factory manufacturer?
A: With over two decades of expertise in solar energy photovoltaic solutions, we are the original manufacturer and technology pioneer specializing in integrated solar products.

Q: How to select a suitable product?
A: Tell us your requirements and we will recommend the most suitable solution.

Q: What payment methods do you accept?
A: We accept T/T, Trade Assurance, and other secure payment options.

Q: What price terms can you offer?
A: We can accommodate EXW, FOB, CIF and other international trade terms.

Q: Where is your main market?
A: Our Sunchonglic brand products are exported worldwide, with strong presence in Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by clients worldwide, meeting continuously changing economic and social needs. We sincerely welcome new and existing customers to contact us for future business relationships and mutual success!
