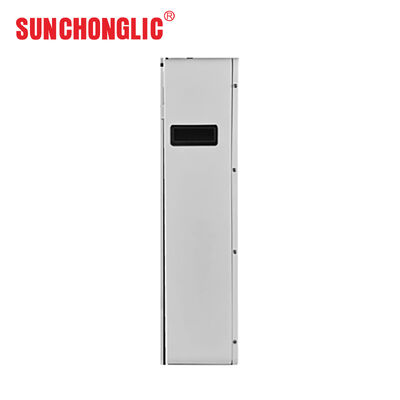

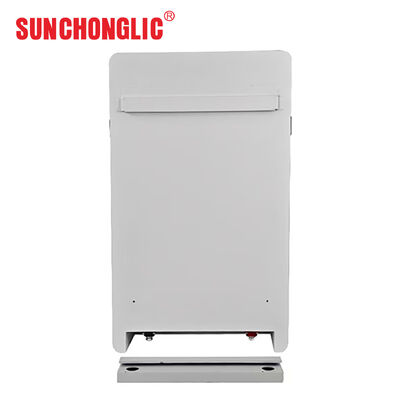

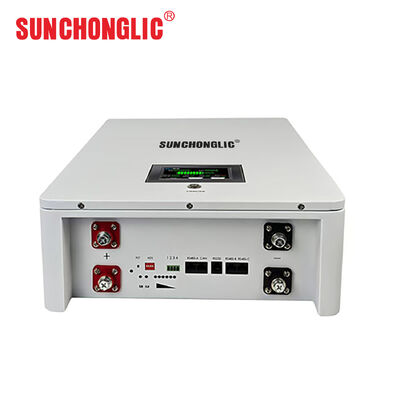

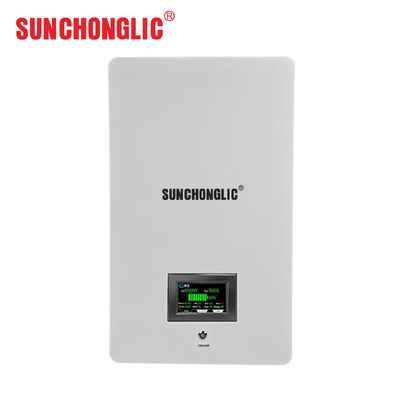

51.2V 100Ah 5.12KWH Wall Mounted LiFePO4 Battery for Energy Storage with Intelligent BMS

Brand Name:	Sunchonglic
Model Number:	SCG-51V100A
MOQ:	5pcs
Price:	US $31.05-155.25
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

51.2V 100Ah 5.12KWH Wall Mounted Energy Storage Cell LiFePO4 Battery

Nominal Voltage:

51.2V

IP Grade:

IP20

Communication Mmode:

CAN&RS485

Configuration:

1P 16S

Altitude Limited:

0-3000m

Packaging Details:

Paper Box

Highlight:

51.2V 100Ah LiFePO4 Battery

Wall Mounted Energy Storage Battery

5.12KWH Lithium Iron Phosphate Battery

Product Description

51.2V 100Ah 5.12KWH Wall Mounted Energy Storage Cell LiFePO4 Battery

Advanced wall-mounted energy storage solution with high capacity and intelligent management system.

Key Features

2A Active Balancing: Ensures battery pack consistency and prevents overcharging or over-discharging
4.3-inch Touch Screen: User-friendly interface for easy operation
Intelligent BMS: Compatible with most mainstream inverter communication protocols
Wall-mounted Design: Supports up to 16 units in parallel for scalable energy storage
Dual Communication Interfaces: Supports both RS485 and CAN communication
LCD Display: Provides clear system information and status monitoring

Technical Specifications

Model	SCG-51V 100AH
Rated Energy	5.12KWH
Configuration	1P 16S
Nominal Voltage	51.2V
Working Voltage	42V-58.4V
Nominal Capacity	100Ah
Rated Charge/Discharge Current	50A/100A @25±2℃
Maximum Charging Current	100A @25±2℃
Maximum Discharge Current	100A @25±2℃
Operation Temperature	0-60℃ Charge, -20-60℃ Discharge
Humidity	5-95%
Altitude Limited	0-3000m
Weight	49kg
Dimension	375158625mm (LWH)
Storage Temperature & Humidity	-10℃-35℃ Within 1 month, 25±2℃ Within 3 months, 65%±20%RH
Cycle Life	6000 cycles @25℃, 25A Charge/Discharge 80%DOD
IP Grade	IP20
Communication Mode	CAN & RS485
