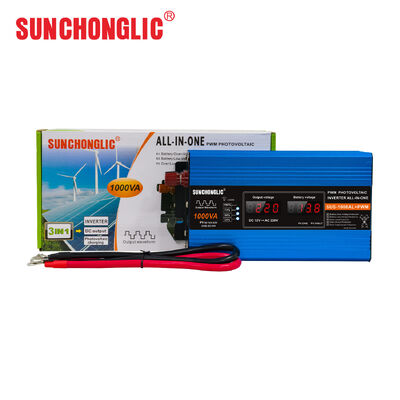

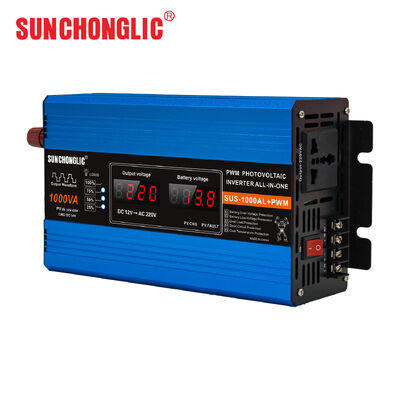

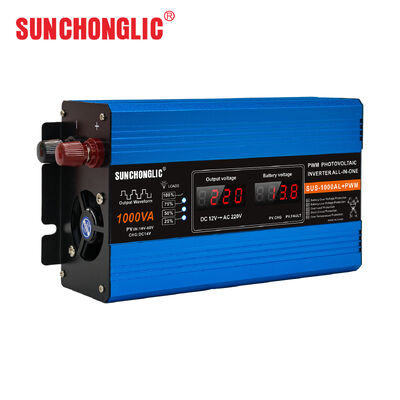

1000W Modified Sine Wave Solar Inverter with Built-in 20A PWM Solar Charge Controller for 12V DC to 220V AC Conversion

Name: 1000W Modified Sine Wave Solar Inverter with Built-in 20A PWM Solar Charge Controller for 12V DC to 220V AC Conversion
Brand: Foshan Suntway Technology Co. Ltd.
SKU: SUS-1000AL+PWM
Price: 56.85 USD
Availability: InStock

Brand Name:	Sunchonglic
Model Number:	SUS-1000AL+PWM
MOQ:	5pcs
Price:	US $53.85 - 60.00
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

1000W Modified Sine Wave Solar Inverter SUS-1000AL With Built-in 20A PWM Solar Charge Controller 12V DC To 220V AC

Low Voltage Alarm:

11.2V±0.3V

Output Waveform:

Modified Sine Waveform Output

Output Frequency:

50Hz±3Hz

Overload/short Circuit Protection:

Yes

Relative Humidity:

<90%RH

Packaging Details:

Paper Box

Product Description

1000W Modified Sine Wave Solar Inverter SUS-1000AL with Built-in 20A PWM Solar Charge Controller 12V DC to 220V AC

Product Overview

The SUS-1000AL+PWM is an integrated all-in-one solar inverter combining modified sine wave inverter and 20A PWM solar charge controller, specially designed for 12V off-grid home solar power systems. It converts 12V DC battery power into standard 220V AC household electricity while supporting direct charging of 12V lead-acid batteries by solar panels, significantly reducing purchase costs and installation space for small solar projects.

Key Features

Model: SUS-1000AL+PWM, 12V battery system with built-in 20A PWM solar charge controller
Modified sine wave output, rated continuous power 600W, peak power 1000W, DC12V to AC220V conversion
PV input range: 14V~60V, charge voltage DC14V; Compatible with 100~200W 18V solar panel & 12V 100-150Ah battery
Built-in DC12V output + 5.0V±0.3V USB output for small devices
Full protection: battery reverse protection, overvoltage/undervoltage/overload/short-circuit cut-off protection

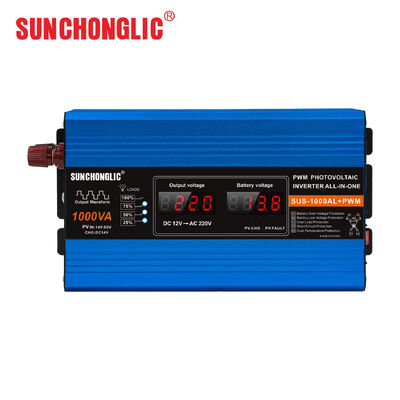

Large LED digital display for real-time working status monitoring
≥90% high conversion efficiency, intelligent fan cooling, operating temperature -20℃~+70℃, humidity＜90%RH

Technical Specifications

Specification	Details
Model	SUS-1000AL+PWM
Built-in Controller	15A
Solar Panel Specifications	500-600W/60V
External Battery	12V 100Ah~150Ah
USB Output Voltage	5.0 +/-0.3V
Inverter Output Voltage	AC 220V +/-5%
Maximum Continuous Power	600W
Peak Power	1000W
No Load Current	<0.5A
DC Input Voltage	DC 9.7V~15.5V
Output Frequency	50 +/-3Hz
Conversion Efficiency	>90%
High Pressure Cut Off	15V +/-0.5V
Low Voltage Alarm	11.2V +/-0.3V
Low Cut	10V +/-0.3V
Protection Features	Overload and short circuit protection
Output Waveform	Fixed wave

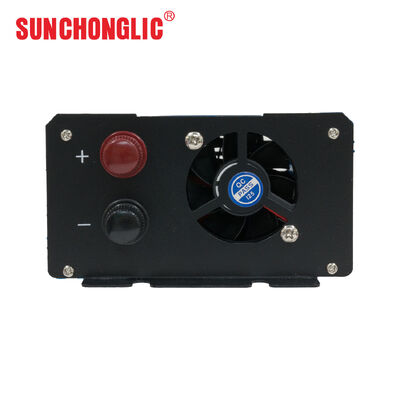

Cooling System	Fan cooled
Operating Temperature	-20℃ to +70℃
Relative Humidity	<90% RH

Manufacturing Excellence

With over a decade of expertise in solar energy solutions, we are a leading manufacturer specializing in photovoltaic products. Our facility produces high-performance solar power inverters, AGM/GEL lead-acid battery chargers, and solar charge controllers, offering comprehensive solutions for residential and commercial applications. Sunchonglic products deliver cutting-edge technology with a proven track record of reliability.

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced Solar Energy Photovoltaic Products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Tell us your requirements, and we will recommend the most suitable product for your needs.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

What price terms can you offer?

We can accommodate EXW, FOB, CIF, and various other international trade terms.

Where is your main market?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, and the Middle East regions.

Our products are widely recognized and trusted by our clients and can meet continuously changing economic and social needs. We would sincerely welcome new and old customers from around the world to visit and contact us for future business relationships and mutual success!

For detailed product specifications, please contact our professional team for prompt assistance!
