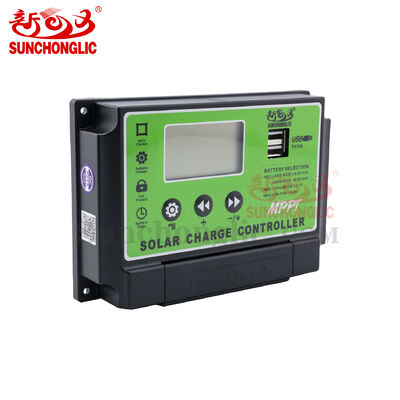

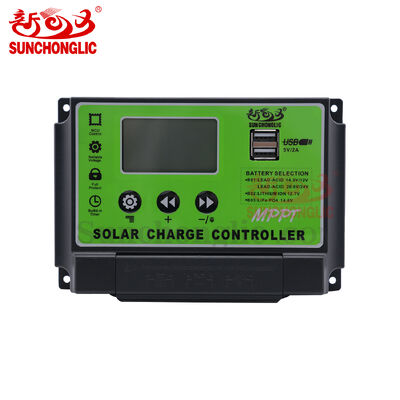

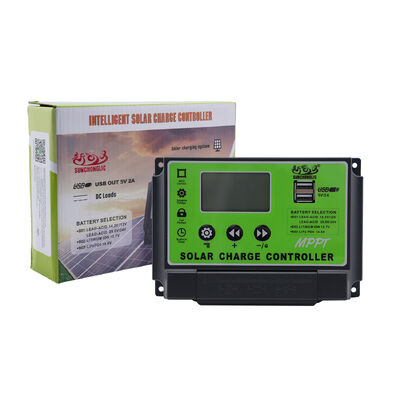

40A Double MOS PWM Solar Charge Controller with Three Phase Charging LCD Display for 12V 24V Systems

40A Double MOS PWM Solar Charge Controller with Three Phase Charging LCD Display for 12V 24V Systems

Brand Name:	Sunchonglic
Model Number:	FT-M1240
MOQ:	100pcs
Price:	US $3.98-27.89
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

FT-S1230 Double MOS LCD Display 30A PWM Solar Charge Controller For 12V 24V Systems With Three Phase Charging

Rated current:

40A

Low-voltage Cut Off Voltage:

10.7V(B01)

Low Power Recovery Voltage:

12.6V(B01)

Working Temperatue:

-35℃~+60℃

Size / Weight :

155*105*30mm/280g

Packaging Details:

Paper Box

Highlight:

40A PWM Solar Charge Controller

Double MOS PWM Solar Controller

Three Phase Charging Solar Charge Controller

Product Description

Double MOS LCD Display PWM Solar Charge Controller

An advanced 12V/24V 40A three-phase PWM solar charge controller with LCD display, engineered for efficient and reliable solar power management.

Product Features

Compatible with three battery types: Lead Acid, Lithium Ion, and Lithium Iron Phosphate
Large LCD screen with fully customizable charging and discharging parameters; power-off memory retains the last setting
Three-phase PWM charge management: constant current, constant voltage, and floating charge modes
Built-in multiple protections: overcurrent, short circuit, open circuit, and battery reverse connection protection
Double MOS tube anti-reverse circuit prevents battery backflow to the solar panel at night, reducing power loss
Dual USB 5V/2A output for charging phones and small devices
Low standby consumption with a wide working temperature range of -35℃ to +60℃

Product Specifications

Model	FT-M1240
System Voltage	12V/24V
Maximum Input Voltage	<54V
Rated Current	40A
External 12V Battery Recommended Solar Panel Specifications	500–600W / 18V
External 24V Battery Recommended Solar Panel Specifications	1000–1300W / 36V
External Battery	12V 150–200Ah 24V 150–200Ah
Battery Type	B01 = Lead Acid Battery 12V B02 = Lithium-ion battery, 3 series 3.7V = 11.1V B03 = Lithium Iron Phosphate battery, 4 series 3.2V = 12.8V
Charging Voltage	14.3V (B01)
Low-Voltage Cut-Off Voltage	10.7V (B01)
Low Power Recovery Voltage	12.6V (B01)
USB Output	5V/2A
Standby Current	<10mA
Working Temperature	-35℃ ~ +60℃
Size / Weight	155 * 105 * 30 mm / 280g

Our Factory

With over a decade of expertise, we specialize in advanced solar solutions, manufacturing high-performance inverters, AGM/GEL battery chargers, and smart controllers for residential and commercial use. Engineered with cutting-edge technology and rigorously tested, our products ensure reliability and efficiency.

Contact our team for tailored solutions to maximize your solar investment.

Production Process

Frequently Asked Questions

Q1. Are you the factory manufacturer?

A1. We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced Solar Energy Photovoltaic Products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and solar systems.

Q2. How do I select a suitable product?

A2. Tell us your requirements and we will recommend a suitable product for you.

Q3. What are your payment methods?

A3. We accept T/T, Trade Assurance, and other methods.

Q4. What price terms can you offer?

A4. We can accept EXW, FOB, CIF, and other terms.

Q5. Where is your main market?

A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa, the Middle East, and other regions.

Our products are widely recognized and trusted by our clients and can meet continuously changing economic and social needs.

We sincerely welcome new and old customers from around the world to visit and contact us for future business relationships and mutual success.

Applications

Widely used for home solar lighting systems, off-grid solar power stations, solar home kits, and outdoor solar power supply.
