Pure Sine Wave 10kw Hybrid Inverter Low Frequency Eco Friendly Seamless Power Backup

Brand Name:	Sunchonglic
Model Number:	HMP-10KW-48V
MOQ:	5pcs
Price:	US $274.62-1273.85
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Pure Sine Wave Low Frequency Inverter Hybrid Solar Hybrid Inverter 48V 10KW

Heat-dissipating Type:

Intelligent Temperature Control

Peak Capacity:

30kw

PV Input Port:

One Route(60A)

LCD Display Working Mode:

Normal Mode/"ON" Mode

Output Efficiency:

≈90%

Packaging Details:

Paper Box

Highlight:

Pure Sine Wave 10kw Hybrid Inverter

Eco Friendly 10kw Hybrid Inverter

Eco Friendly 48v hybrid solar inverter

Product Description

Pure Sine Wave Low Frequency Inverter Hybrid Solar Hybrid Inverter 48V 10KW

>>>Product Description

What is feature of pure sine wave low frequency inverter hybrid solar hybrid inverter 48V 10KW ?

1.RS232/RS485 Communications port is optional

2.3 times start-up peak power of resisting voltaic impingement, excellent loading capability

3.High conversion efficiency is up to 90%

4.Built-in Lithium battery activation function

5.PV array Open circuit input voltage 230V DC

6.Support 3 working modes: Mains priority,Battery priority,PV priority

>>>Product Specifications

Model	Capacity	10kw
	Peak capacity	30kw
	Battery voltage	48v
Inbuilt MPPT	Charging current	60A
	PV input port	One route(60A)
	PV input voltage range	15V-180V(12V system); 30V-180V(24V system); 60V-180V(48V system)
	Max PV input capacity	60A: 720W (12V system) 1440W(24V system) 2880W(48V system)
	Max charging current,can be adjustable	OFF 30A/60A(can switch OFF PV charging)
	MPPT efficiency	≈99%
	Unattended mode	Inverter is OFF mode:MPPT can charge battery if there is sunshine
Input	DC input voltage range	10.5VDC-15VDC (single battery voltage 12V)
	AC input voltage range	110VAC:(80-130)VAC; 220VAC: (160-260)VAC/(130-280)VAC,can ajdust at site
	AC input frequency	45HZ-65HZ auto test
	AC charging current can choose	OFF(can switch off AC charging function)
Output	Output wave	Pure sine wave
	Output efficiency	≈90%
	Output voltage	200V/210V/220V/230V/240V can adjust at site
	Output frequency	50Hz/60Hz can adjust at site
	ECO mode and loss	5W
Working mode	Inverter working mode	AC priority, DC priority, ECO mode, unattended mode, generator mode
Working mode	LCD display working mode	Normal mode/"ON" mode
Battery parameter	Battery types	Lead-acid battery/GEL battery/ lithium iron phosphate battery/ ternary lithium battery/customized battery
	Battery customized parameters	Constant voltage charging, Floating charging, battery recover, AC recover, low voltage alarm and low voltage protection
	Battery charging types	Lead-acid: three steps, constant current charging, constant voltage charging, floating charging Lithium battery: constant current charging, constant voltage charging
	Lithium battery string numbers can choose	lithium iron phosphate battery:3.2V single one ternary lithium battery:3.7V single one
Protections		Battery low voltage/battery over voltage/over load protection/ high temperature protection/ charging type protections
LCD display	LCD display	AC station, DC station, charging station and alarm

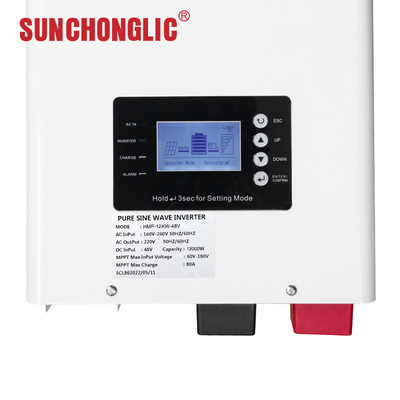

	Front panel display	Working station, input and output voltage, PV parameters and inverter parameters
	Language	Chinese/English can choose
Transfer time		<5ms
Heat-dissipating type		Intelligent temperature control
Communications		RS232/RS485(can choose)
Working temperature		(-10℃~40℃)
Altitude		≤3000m
Inverter size (LWHmm)		560390200mm
Packing size (LWHmm)		715420316mm
Net weight(kg) (About)		36kg
Gross weight (kg) (About)		41kg

>>>Our Factory

We are a manufacturer of Solar Energy Photovoltaic Products with many years history.
Our Factory produce Solar Power Inverter,AGM/GEL Lead Acid Battery Charger and Solar Charge Controller,etc.

Choosing Sunchonglic ensures access to cost-effective, sustainable energy solutions with optimized European distribution networks .

For detailed specifications or project consultation, please contact our team directly!

>>>FAQ

Q1. Are you the factory manufacturer?
A1. We are doing the Solar Energy Photovoltaic Products for over 20 years.
We are the original manufacturer and developer of advanced Solar Energy Photovoltaic
Product,including hybrid solar inverter, power inverter,battery chargers,solar controller,
and solar system,etc.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T,Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and
Mid East etc.

Our products are widely recognized and trusted by our clients and can meet continuously
changing economic and social needs.
We would sincerely welcome new and old customers from over the world to visit and
contact us for future business relationships and mutual success!
