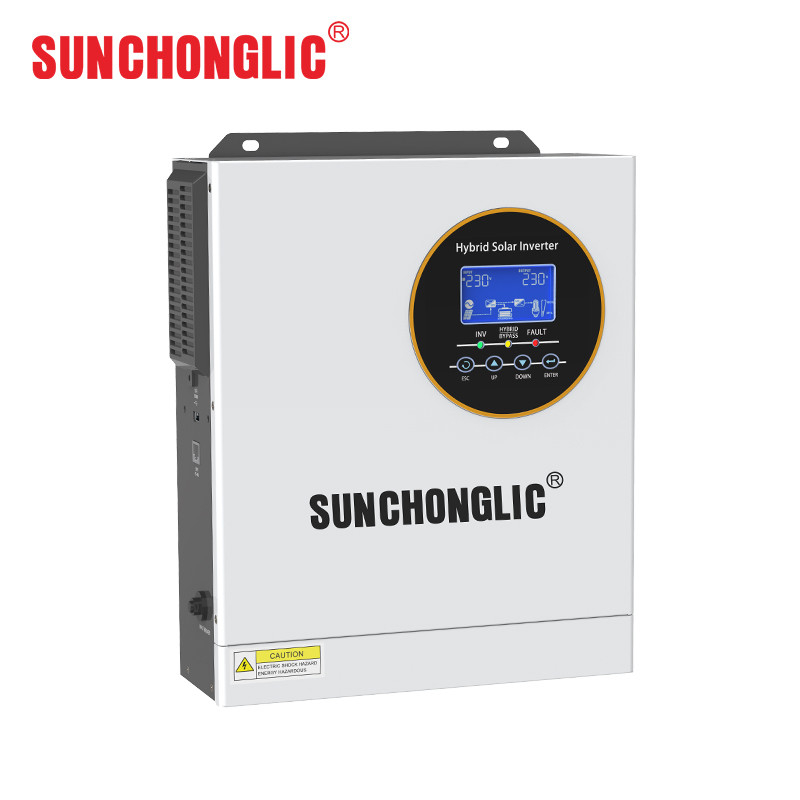

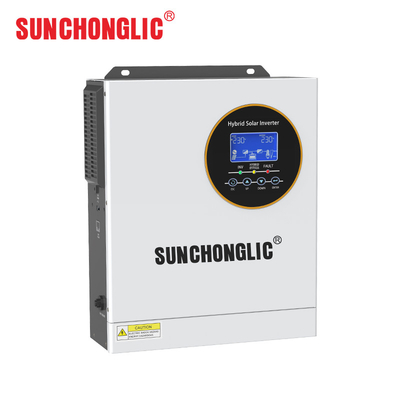

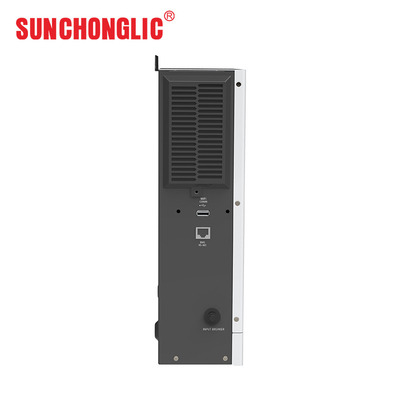

Hybrid Solar Inverter With 70v-450v Pv Input And 2kw 230vac Output

Brand Name:	Sunchonglic
Model Number:	SUN 2.2KW24
MOQ:	100pcs
Price:	US $274.62-1273.85
Payment Terms:	,T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Hybrid Solar Inverter With 70V-450V PV Input And 2KW 230Vac Output

Max. PV Array Power:

2400W

Max. PV Array Open-Cireuit Voltage:

450VDC

Start-up Voltage:

80VDC

MPPT Operating Voltage Range:

70-400VDC

Nominal Input Voltage:

300VDC

Packaging Details:

Paper Box

Product Description

Hybrid Solar inverter with 70V-450V PV Input and 2KW 230Vac Output

>>>Product Description

What is feature of hybrid solar inverter with 70v-450v pv input and 2kw 230vac output?

1.Built in dustproof components

2.Capable to operate without Battery

3.Wider PV input voltage range:60V~450Vdc

4.PV generated energy Total and Daily information

5.Capable to communicate with battery BMS by RS-485 interface

6.Excess solar energy can feed in Grid (settable)

Hybrid Solar Inverter With 70v-450v Pv Input And 2kw 230vac Output 0

>>>Product Specifications

MODEL	SUN 2.2K24	SUN 3.2K24	SUN 4.2K24	SUN 4.2K48
PV Array
Max. PV Array Power	2400W	3600W	4600W	4600W
Max. PV Array Open-Cireuit Voltage	450VDC
Start-up Voltage	80VDC
MPPT Operating Voltage Range	70-400VDC
Nominal Input Voltage	300VDC
Max. Input Current MPPT	18A
MPPT max Efficiency	99%
Battery
Battery Type	Li-ion /lead-acid
Nominal Battery Voltage	24V			48V
Battery Voltage Range	21-29V			41-58V
Max. AC Charging Current	40A	40A		40A
Max. PV Charging Current	80A	80A	100A	60A
Max. Continuous Discharging Current	80A	100A	120A	80A
AC Input
Nominal Voltage	230VAC
Voltage Range	170-275VAC
Frequency	50/60Hz (Auto following)
Max. Input Current	20A 25A
AC Output
Nominal Voltage	220/230VAC士5%
Output Voltage Waveform	Pure Sine Wave
Rated Output Power	2200VA/2200W	3200VA/3200W	4200VA/4200W	4200VA/4200W
Peak Output Power	3200VA	4400VA	6100VA	6100VA
Nominal Output Fregency	50/60Hz
Transfer Tine	10ms
Efficiency(peak) PV to INV	96.5%
Efficiency(peak) BAT to INV	93.0%
General Data
Operating Temperature Range	-10-- +50℃
Relative Humidity	0~95%
Max. Operating Altitude	< 4000m
Cooling Method	Intelligent Fan cooling
Display	LED + LCD
Communication with BMS	RS485
Communication with Cloud	WiFi/4G
Degree of Protection	1P21
Weight(kg)	5.9	6.1
Dimension(6HDmm)	34395275
Mounting Method	Wall Mounted

>>>Our Factory

We are a manufacturer of Solar Energy Photovoltaic Products with many years history.
Our Factory produce Solar Power Inverter,AGM/GEL Lead Acid Battery Charger and Solar Charge Controller,etc.
Choosing Sunchonglic brand products are good choices.
More products information,please don't hesitate to contact us!

>>>Production Process

Hybrid Solar Inverter With 70v-450v Pv Input And 2kw 230vac Output 1

>>>FAQ

Q1. Are you the factory manufacturer?
A1. We are doing the Solar Energy Photovoltaic Products for over 20 years.
We are the original manufacturer and developer of advanced Solar Energy Photovoltaic
Product,including hybrid solar inverter, power inverter,battery chargers,solar controller,
and solar system,etc.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T,Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and
Mid East etc.

Our products are widely recognized and trusted by our clients and can meet continuously
changing economic and social needs.
We would sincerely welcome new and old customers from over the world to visit and
contact us for future business relationships and mutual success!
