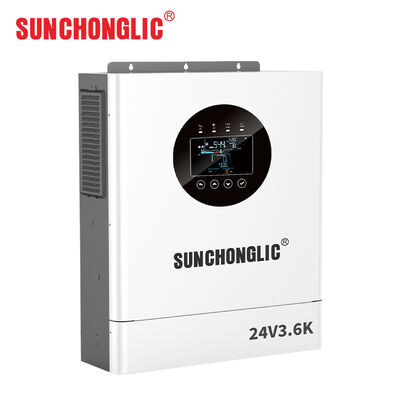

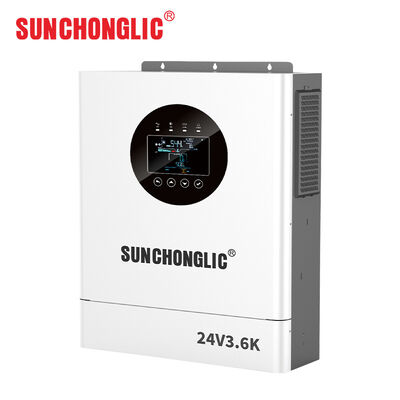

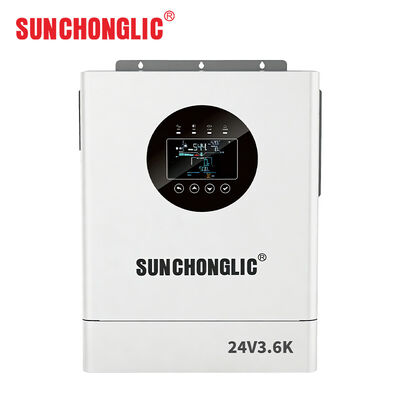

3600W 24V Pure Sine Wave Inverter MPPT Hybrid  Inverter Charger With UPS DC 24V To AC 220V

3600W 24V Pure Sine Wave Inverter MPPT Hybrid  Inverter Charger With UPS DC 24V To AC 220V

Brand Name: Sunchonglic
Model Number: SUNer-D 3600-24
MOQ: 100pcs
Price: US $9.09-67.82
Payment Terms: T/T
Supply Ability: 100000pcs/mon
Detail Information
Place of Origin:
China
Product Name:
3600W 24V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS DC 24V To AC 220V
Solar Charger Type:
MPPT
Max PV Input Current / Power:
18A/5000W
Frequency:
50/60Hz±0.1%
Max. Efficiency (Battery Mode):
92.7%@12VDC
Power Factor (PF):
1
Packaging Details:
Paper Box
Product Description

 3600W 24V Pure Sine Wave Inverter MPPT Hybrid  Inverter Charger With UPS DC 24V To AC 220V


>>>Product Description


What is feature of 3600w 24v pure sine wave inverter mppt hybrid  inverter charger with ups dc 24v to ac 220v?

  1. Equipped with an LCD display

  2. Boasts a wide MPPT range of 18-125V

  3. Features a power factor of 1.0

  4. Includes a built-in 60A solar charger

  5. Provides pure sine wave output

  6. Offers comprehensive all-around protection

 3600W 24V Pure Sine Wave Inverter MPPT Hybrid  Inverter Charger With UPS DC 24V To AC 220V 0


>>>Product Specifications


Model SUN-D3600-24
AC Input
Rated Input Voltage (VAC) 208/220/230/240; L+N+PE
Voltage Range (VAC) 90~280±3 (normal mode); 170~280±3 (UPS mode)
Frequency (Hz) 50/60(Auto Adaptive)
AC Output
Rated Capacity (kW) 3.6
Surge Power (kVA) 5.7
Voltage (VAC) 208/220/230/240
Power Factor (PF) 1
Frequency 50/60Hz±0.1%
Switch Time (ms) 10
Wave Form Pure Sine Wave
Overload Capacity (Battery Mode) 60s@102%~110%;10s@110%~130%;3s@130%~150%;0.2s@>150%;
Max. Efficiency (Battery Mode) 92.7%@12VDC
Charger (PV/AC)
Solar Charger Type MPPT
Max PV input current / power 18A/5000W
Operating Voltage Range (VDC) 40~450
Max PV Open Circuit Voltage (VDC) 500
Max PV Charge Current (A) 100
Max AC Charge Current (A) 100
Max. Charge Current (PV + AC) (A) 100
Battery
Normal Voltage (VDC) 24
Floating Charge Voltage (VDC) 27
Overcharge Protection (VDC) 30.5
Battery Type Lithium and Lead-acid
Interface
Reveal LCD
Communication RS485/RS232/USB/Dry Contact
Monitoring WiFi (Opitional)
General Data
Ingress Protection IP21
Operating Temperature -10 *℃~ 50 *℃
Relative Humidity 5% ~95% (Non-condensing)
Storage Temperature -15*℃~60°℃
Max.Operating Altitude 4000m (Derating above 1000m)
DIMENSION
LxWxH (products size, mm) 289*420*110mm
LxWxH (package size, mm) 349*480*170mm


>>>Our Factory

Leveraging our extensive expertise as a long-standing manufacturer in the solar photovoltaic sector, we operate

a state-of-the-art facility dedicated to producing mission-critical components: efficient solar power inverters, dependable

AGM/GEL lead-acid battery chargers, intelligent solar charge controllers, and complementary equipment. Synonymous

with unwavering quality, Sunchonglic products are designed and built to provide consistent, high-performance operation.

Connect with us to discover how our proven solutions can meet your specific energy needs!


>>>Production Process


3600W 24V Pure Sine Wave Inverter MPPT Hybrid  Inverter Charger With UPS DC 24V To AC 220V 1

>>>FAQ


Q1. Are you the factory manufacturer?
A1. We are doing the Solar Energy Photovoltaic Products for over 20 years.
We are the original manufacturer and developer of advanced Solar Energy Photovoltaic
Product,including hybrid solar inverter, power inverter,battery chargers,solar controller,
and solar system,etc.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T,Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and
Mid East etc.


Our products are widely recognized and trusted by our clients and can meet continuously
changing economic and social needs.
We would sincerely welcome new and old customers from over the world to visit and
contact us for future business relationships and mutual success!
