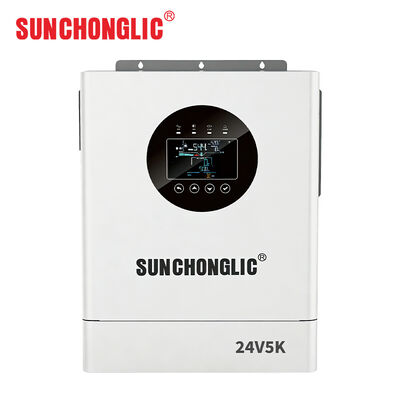

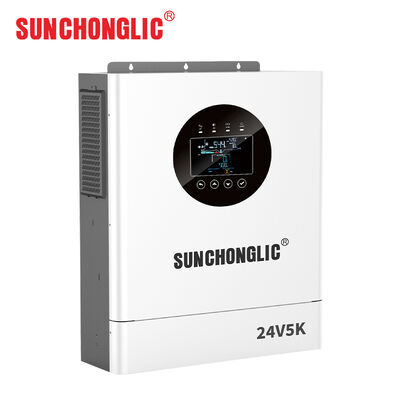

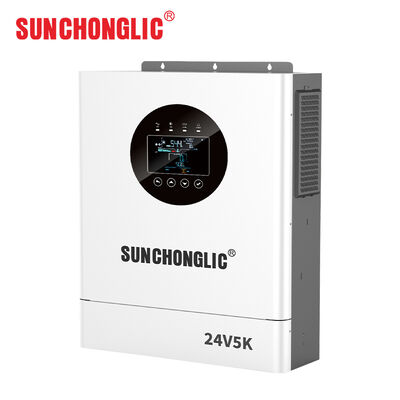

5000W 24V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS DC - AC Inverter

5000W 24V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS DC - AC Inverter

Brand Name: Sunchonglic
Model Number: SUNer-D 5000-24
MOQ: 100pcs
Price: US $9.09-67.82
Payment Terms: T/T
Supply Ability: 100000pcs/mon
Detail Information
Place of Origin:
China
Product Name:
5000W 24V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS DC - AC Inverter
Solar Charger Type:
MPPT
Max. PV Charging Current:
160A
AC Input Voltage Range:
170-280Vac
Max. PV To AC Efficiency:
96.50%
Cooling Method:
Intelligent Fan Cooling
Packaging Details:
Paper Box
Product Description

5000W 24V Pure Sine Wave Inverter MPPT Hybrid  Inverter Charger With UPS DC - AC Inverter


>>>Product Description


What is feature of 5000w 24v pure sine wave inverter mppt hybrid  inverter charger with ups DC - AC Inverter?

  1. Equipped with an LCD display

  2. Boasts a wide MPPT range of 18-125V

  3. Features a power factor of 1.0

  4. Includes a built-in 60A solar charger

  5. Provides pure sine wave output

  6. Offers comprehensive all-around protection

 5000W 24V Pure Sine Wave Inverter MPPT Hybrid  Inverter Charger With UPS DC - AC Inverter 0


>>>Product Specifications


MODEL SUN-D 5000-24
PV Array
Max. PV Array Power 9000W
Max. PV Array Open-Circuit Voltage 500Vdc
Start-up Voltage 80Vdc
MPPT Operating Voltage Range 60-450Vdc
MPPT Efficiency 99.50%
Nominal Input Voltage 360Vdc
Max. Input Current MPPT 27A
Battery
Battery Type lead-acid / Li-ion
Nominal Battery Voltage 24V
Battery Voltage Range 21-29V
Max. AC Charging Current 160A
Max. PV Charging Current 160A
Max. Continuous Discharging Current 160A
AC Input
Nominal Voltage 230Vac
Voltage Range 170-280Vac
Frequency 50Hz(Auto sensing)
High Loss Frequency 65Hz
Low Loss Frequency 45Hz
Max. Input Current 40A
AC Output
Nominal Voltage 230Vac±5%
Output Voltage Waveform Pure Sine Wave
Rated Output Power 5000VA/5000W
Nominal Output Frequency 50/60Hz
Transfer Time 10ms
Max. PV to AC Efficiency 96.50%
Max. Battery to AC Efficiency 93.50%
Protection
Over Temperature Protection Yes
Overload Protection 3s@≥150% load;10s@110%~150% load
General Data
Operating Temperature Range -10 - - +50
Safety Certification CE
Relative Humidity 0~95% Relative Humidity(Non-condensing)
Max. Operating Altitude <4000m
Cooling Method Intelligent Fan cooling
Display LED+LCD
Degree of Protection IP21
Weight 8.5kg
Dimension(W*H*D) 394*109*330mm
Mounting Method Wall Mounted
