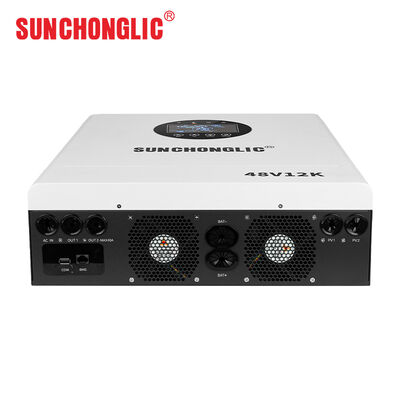

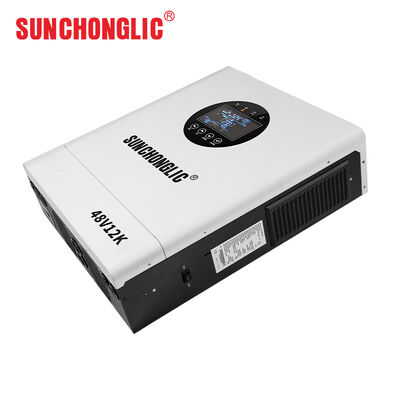

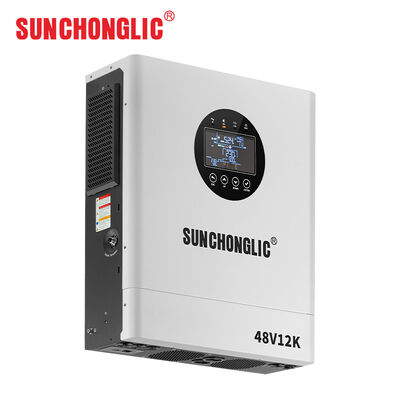

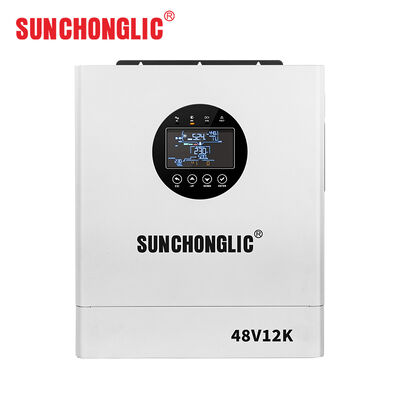

12KW 48V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS DC 24V To AC 220V

Brand Name:	Sunchonglic
Model Number:	SUNer-D 12KW-48
MOQ:	100pcs
Price:	US $9.09-67.82
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

12KW 48V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS DC 24V To AC 220V

AC Output Voltage (VAC):

208/220/230/240

Frequency:

50/60Hz±0.1%

Solar Charger Type:

MPPT

Switch Time (ms):

10(APP/UPS Mode), 20(GEN Mode)

Wave Form:

Pure Sine Wave

Packaging Details:

Paper Box

Product Description

12KW 48V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS DC 24V To AC 220V

>>>Product Description

What is feature of 12kw 48v pure sine wave inverter mppt hybrid inverter charger with ups dc 24v to ac 220v?

1.Support Lithium/Lead-acid Battery
2.9 Inverters in Parallel
3.MAX.PV 9KW
4.Built-in 120A Solar Charger
5.Feed-in to Grid
6.Workable with Generator
7.Wide MPPT Range 120-520V
8.WiFi Monitoring
9.Lithium Battery Activation 12KW 48V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS DC 24V To AC 220V 0

>>>Product Specifications

Model	SUN-D12000-48
AC Input
Rated Input Voltage (VAC)	220/230/240;L+N+PE
Voltage Range (VAC)	90~280±3(normal mode);170~280±3(UPS mode)
Frequency (Hz)	50/60 (Auto Adaptive)
AC Output
Rated Capacity (kW)	12
Surge Power (kVA)	24
Voltage (AC)	220 /230 / 240
Power Factor	1
(PF) Frequency	50/60Hz±0.1%
Switch Time (ms)	10(APP/UPS mode), 20(GEN mode)
Wave Form	Pure Sine Wave
Overload Capacity (Battery Mode)	Imin@102%-125%Load;10s@>125%Load
Max. Efficiency (Battery Mode)	94%@48VDC
Parallel Quantity	NA
Charger (PV/AC)
Solar Charger Type	Dual MPPT
Max PV input current / power	Using One MPPT: 27A9KW, Using Two MPPTs: 22.5AVPer MPPT, 15kW/Total
MPPT Range@Operating Voltage (VDC)	60~450
Max PV Open Circuit Voltage (VDC)	500
Max PV Charge Current (A)	160
Max AC Charge Current (A)	160
Max. Charge Current (PV+AC)(A)	160
Battery
Rated Voltage (VDC)	51.2
Floating Charge Voltage (VDC)	56
Overcharge Protection (VDC)	58.4
Battery	Lithium and Lead-acid
Interface
HMI	LCD
Interface	RS232/RS485/USB
Monitoring	WiFi (optional: none/built-in/external)
General Data
Ingress Protection	IP20
Operating Temperature	-10℃~60℃
Relative Humidity	5%-95%(Non-condensing)
Storage Temperature	-15℃~60℃
(NW/GW)Kg	24.2/26.0
LWH (products size, mm)	425495132mm
LWH (package size, mm)	551491191mm
Max.Operating Altitude	4000m(Derating above 1000m)

>>>Our Factory

We are a seasoned manufacturer with extensive years of experience in the production of Solar Energy

Photovoltaic Products. Our factory specializes in manufacturing a diverse range of products, including

Solar Power Inverters, AGM/GEL Lead Acid Battery Chargers, and Solar Charge Controllers, among others.

For additional details,please reach out to us at any time!

>>>Production Process

12KW 48V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS DC 24V To AC 220V 1
