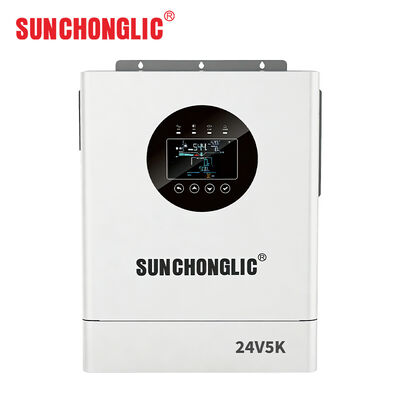

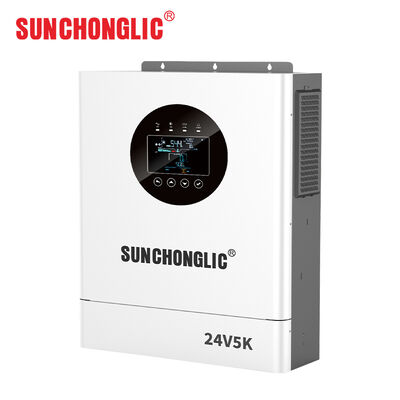

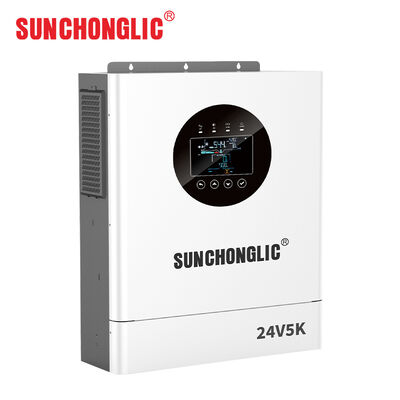

5kw 24v Pure Sine Wave Inverter Mppt Hybrid Home Use Inverter Charger With Ups

5kw 24v Pure Sine Wave Inverter Mppt Hybrid Home Use Inverter Charger With Ups

Brand Name: Sunchonglic
Model Number: SUNer-D 5000-24
MOQ: 100pcs
Price: US $9.09-67.82
Payment Terms: T/T
Supply Ability: 100000pcs/mon
Detail Information
Place of Origin:
China
Product Name:
5KW 24V Pure Sine Wave Inverter MPPT Hybrid Home Use Inverter Charger With UPS
Transfer Time:
10ms
Max. Input Current:
40A
Display:
LED+LCD
Max. PV To AC Efficiency:
96.50%
Cooling Method:
Intelligent Fan Cooling
Packaging Details:
Paper Box
Product Description

5KW 24V Pure Sine Wave Inverter MPPT Hybrid home use  Inverter Charger With UPS


>>>Product Description


What is feature of 5kw 24v pure sine wave inverter mppt hybrid home use  inverter charger with ups?

  1. Integrated Multi-Function Design:Combines an MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function module in one unit, suitable for off-grid backup and self-consumption applications.
  2. Dual Battery System Support:Compatible with both lead-acid and lithium batteries, with dedicated communication ports (RS485/CAN) for lithium battery BMS integration.
  3. Dual AC Outputs with Smart Control:Features two AC outputs (OUT1 and OUT2), with OUT2 capable of being automatically turned off based on battery voltage or usage time to save energy.
  4. Configurable Power Priority Modes:Offers multiple programmable output source priorities (Grid first, Solar first, PBG, MKS) and charging source priorities to optimize energy usage.
  5. Grid-Tie Functionality with Power Control:Supports feeding excess solar power back to the grid in certain modes, with adjustable maximum grid-tie power up to 5.0 kW.
  6. Remote Monitoring via WiFi/APP:Includes built-in or plug-and-play WiFi communication for real-time system monitoring and control via mobile app or web platform.

5kw 24v Pure Sine Wave Inverter Mppt Hybrid Home Use  Inverter Charger With Ups 0


>>>Product Specifications


MODEL SUN-D 5000-24
PV Array
Max. PV Array Power 9000W
Max. PV Array Open-Circuit Voltage 500Vdc
Start-up Voltage 80Vdc
MPPT Operating Voltage Range 60-450Vdc
MPPT Efficiency 99.50%
Nominal Input Voltage 360Vdc
Max. Input Current MPPT 27A
Battery
Battery Type lead-acid / Li-ion
Nominal Battery Voltage 24V
Battery Voltage Range 21-29V
Max. AC Charging Current 160A
Max. PV Charging Current 160A
Max. Continuous Discharging Current 160A
AC Input
Nominal Voltage 230Vac
Voltage Range 170-280Vac
Frequency 50Hz(Auto sensing)
High Loss Frequency 65Hz
Low Loss Frequency 45Hz
Max. Input Current 40A
AC Output
Nominal Voltage 230Vac±5%
Output Voltage Waveform Pure Sine Wave
Rated Output Power 5000VA/5000W
Nominal Output Frequency 50/60Hz
Transfer Time 10ms
Max. PV to AC Efficiency 96.50%
Max. Battery to AC Efficiency 93.50%
Protection
Over Temperature Protection Yes
Overload Protection 3s@≥150% load;10s@110%~150% load
General Data
Operating Temperature Range -10 - - +50
Safety Certification CE
Relative Humidity 0~95% Relative Humidity(Non-condensing)
Max. Operating Altitude <4000m
Cooling Method Intelligent Fan cooling
Display LED+LCD
Degree of Protection IP21
Weight 8.5kg
Dimension(W*H*D) 394*109*330mm
Mounting Method Wall Mounted



>>>Our Factory

As a seasoned manufacturer, we specialize in producing a wide range of solar photovoltaic products, including solar inverters, AGM/GEL lead-acid battery chargers, and solar charge controllers. Our Sunchonglic products are known for their high performance, reliability, and cost-effectiveness. We offer a comprehensive product line, such as pure sine wave inverters, UPS chargers, voltage stabilizers, and both PWM and MPPT solar charge controllers. Backed by advanced testing and a strong R&D team, we continuously optimize our products to meet diverse industry needs. We also provide customized solutions and have a 10,000-square-meter logistics center and complete after-sales support. Our products are widely used in markets across the Middle East, Southeast Asia, Africa, and South America.

If you'd like to learn more or seek technical support, please contact us—we're committed to delivering the best service.


>>>Production Process


5kw 24v Pure Sine Wave Inverter Mppt Hybrid Home Use  Inverter Charger With Ups 1

>>>FAQ


Q1. Are you the factory manufacturer?
A1. We are doing the Solar Energy Photovoltaic Products for over 20 years.
We are the original manufacturer and developer of advanced Solar Energy Photovoltaic
Product,including hybrid solar inverter, power inverter,battery chargers,solar controller,
and solar system,etc.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T,Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and
Mid East etc.


Our products are widely recognized and trusted by our clients and can meet continuously
changing economic and social needs.
We would sincerely welcome new and old customers from over the world to visit and
contact us for future business relationships and mutual success!
