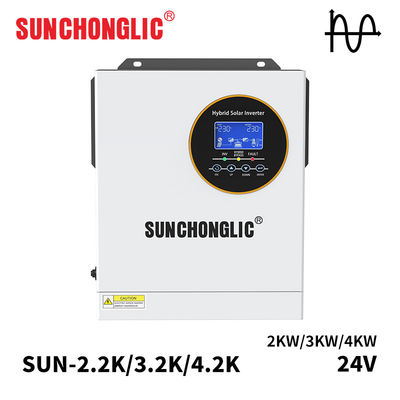

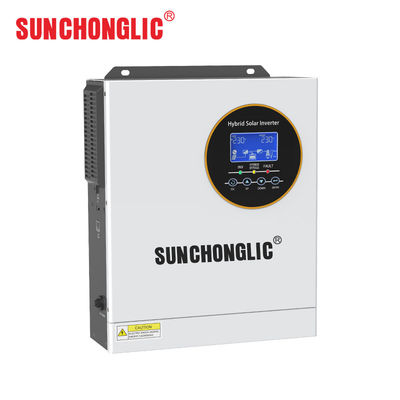

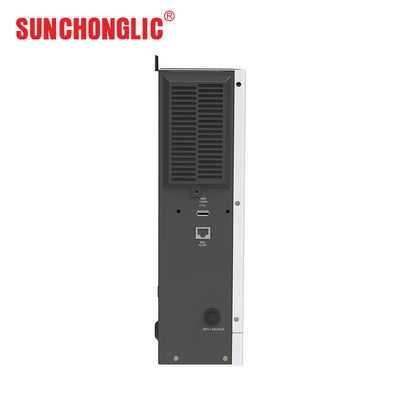

Hybrid Solar Inverter with 450V PV Input 2KW Output and Real Time Monitoring

Hybrid Solar Inverter with 450V PV Input 2KW Output and Real Time Monitoring

Brand Name:	Sunchonglic
Model Number:	SUN 2K12
MOQ:	5pcs
Price:	US $274.62-1273.85
Payment Terms:	,T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Hybrid Solar Power Inverter With 70V - 450V PV Input 230Vac 2KW Output

Output Waveform:

Pure Sine Wave Output

Communication With BMS:

RS485

Communication With Cloud:

WiFi/4G

Battery Type:

Li-ion /lead-acid

MPPT Max Efficiency:

99%

Packaging Details:

Paper Box

Highlight:

4.2KW Output Hybrid Solar Power Inverter

450V Input Hybrid Solar Power Inverter

230Vac Single Phase Hybrid Solar Inverter

Product Description

Hybrid Solar Power Inverter With 450V PV Input 2KW Output 230Vac Real Time Monitoring

Hybrid solar power inverter with 70V - 450V PV input, 230Vac 2KW output featuring advanced monitoring capabilities.

Key Features

Built-in dustproof components for enhanced durability
Capable of operating without battery for flexible installation
Wider PV input voltage range: 60V-450V DC
Excellent solar MPPT performance with efficiency up to 99%
Battery wake-up function for optimized energy management
Excess solar energy can feed into grid (user-configurable)

Technical Specifications

Parameter	SUN 2K12	SUN 3K12
PV Array
Max. PV Array Power	2400W	3600W
Max. PV Array Open-Circuit Voltage	450VDC
Start-up Voltage	70VDC
MPPT Operating Voltage Range	80-400VDC
Nominal Input Voltage	300VDC
Max. Input Current MPPT	15A	18A
MPPT max Efficiency	99%
Battery
Battery Type	Li-ion / lead-acid
Nominal Battery Voltage	12V
Battery Voltage Range	10.5-14.5V
Max. AC Charging Current	50A	100A
Max. PV Charging Current	100A	250A
Max. Continuous Discharging Current	120A	250A
AC Input
Nominal Voltage	230VAC
Voltage Range	170-275VAC
Frequency	50/60Hz (Auto following)
Max. Input Current	15A	25A
AC Output
Nominal Voltage	220/230VAC ±5%
Output Voltage Waveform	Pure Sine Wave
Rated Output Power	2000VA/2000W	3000VA/3000W
Peak Output Power	2800VA	4400VA
Nominal Output Frequency	50/60Hz
Transfer Time	10ms
Efficiency (peak) PV to INV	96.5%
Efficiency (peak) BAT to INV	93.0%
Protection & General Data
Over Temperature Protection	Yes
Overload Protection	3s@2150% load; 10s@110%~150% load
Operating Temperature Range	-10°C to +50°C
Relative Humidity	0-95%
Max. Operating Altitude	<4000m
Cooling Method	Intelligent Fan cooling
Display	LED + LCD
Communication with BMS	RS485
Communication with Cloud	WiFi/4G
Degree of Protection	IP21
Weight	5.9kg	6.1kg
Dimension (WHD mm)	34395275
Mounting Method	Wall Mounted

Manufacturing Expertise

We are a seasoned manufacturer with extensive years of experience in the production of Solar Energy Photovoltaic Products. Our factory specializes in manufacturing a diverse range of products, including Solar Power Inverters, AGM/GEL Lead Acid Battery Chargers, and Solar Charge Controllers, among others.

Opting for products under the Sunchonglic brand is an excellent decision. For more detailed product information, please feel free to get in touch with us without hesitation!

Frequently Asked Questions

Q1. Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced Solar Energy Photovoltaic Products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and solar systems.

Q2. How to select a suitable product?

Tell us your demand, and we will recommend a suitable product for you.

Q3. What is your payment method?

We accept T/T, Trade Assurance, and other payment methods.

Q4. What price terms can you offer for us?

We can accept EXW, FOB, CIF and other international trade terms.

Q5. Where is your main market for your products?

Most of our Sunchonglic brand products are exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by our clients and can meet continuously changing economic and social needs. We would sincerely welcome new and old customers from over the world to visit and contact us for future business relationships and mutual success!
