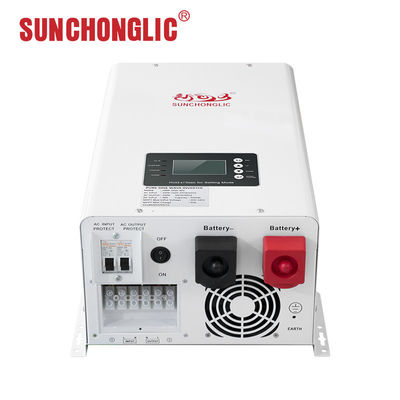

48V 12KW Hybrid Solar Power Inverter with Pure Sine Wave and MPPT Technology

Brand Name:	Sunchonglic
Model Number:	HMP-12KW-48V
MOQ:	5pcs
Price:	US $274.62-1273.85
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

48V 12KW Mppt Hybrid Solar Power Inverter Low Frequency Pure Sine Wave 80A

Peak Capacity:

36W

Charging Current:

60A

PV Input Port:

One Route(60A)

MPPT Efficiency:

≈99%

Output Wave:

Pure Sine Wave

Packaging Details:

Paper Box

Highlight:

48V 12KW Hybrid Solar Inverter

80A 12KW Hybrid Solar Inverter

80A Low Frequency Sine Wave Inverter

Product Description

48V 12KW Hybrid Solar Power Inverter

Low Frequency Pure Sine Wave Inverter with 80A MPPT Charge Controller

Product Features

Pure sine wave output with built-in transformer and AVR stabilizer
Specifically designed to start inductive loads including air conditioners, refrigerators, motors, water pumps, compressors, and laser printers
Built-in 60A/80A/160A MPPT solar controller and AC charger
Output voltage adjustable (200V/210V/220V/230V/240V @50Hz/60Hz)
Compatible with Lead acid, Gel, lithium iron phosphate, ternary lithium, and customized batteries
Optional RS232/RS485 communications ports
3 times start-up peak power capability with excellent loading capacity

Technical Specifications

Parameter	Specification
Model Capacity	12KW
Peak Capacity	36KW
Battery Voltage	48V
MPPT Charging Current	60A
PV Input Port	One route (60A)
PV Input Voltage Range	15V-180V (12V system); 30V-180V (24V system); 60V-180V (48V system)
Max PV Input Capacity	720W (12V system); 1440W (24V system); 2880W (48V system)
Max Charging Current	OFF 30A/60A (PV charging can be switched OFF)
MPPT Efficiency	≈99%
DC Input Voltage Range	10.5VDC-15VDC (single battery voltage 12V)
AC Input Voltage Range	110VAC: (80-130)VAC; 220VAC: (160-260)VAC/(130-280)VAC (adjustable)
AC Input Frequency	45HZ-65HZ auto test
Output Waveform	Pure sine wave
Output Efficiency	≈90%
Output Voltage	200V/210V/220V/230V/240V (adjustable)
Output Frequency	50Hz/60Hz (adjustable)
ECO Mode Power Loss	5W
Working Modes	AC priority, DC priority, ECO mode, unattended mode, generator mode
Battery Types	Lead-acid, GEL, lithium iron phosphate, ternary lithium, customized
Transfer Time	<5ms
Working Temperature	-10℃ to 40℃
Dimensions (LWH)	560390200mm
Net Weight	40kg

Manufacturing Excellence

With over two decades of expertise in solar photovoltaic innovation, we engineer high-efficiency solar power inverters through cutting-edge production technologies. Our robust R&D team and international certifications (ISO, CE) ensure reliable renewable energy solutions for global markets.

Choosing Sunchonglic provides access to cost-effective, sustainable energy solutions with optimized European distribution networks. For detailed specifications or project consultation, please contact our team directly!

Frequently Asked Questions

Are you the factory manufacturer?

We are the original manufacturer and developer of advanced Solar Energy Photovoltaic Products with over 20 years of experience, specializing in hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Tell us your requirements and we will recommend the most suitable solution for your needs.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

What price terms can you offer?

We offer EXW, FOB, CIF, and other international trade terms.

Where are your main markets?

Our Sunchonglic brand products are exported worldwide, with strong presence in Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by clients worldwide, meeting continuously changing economic and social needs. We sincerely welcome new and existing customers to contact us for future business relationships and mutual success!
