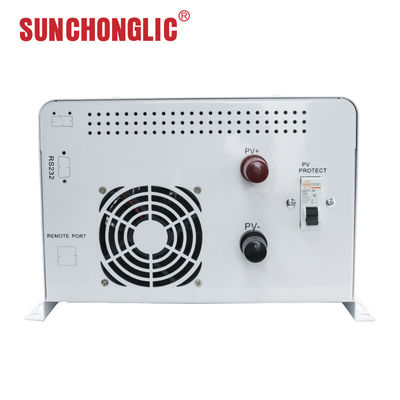

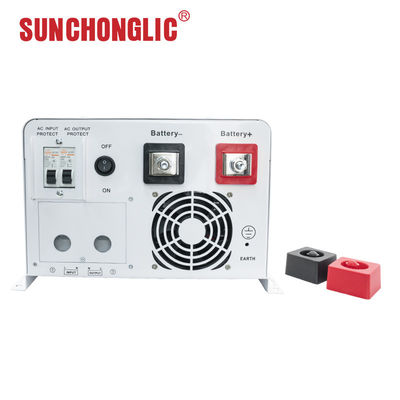

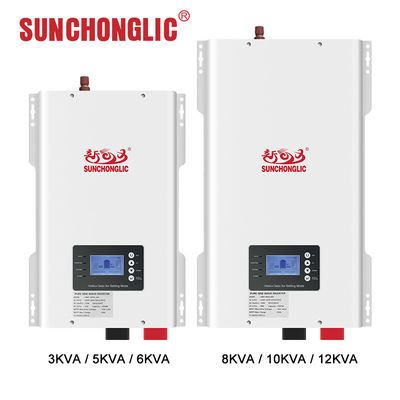

48V 8KW 80A MPPT Hybrid Solar Inverter Low Frequency Pure Sine Wave with Intelligent Temperature Control

Brand Name:	Sunchonglic
Model Number:	HMP-8KW-48V
MOQ:	5pcs
Price:	US $274.62-1273.85
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Mppt Hybrid Inverter Low Frequency Hybrid Solar Inverter 48V 8KW 8000w 80A

Max Charging Current,can Be Adjustable:

OFF 30A/60A(can Switch OFF PV Charging)

Transfer Time:

<5ms

Language:

Chinese/English Can Choose

Packing Size (L*W*Hmm):

715*420*316mm

Heat-dissipating Type:

Intelligent Temperature Control

Packaging Details:

Paper Box

Highlight:

Mppt Low Frequency Hybrid Solar Inverter

Compact Low Frequency Hybrid Solar Inverter

Compact 8kw Single Phase Hybrid Inverter

Product Description

MPPT Low Frequency Hybrid Solar Inverter 48V 80A 8KW

This compact single-phase hybrid solar inverter combines advanced MPPT technology with low-frequency design for superior performance in industrial and residential applications.

Key Features

Pure sine wave output with built-in transformer and AVR stabilizer
Specifically designed to start inductive loads including air conditioners, refrigerators, motors, water pumps, compressors, and laser printers
Built-in 80A MPPT solar controller and AC charger
Compatible with multiple battery types: Lead acid, Gel, Lithium Iron Phosphate, Ternary Lithium, and customized batteries
High conversion efficiency up to 90%
Built-in lithium battery activation function
PV array open circuit input voltage: 230V DC

Technical Specifications

Parameter	Specification
Model Capacity	8KW
Peak Capacity	24KW
Battery Voltage	48V
MPPT Charging Current	80A
PV Input Ports	One route (80A)
PV Input Voltage Range	60V-180V (48V system)
Max PV Input Capacity	2880W (48V system)
MPPT Efficiency	≈99%
Output Waveform	Pure Sine Wave
Output Efficiency	≈90%
Transfer Time	<5ms
Working Temperature	-10℃ to 40℃
Dimensions (LWH)	560390200mm
Net Weight	31.5kg

Manufacturer Profile

Sunchonglic is an experienced solar photovoltaic manufacturer with over 20 years of expertise in producing inverters, AGM/GEL battery chargers, and solar charge controllers. We provide cost-effective energy solutions supported by streamlined European distribution networks.

Frequently Asked Questions

Are you the factory manufacturer?

Yes, we are the original manufacturer and developer of advanced solar energy photovoltaic products with over 20 years of experience, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Simply tell us your requirements and we will recommend the most suitable product for your application.

What payment methods do you accept?

We accept T/T, Trade Assurance, and other secure payment methods.

What price terms can you offer?

We can accommodate various price terms including EXW, FOB, CIF, and others.

Where are your main markets?

Our Sunchonglic brand products are exported worldwide, with strong presence in Southeast Asia, Africa, Middle East, and other regions.

Our products are widely recognized and trusted by clients worldwide, meeting continuously changing economic and social needs. We welcome both new and existing customers to contact us for future business relationships and mutual success!
