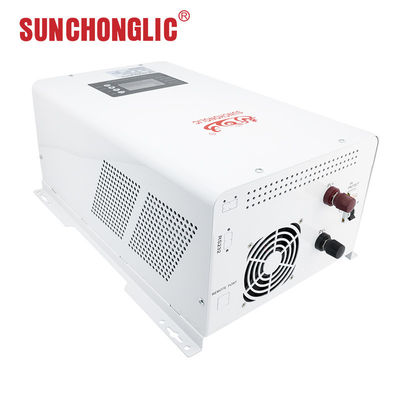

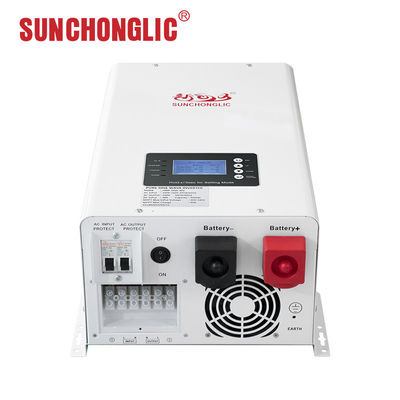

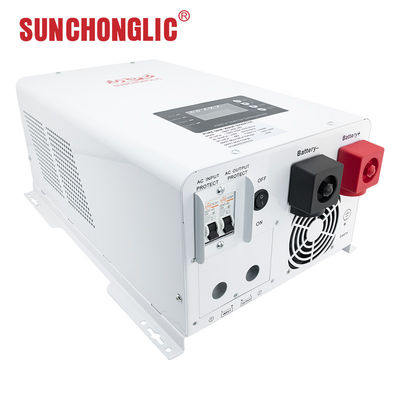

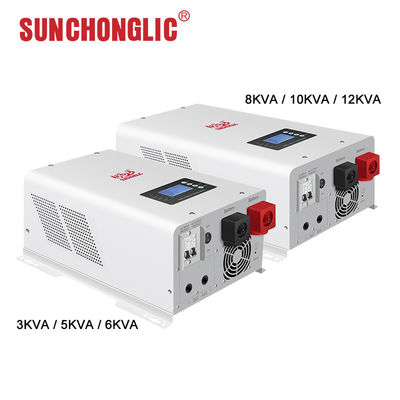

48V 6KW Low Frequency Hybrid Solar Inverter with 80A MPPT and Smart Energy Management

Brand Name:	Sunchonglic
Model Number:	HMP-6KW-48V
MOQ:	5pcs
Price:	US $274.62-1273.85
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

48V 6KW Low Frequency Inverter Hybrid 80A Mppt Solar Hybrid Inverter With AC Charger

Output Voltage:

200V/210V/220V/230V/240V Can Adjust At Site

Net Weight(kg) (About):

28kg

ECO Mode And Loss:

AC Charging Current Can Choose:

OFF(can Switch Off AC Charging Function)

Inverter Size (L*W*Hmm):

495*320*220mm

Packaging Details:

Paper Box

Highlight:

48V 6kw Hybrid Solar Inverter

80A 6kw Hybrid Solar Inverter

AC Charger low frequency solar inverter

Product Description

48V Low Frequency 6kW Hybrid Solar Inverter with Smart Energy Management

This advanced 48V 6kW low frequency hybrid inverter combines solar charging, AC charging, and power inversion in one robust unit. Featuring an 80A MPPT solar controller and built-in AC charger, it delivers reliable power for residential and commercial applications.

Key Features

Pure sine wave output with built-in transformer and AVR stabilizer
Specifically designed for inductive loads (air conditioners, refrigerators, motors, pumps, compressors)
Built-in 60A/80A/160A MPPT solar controller and AC charger
Adjustable output voltage (200V/210V/220V/230V/240V @50Hz/60Hz)
High conversion efficiency up to 90%
Built-in lithium battery activation function
PV array open circuit input voltage: 230V DC

Technical Specifications

Model Capacity	6kW
Peak Capacity	18kW
Battery Voltage	24V/48V
MPPT Charging Current	60A
PV Input Voltage Range	15V-180V (12V system); 30V-180V (24V system); 60V-180V (48V system)
Max PV Input Capacity	720W (12V); 1440W (24V); 2880W (48V)
AC Input Voltage Range	110VAC: 80-130V; 220VAC: 160-260V/130-280V
Output Efficiency	≈90%
ECO Mode Power Loss	5W
Working Modes	AC priority, DC priority, ECO mode, unattended mode, generator mode
Battery Compatibility	Lead-acid, GEL, lithium iron phosphate, ternary lithium, customized
Transfer Time	<5ms
Dimensions (LWH)	495320220mm
Net Weight	28kg

Manufacturer Profile

Sunchonglic, established in 2015, is a professional solar photovoltaic manufacturer with 6,600+㎡ production facilities and a 10,000+㎡ logistics center in Foshan, China. We specialize in comprehensive energy solutions including inverters, solar charge controllers, battery chargers, and UPS systems. With advanced R&D capabilities and extensive European distribution networks, we deliver cost-effective products with rapid response services.

Frequently Asked Questions

Are you the factory manufacturer?
Yes, we are the original manufacturer with over 20 years of experience in solar energy photovoltaic products.
How to select a suitable product?
Tell us your requirements and we will recommend the optimal solution.
What payment methods do you accept?
We accept T/T, Trade Assurance, and other secure payment options.
What price terms can you offer?
We offer EXW, FOB, CIF, and other international trade terms.
Where are your main markets?
Our Sunchonglic brand products are exported to Southeast Asia, Africa, Middle East, and global markets.

Contact us for technical specifications or customized project support!
Our products are widely recognized and trusted by clients globally. We welcome both existing and potential customers worldwide to visit us and establish long-term business partnerships for mutual success.
