Lightweight 4kw Hybrid Solar Inverter with Intelligent Temperature Control and Low Frequency Inverter

Brand Name:	Sunchonglic
Model Number:	HMP-4KW-24V
MOQ:	5pcs
Price:	US $274.62-1273.85
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Toroidalnor Mppt Hybrid Solar Inverter Low Frequency Inverter Hybrid 12V 24V 48V 4kw

Battery Voltage:

12v/24v/48v

Max Charging Current,can Be Adjustable:

OFF 30A/60A(can Switch OFF PV Charging)

DC Input Voltage Range:

10.5VDC-15VDC (single Battery Voltage 12V)

Heat-dissipating Type:

Intelligent Temperature Control

PV Input Voltage Range:

15V-180V(12V System); 30V-180V(24V System); 60V-180V(48V System)

Packaging Details:

Paper Box

Highlight:

Lightweight 4kw Hybrid Solar Inverter

Stable 4kw Hybrid Solar Inverter

Stable Low Frequency Inverter 24v

Product Description

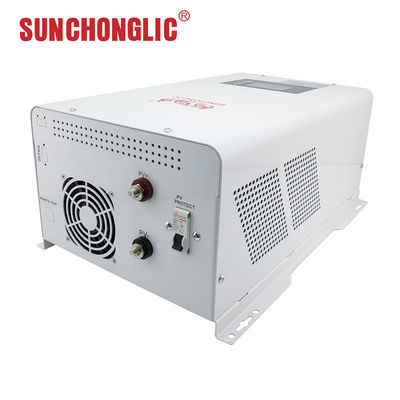

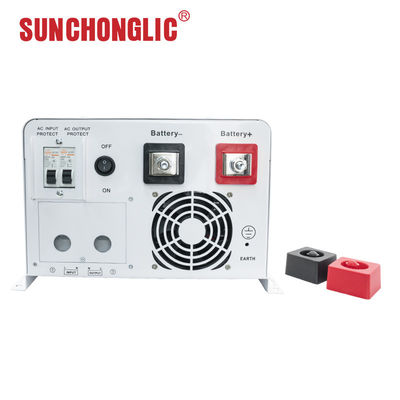

Lightweight 4kW Hybrid Solar Inverter

Toroidalnor MPPT Hybrid Solar Inverter - Low Frequency Inverter Hybrid for 12V, 24V, and 48V Systems up to 4kW

Key Features

Output voltage manually adjustable (200V/210V/220V/230V/240V @50Hz/60Hz)
Compatible with Lead acid, Gel, Lithium Iron Phosphate, Ternary Lithium, and customized batteries
Optional RS232/RS485 Communications port
3 times start-up peak power capability with excellent loading performance
High conversion efficiency up to 90%
Built-in Lithium battery activation function

Technical Specifications

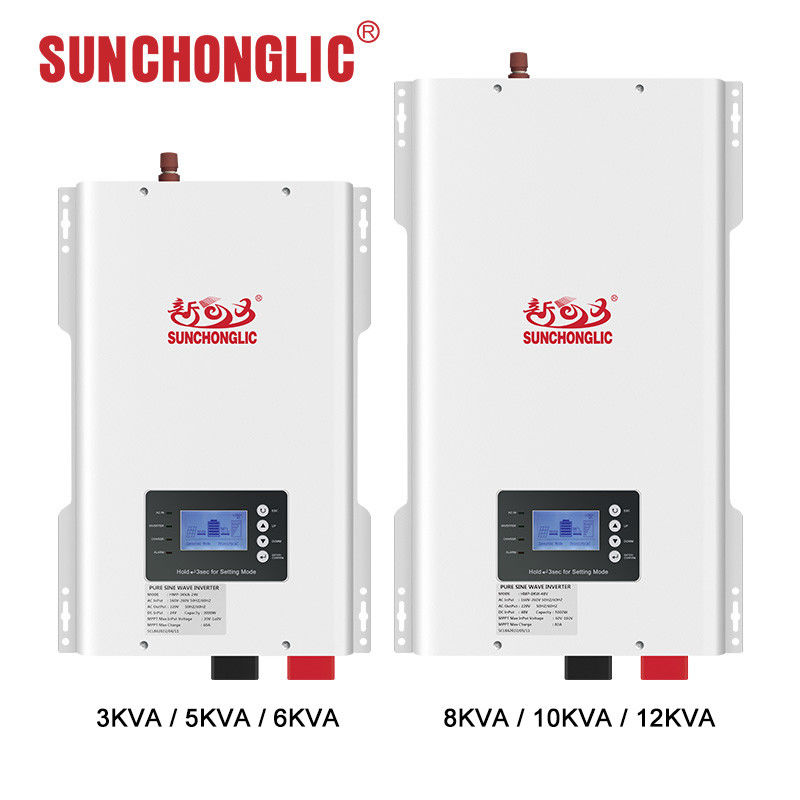

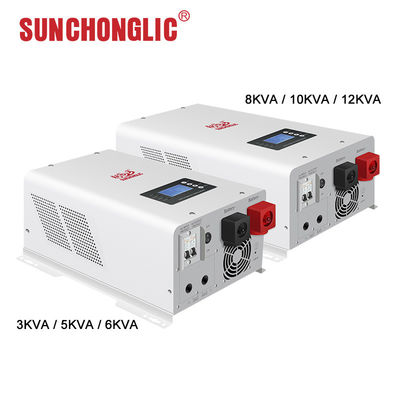

Model Capacity	2kW	3kW	4kW	5kW	6kW	8kW	10kW	12kW
Peak Capacity	6kW	9kW	12kW	15kW	18kW	24kW	30kW	36kW
Battery Voltage	12V/24V/48V	12V/24V/48V	24V/48V	24V/48V	24V/48V	48V	48V	48V
Net Weight (Approx.)	16.5kg	19.5kg	22kg	25kg	28kg	31.5kg	36kg	40kg

MPPT Charging: 60A charging current with single route PV input (60A)
PV Input Voltage Range: 15V-180V (12V system); 30V-180V (24V system); 60V-180V (48V system)
Max PV Input Capacity: 720W (12V), 1440W (24V), 2880W (48V)
MPPT Efficiency: ≈99%
Output Wave: Pure sine wave
Transfer Time: <5ms
Working Temperature: -10℃ to 40℃

Manufacturing Excellence

With over a decade of expertise in solar energy solutions, we are a leading manufacturer specializing in photovoltaic products. Our facility produces high-performance solar power inverters, AGM/GEL lead-acid battery chargers, and solar charge controllers, offering comprehensive solutions for residential and commercial applications.

Frequently Asked Questions

Are you the factory manufacturer?

With over two decades of expertise in solar energy photovoltaic solutions, we are the original manufacturer and technology pioneer specializing in integrated solar products. Our core innovations include hybrid solar inverters that combine inverter and controller functionalities, power inverters, battery chargers, solar controllers, and comprehensive solar systems.

How to select a suitable product?

Tell us your demand, and we will recommend a suitable model for your specific requirements.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

What price terms can you offer?

We can accommodate EXW, FOB, CIF, and other international trade terms.

Where is your main market?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by our clients and can meet continuously changing economic and social needs. We would sincerely welcome new and old customers from over the world to visit and contact us for future business relationships and mutual success!
