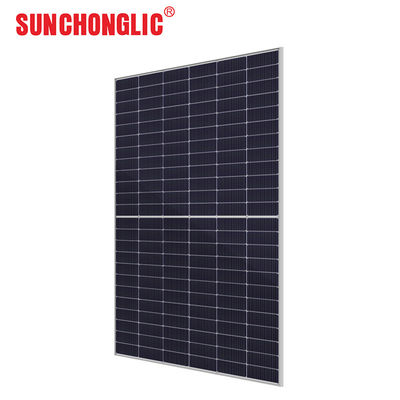

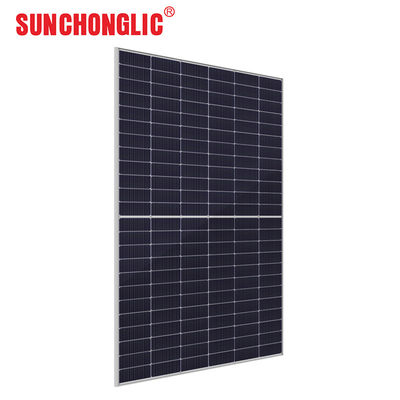

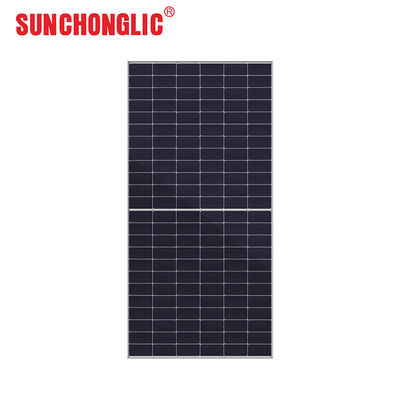

580Wp Solar Panel 1500V DC with N-TOPCon Mono Cells for High Efficiency Photovoltaic Module

Brand Name:	Sunchonglic
Model Number:	SUN 580Wp
MOQ:	20pcs
Price:	Negotiate
Payment Terms:	,T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

580Wp Solar Panel 182m / 144tb 1500v Dc

OperatingTemperature :

40℃~85℃

Type Of Cell:

N-TOPCon Mono

Thickness Of Glass(mm):

2.0

Maximum System Voltage:

1500V DC

Fuse Rating(A):

Packaging Details:

Paper Box

Highlight:

144tb 580Wp Solar Panel

182m 580Wp Solar Panel

1500v Dc 580Wp Solar Panel

Product Description

580Wp Solar Panel 182m / 144tb 1500v DC

Product Features

Light Redirecting Film: TOPCON modules utilize gap Light Redirecting Film technology to ensure bifaciality and reliability while effectively increasing power performance
No-Destructive Cutting: Advanced NDC (non-destructive cutting) technology creates smooth cutting surfaces, preserving cell mechanical structure and ensuring sufficient current flow
Junction Box Laser Welding: High-precision laser welding with accurate positioning control ensures superior welding quality, reliability, and enhanced module safety
Higher Power Output: Module power increases by 5-25% with 0-5W positive tolerance output warranty, delivering significantly lower LCOE and higher IRR
PID Resistance: Excellent anti-PID performance achieved through optimized mass-production processes and material control
Environmental Durability: Certified high salt mist and ammonia resistance by TUV NORD for reliable operation in extreme conditions

Electrical Characteristics (STC*)

Parameter	560	565	570	575	580	585	590	595	600
Rated Power - Pmax (Wp)	560	565	570	575	580	585	590	595	600
Open Circuit Voltage - Voc (V)	52.45	52.61	52.77	52.93	53.09	53.25	53.41	53.57	53.73
Short Circuit Current - Isc (A)	13.47	13.55	13.62	13.69	13.76	13.83	13.89	13.95	14.01
Max. Power Voltage - Vmpp (V)	44.12	44.26	44.39	44.61	44.84	45.06	45.28	45.50	45.72
Max. Power Current - Impp (A)	12.71	12.79	12.85	12.90	12.95	13.00	13.06	13.12	13.18
Module Efficiency (%)	21.67	21.86	22.06	22.25	22.44	22.60	22.80	23.02	23.22

Additional STC Specifications:
Maximum system voltage: 1500V DC
Fuse Rating: 30A
Temperature coefficient Pmax: -0.29%/℃
Temperature coefficient Isc: 0.045%/℃
Temperature coefficient Voc: -0.25%/℃
Reference Bifacial Factor: 80±5%
*STC: Irradiance 1000W/m², module temperature 25℃, AM=1.5

Working Characteristics (NOCT*)

Parameter	421	425	429	432	436	440
Rated Power - Pmax (Wp)	421	425	429	432	436	440
Open Circuit Voltage - Voc (V)	48.13	48.32	48.51	48.70	48.89	49.08
Short Circuit Current - Isc (A)	11.41	11.46	11.50	11.55	11.60	11.65
Max. Power Voltage - Vmpp (V)	39.39	39.52	39.65	39.78	39.87	40.00
Max. Power Current - Impp (A)	10.69	10.75	10.81	10.87	10.94	11.01

Additional NOCT Specifications:
Power tolerance: 0~+3%
NOCT: 45℃±2℃
Operating Temperature: -40℃~85℃
*NOCT: Irradiance 800W/m², ambient temperature 20℃, wind speed 1m/s

Bifacial Performance Characteristics

Rear Side Gain	Pmax (W)	Voc (V)	Isc (A)	Vmpp (V)	Impp (A)
5%	630	53.73	14.71	45.72	13.84

The additional gain from the rear side compared to the power of the front side at standard test condition depends on mounting (structure, height, tilt angle etc.) and albedo of the ground.

Mechanical Characteristics

Number of cells: 144 pcs
Type of frame: Anodized Aluminum Alloy
Type of cell: N-TOPCon Mono
Size of module: 2279 * 1134 * 35 mm
Thickness of glass: 2.0 mm
Weight: 32 kg
Junction box: IP68, 1500V DC, 3 Diodes
Cables/connectors: 4.0mm², MC4 compatible
Length of Cable: +300mm/-200mm (connector included)
Custom cable lengths available

Packaging Configuration

Parameter	Option A	Option B
Height of Modules (mm)	35	30
Number of Modules Per Pallet	31	36
Packaging Box Dimensions (lwh) (mm)	230011201260	230011201260
Box Gross Weight (kg)	1020	1180
Number of Modules Per 40ft (HQ) Container	620	720
Number of Pallets Per 40ft (HQ) Container	20	20

Manufacturer Information

We are a seasoned manufacturer with extensive experience in solar energy photovoltaic products. Our factory specializes in manufacturing a diverse range of products, including Solar Power Inverters, AGM/GEL Lead Acid Battery Chargers, and Solar Charge Controllers, among others.

Opting for products under the Sunchonglic brand is an excellent decision. For more detailed product information, please feel free to get in touch with us without hesitation!

Frequently Asked Questions

Q1. Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced solar energy products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

Q2. How to select a suitable product?

Tell us your requirements, and we will recommend the most suitable product for your needs.

Q3. What is your payment method?

We accept T/T, Trade Assurance, and other secure payment methods.

Q4. What price terms can you offer?

We can accept EXW, FOB, CIF and other international trade terms.

Q5. Where is your main market?

Most of our Sunchonglic brand products are exported to Southeast Asia, Africa, Middle East, and other global markets.

Our products are widely recognized and trusted by our clients and can meet continuously changing economic and social needs. We would sincerely welcome new and old customers from around the world to visit and contact us for future business relationships and mutual success!
