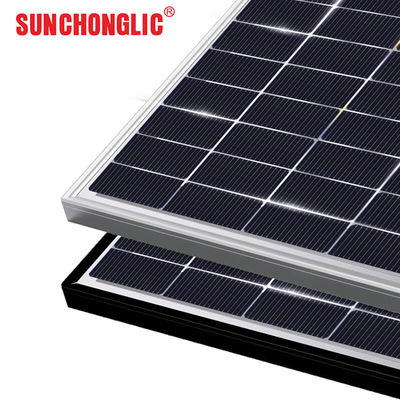

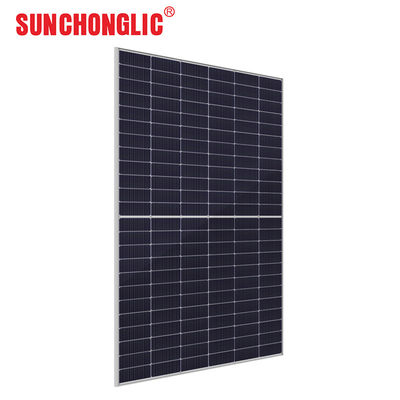

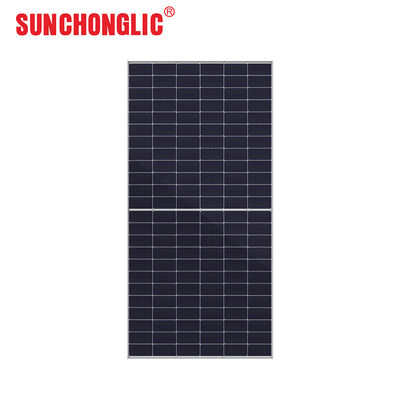

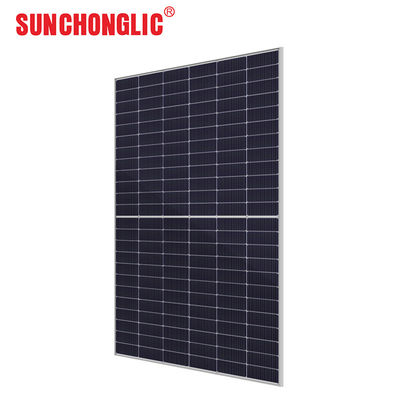

560 Wp Solar Panel with 1500V DC and 2.0mm Glass Thickness for High Efficiency

Brand Name:	Sunchonglic
Model Number:	SUN 560-600W
MOQ:	20pcs
Price:	Negotiate
Payment Terms:	,T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

560wp Solar Panel 182m / 144tb 1500v Dc

OperatingTemperature :

40℃~85℃

Type Of Cell:

N-TOPCon Mono

Thickness Of Glass(mm):

2.0

Maximum System Voltage:

1500V DC

Fuse Rating(A):

Packaging Details:

Paper Box

Highlight:

1500v DC Solar Panel

182m / 144tb Solar Panel

Product Description

560Wp Solar Panel 182m / 144tb 1500V DC

Product Features

Light Redirecting Film: Ronma TOPCon modules use gap Light Redirecting Film technology to ensure bifaciality and reliability while effectively increasing power performance.
No-Destructive Cutting: Ronma cells use NDC (non-destructive) cutting technology with smooth cutting surfaces, avoiding mechanical structure loss and ensuring sufficient current.
Junction Box Laser Welding Technology: Utilizes high energy density and precise positioning control for accurate welding, ensuring quality, reliability, and improved module safety.
Higher Power Output: Module power increases by 5-25% generally, delivering lower LCOE and higher IRR with 0-5W positive tolerance output warranty.
PID Resistance: Excellent anti-PID performance guaranteed through optimized mass-production processes and material control.

Product Specifications

ELECTRICAL CHARACTERISTICS (STC*)

Parameter	560	565	570	575	580	585	590	595	600
Rated Power in Watts-Pmax(Wp)	560	565	570	575	580	585	590	595	600
Open Circuit Voltage-Voc(V)	52.45	52.61	52.77	52.93	53.09	53.25	53.41	53.57	53.73
Short Circuit Current-Isc(A)	13.47	13.55	13.62	13.69	13.76	13.83	13.89	13.95	14.01
Max. Power Voltage-Vmpp(V)	44.12	44.26	44.39	44.61	44.84	45.06	45.28	45.5	45.72
Max. Power Current-Impp(A)	12.71	12.79	12.85	12.9	12.95	13.00	13.06	13.12	13.18
Module Efficiency(%)	21.67	21.86	22.06	22.25	22.44	22.6	22.8	23.02	23.22

Maximum system voltage: 1500V DC
Fuse Rating: 30A
Temperature coefficient Pmax: -0.29%/℃
Temperature coefficient Isc: 0.045%/℃
Temperature coefficient Voc: -0.25%/℃
Refer. Bifacial Factor: 80±5%
*STC: Irradiance 1000W/m², module temperature 25℃, AM=1.5

WORKING CHARACTERISTICS (NOCT*)

Parameter	421	425	429	432	436	440
Rated Power in Watts-Pmax(Wp)	421	425	429	432	436	440
Open Circuit Voltage-Voc(V)	48.13	48.32	48.51	48.7	48.89	49.08
Short Circuit Current-Isc(A)	11.41	11.46	11.5	11.55	11.6	11.65
Max. Power Voltage-Vmpp(V)	39.39	39.52	39.65	39.78	39.87	40.00
Max. Power Current-Impp(A)	10.69	10.75	10.81	10.87	10.94	11.01

Power tolerance: 0~+3%
NOCT: 45℃±2℃
Operating Temperature: -40℃~85℃
*NOCT: Irradiance 800W/m², ambient temperature 20℃, wind speed 1m/s

MECHANICAL CHARACTERISTICS

Number of cells: 144pcs
Type of frame: Anodized Aluminum Alloy
Type of cell: N-TOPCon Mono
Size of module: 2279×1134×35mm
Thickness of glass: 2.0mm
Weight: 32kg
Junction box: IP68, 1500V DC, 3 Diodes
Cables/connectors: 4.0mm², MC4 compatible
Length of Cable: +300mm/-200mm
Customization: Length can be customized (connector included)

PACKAGING CONFIGURATION

Parameter	Option 1	Option 2
Height of Modules (mm)	35	30
Number of Modules Per Pallet	31	36
Packaging Box Dimensions (l×w×h) (mm)	2300×1120×1260	2300×1120×1260
Box Gross Weight (kg)	1020	1180
Number of Modules Per 40ft (HQ) Container	620	720
Number of Pallets Per 40ft (HQ) Container	20	20

Manufacturing Expertise

As an experienced manufacturer with over 20 years in solar energy photovoltaic products, we specialize in Solar Power Inverters, AGM/GEL Lead Acid Battery Chargers, Solar Charge Controllers, and other key components. Sunchonglic products are engineered for excellence and reliability.

Frequently Asked Questions

Q1. Are you the factory manufacturer?

We are the original manufacturer and developer of advanced Solar Energy Photovoltaic Products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

Q2. How to select a suitable product?

Tell us your requirements, and we will recommend the most suitable solution for your needs.

Q3. What is your payment methods?

We accept T/T, Trade Assurance, and other secure payment methods.

Q4. What's the price terms can you offer for us?

We offer various price terms including EXW, FOB, CIF, and more to accommodate your shipping preferences.

Q5. Where is your main market for your products?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, Middle East, and other global markets.

Trusted by clients worldwide, our products adapt to evolving economic and social demands. We invite all customers to connect with us and build successful partnerships.
