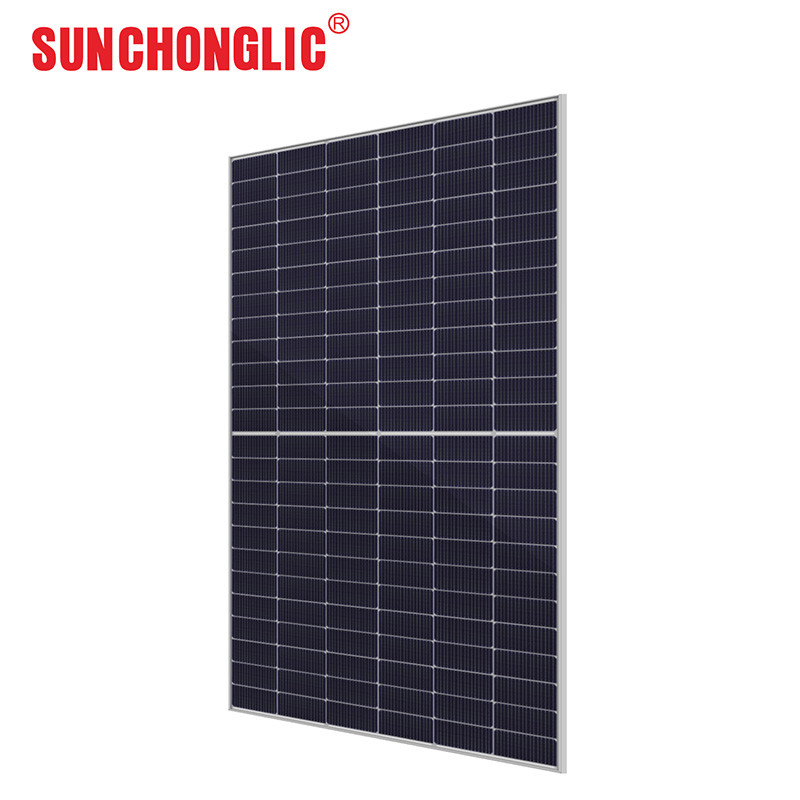

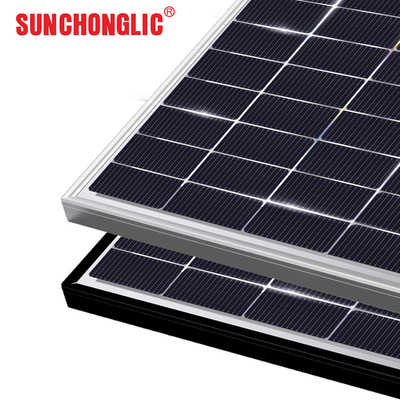

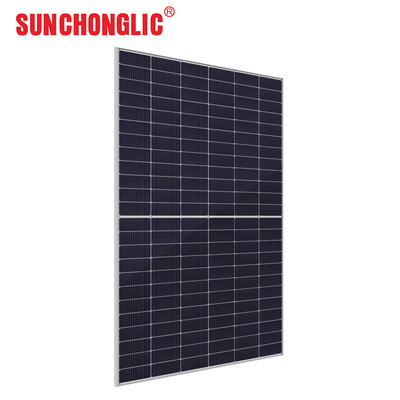

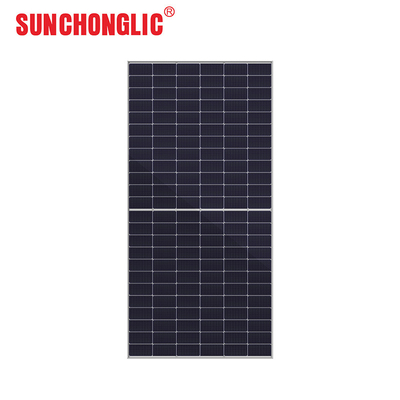

575 Wp Solar Panel 182m / 144tb 1500v Dc Operating Temperature 40C-85C

575 Wp Solar Panel 182m / 144tb 1500v Dc Operating Temperature 40C-85C

Brand Name: Sunchonglic
Model Number: SUN 575Wp
MOQ: 20pcs
Price: Negotiate
Payment Terms: ,T/T
Supply Ability: 100000pcs/mon
Detail Information
Place of Origin:
China
Product Name:
575Wp Solar Panel 182m / 144tb 1500v Dc
OperatingTemperature  :
40℃~85℃
Open Circuit Voltage-VocV):
52.93
Fuse Rating(A):
30
Short Circuit Current-Isc(A):
13.69
Max. Power Voltage-Vmpp(V):
4.61
Packaging Details:
Paper Box
Highlight:

575 Wp Solar Panel

,

575 Wp 144tb Solar Panel

,

144tb Solar Panel

Product Description

575wp Solar Panel 182m / 144tb 1500v Dc


>>>Product Description


What is feature of  575wp solar panel 182m / 144tb 1500v dc  ?

1.Advanced Non-Destructive Cutting (NDC).Maintains cell integrity and minimizes power loss from mechanical damage

2.Laser-Welded Junction Box.Ensures secure connections for improved safety and long-term reliability

3.Excellent Low-Light Performance.Delivers superior power generation under cloudy or dim light conditions

4.Long-Term Warranty.15-year product warranty and 30-year linear power output warranty (≤1% 1st year, ≤0.4% annually thereafter)

5.Light Redirecting Film Technology.Enhances rear-side light absorption while ensuring bifacial module reliability

575 Wp Solar Panel 182m / 144tb 1500v Dc Operating Temperature 40C-85C 0


>>>Product Specifications


ELECTRICAL CHARACTERISTICS (STC*)
Rated Power in Watts-Pmax(Wp) 560 565 570 575 580 585 590 595 600
Open Circuit Voltage-VocV) 52.45 52.61 5277 52.93 53.09 53.25 53.41 53.57 53.73
Short Circuit Current-Isc(A) 13.47 13.55 13.62 13.69 13.76 13.83 13.89 13.95 14.01
Max. Power Voltage-Vmpp(V) 44.12 44.26 44.39 4.61 44.84 45.06 45.28 45.5 45.72
Max, Power Current-Impp(A) 12.71 12.79 1285 12.9 12.95 13.00 13.06 13.12 13.18
Module Efficiency(%) 21.67 21.86 2206 22.25 22.44 22.6 22.8 23.02 23.22
Maximum system voltage 1500V DC
Fuse Rating(A) 30
Temperature coefficient Pmax -0.29%/℃
Temperature coefficient lsc 0.045%/℃
Temperature coefficient Voc -0.25%/℃
Refer. Bifacial Factor 80±5%
*STC:Irradiance 1000W/m2,module temperature 25,AM=1.5

WORKING CHARACTERISTICS (NOCT*)
Rated Power in Watts-Pmax(Wp) 421 425 429 432 436 440
Open Circuit Voltage-Voc(V) 48.13 48.32 48.51 48.7 48.89 49.08
Short Circuit Current-lsc(A) 11.41 11.46 11.5 11.55 11.6 11.65
Max. Power Voltage-Vmpp(V) 39.39 39.52 39.65 39.78 39.87 40.00
Max. Power Current-Impp(A) 10.69 10.75 10.81 10.87 10.94 11.01
Power tolerance 0~+3%
NOCT 45±2
OperatingTemperature                                   40~85
*NOCT:lrradiance 800W/m2,ambient temperature 20, wind speed 1m/s

Electrical characteristics with different rear side power gain
  Pmax/W Voc/V lsc/A Vmpp/V Impp/A
5% 630 53.73 14.71 45.72 13.84

The additional gain from the rear side compared to the power of the front side at the standard test condition.

It depends on mounting (structure, height, tilt angle etc.) and albedo of the ground.


MECHANICAL CHARACTERISTICS
Number of cells 144pcs Type of frame Anodized Aluminum Alloy
Type of cell N-TOPCon Mono Size of module(mm) 2279×1134×35
Thickness of glass(mm) 2.0 Weight(kg) 32
Junction box IP68,1500V DC, 3 Diodes Cables/connectors 4.0mm2, MC4 compatible
Length of Cable +300mm/-200mm Length can be customized    (connectorincluded)

PACKAGING CONFIGURATION
Height of Modules (mm) 35 30
Number of Modules Per Pallet 31 36
Packaging Box Dimensions (lXw×h) (mm) 2300×1120×1260 2300×1120×1260
Box Gross Weight (kg) 1020 1180
Number of Modules Per 40ft (HQ) Container 620 720
Number of Pallets Per 40ft (HQ) Container 20 20
