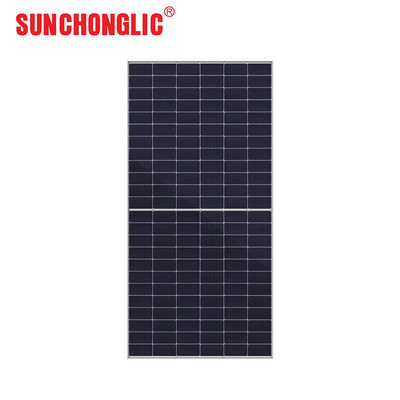

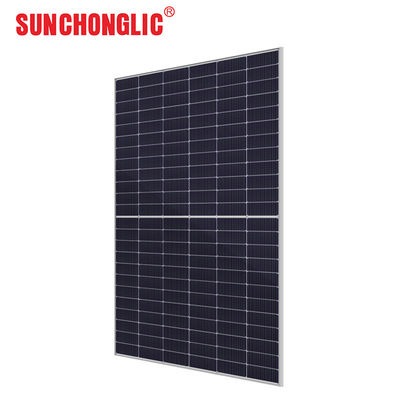

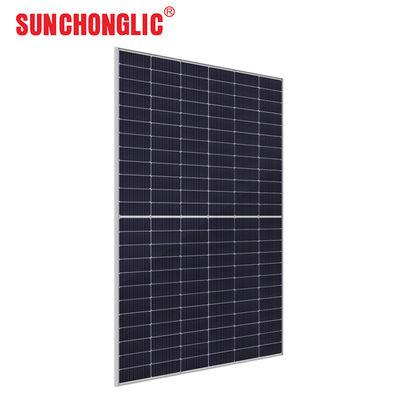

570 Wp Solar Panel with 1500V DC and N-type TOPCon Bifacial Technology for High Efficiency

Brand Name:	Sunchonglic
Model Number:	SUN 570Wp
MOQ:	20pcs
Price:	Negotiate
Payment Terms:	,T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

570 Wp Solar Panel 182m / 144tb 1500v Dc

Max, Power Current-Impp(A):

2206

Maximum System Voltage:

1500V DC

Thickness Of Glass(mm):

2.0

Fuse Rating(A):

Packaging Details:

Paper Box

Highlight:

144Tb Solar Panel

1500V Solar Panel

Product Description

570Wp Solar Panel with 30A Fuse Rating

High-performance 570Wp solar panel featuring N-type TOPCon bifacial technology and 1500V DC system voltage.

Key Features

High Power Output: Rated power from 560W to 600W with positive power tolerance
N-type TOPCon Bifacial Technology: Monocrystalline bifacial cells capture light on both front and rear sides
Significant Bifacial Gain: Rear-side power gain of 5%-25% for lower LCOE and higher IRR
Industry-Leading Efficiency: Maximum module conversion efficiency of 23.22%
Enhanced Environmental Durability: TUV NORD certified for high resistance to salt mist and ammonia corrosion

Electrical Characteristics (STC*)

Parameter	560W	565W	570W	575W	580W	585W	590W	595W	600W
Rated Power Pmax (Wp)	560	565	570	575	580	585	590	595	600
Open Circuit Voltage Voc (V)	52.45	52.61	52.77	52.93	53.09	53.25	53.41	53.57	53.73
Short Circuit Current Isc (A)	13.47	13.55	13.62	13.69	13.76	13.83	13.89	13.95	14.01
Max. Power Voltage Vmpp (V)	44.12	44.26	44.39	44.61	44.84	45.06	45.28	45.50	45.72
Max. Power Current Impp (A)	12.71	12.79	12.85	12.90	12.95	13.00	13.06	13.12	13.18
Module Efficiency (%)	21.67	21.86	22.06	22.25	22.44	22.60	22.80	23.02	23.22

*STC: Irradiance 1000W/m², module temperature 25℃, AM=1.5

Maximum System Voltage: 1500V DC

Fuse Rating: 30A

Temperature Coefficient Pmax: -0.29%/℃

Temperature Coefficient Isc: 0.045%/℃

Temperature Coefficient Voc: -0.25%/℃

Reference Bifacial Factor: 80±5%

Working Characteristics (NOCT*)

Parameter	421W	425W	429W	432W	436W	440W
Rated Power Pmax (Wp)	421	425	429	432	436	440
Open Circuit Voltage Voc (V)	48.13	48.32	48.51	48.70	48.89	49.08
Short Circuit Current Isc (A)	11.41	11.46	11.50	11.55	11.60	11.65
Max. Power Voltage Vmpp (V)	39.39	39.52	39.65	39.78	39.87	40.00
Max. Power Current Impp (A)	10.69	10.75	10.81	10.87	10.94	11.01

*NOCT: Irradiance 800W/m², ambient temperature 20℃, wind speed 1m/s

Power Tolerance: 0~+3%

NOCT: 45℃±2℃

Operating Temperature: -40℃~85℃

Bifacial Performance with 5% Rear Side Gain

Parameter	Value
Pmax (W)	630
Voc (V)	53.73
Isc (A)	14.71
Vmpp (V)	45.72
Impp (A)	13.84

The additional gain from the rear side compared to the power of the front side at standard test condition. It depends on mounting (structure, height, tilt angle etc.) and albedo of the ground.

Mechanical Characteristics

Number of Cells: 144pcs

Type of Frame: Anodized Aluminum Alloy

Type of Cell: N-TOPCon Mono

Size of Module: 2279*1134*35 mm

Thickness of Glass: 2.0 mm

Weight: 32 kg

Junction Box: IP68, 1500V DC, 3 Diodes

Cables/Connectors: 4.0mm², MC4 compatible

Length of Cable: +300mm/-200mm (connector included)

Custom Cable Length: Available upon request

Packaging Configuration

Parameter	Option 1	Option 2
Height of Modules (mm)	35	30
Number of Modules Per Pallet	31	36
Packaging Box Dimensions (lwh) (mm)	230011201260	230011201260
Box Gross Weight (kg)	1020	1180
Number of Modules Per 40ft (HQ) Container	620	720
Number of Pallets Per 40ft (HQ) Container	20	20

Manufacturing Expertise

As a seasoned manufacturer with over 20 years of experience, we specialize in producing a comprehensive range of solar photovoltaic products, including solar inverters, AGM/GEL lead-acid battery chargers, and solar charge controllers. Our Sunchonglic products are renowned for their high performance, reliability, and cost-effectiveness.

Our product line includes pure sine wave inverters, UPS chargers, voltage stabilizers, and both PWM and MPPT solar charge controllers. Backed by advanced testing facilities and a strong R&D team, we continuously optimize our products to meet diverse industry needs. We offer customized solutions and maintain a 10,000-square-meter logistics center with complete after-sales support. Our products are widely used in markets across the Middle East, Southeast Asia, Africa, and South America.

Trusted by clients worldwide, our products adapt to evolving economic and social demands. We invite all customers to connect with us and build successful partnerships.

Frequently Asked Questions

Q1. Are you the factory manufacturer?

We are the original manufacturer and developer of advanced Solar Energy Photovoltaic Products with over 20 years of experience, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

Q2. How to select a suitable product?

Tell us your demand, and we will recommend the most suitable product for your specific requirements.

Q3. What is your payment methods?

We accept T/T, Trade Assurance, and other secure payment methods.

Q4. What's the price terms can you offer for us?

We can accept EXW, FOB, CIF and other international trade terms.

Q5. Where is your main market for your products?

Most of our Sunchonglic brand products are exported to Southeast Asia, Africa, Middle East, and South America.
