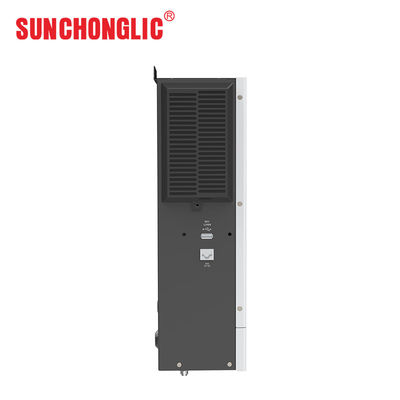

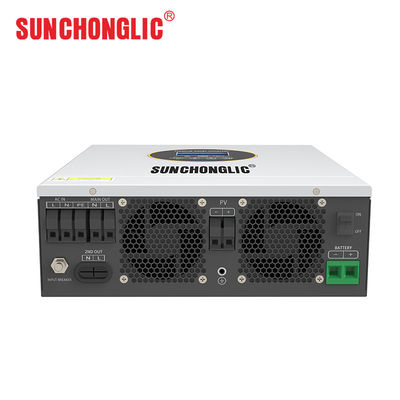

5500KW Hybrid Solar Inverter with 500V PV Input and Split Phase for Efficient Solar Panel Power Conversion

Brand Name:	Sunchonglic
Model Number:	SUN 5.5K48-D120
MOQ:	100pcs
Price:	US $274.62-1273.85
Payment Terms:	,T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

5500KW Single Phase / 240Vac Split Phase Hybrid Solar Inverter With 100V - 500V PV Input

Communication With BMS:

RS485

Efficiency (peak) BAT To IM:

93.0%

Max.Input Current:

40A

Voltage Range:

180-280Vac

Transfer Time:

10ms

Packaging Details:

Paper Box

Highlight:

Solar Panel Power Inverter

5500KW Solar Panel Power Inverter

Product Description

5500KW Hybrid Solar Inverter with 500V PV Input

5500KW Single Phase / 240Vac Split Phase Hybrid Solar Inverter With 100V - 500V PV Input

Product Features

Dual Voltage Output: Supports both 120Vac single-phase and 240Vac split-phase output (±5% precision) with pure sine wave, adaptable to global grid standards (180-280Vac, 50/60Hz auto-switching)
Battery-Free Operation: Runs without external batteries, directly converting solar energy to AC power, reducing cost and complexity for off-grid use
99% MPPT Efficiency: Industry-leading 99% MPPT efficiency with ultra-wide PV input range (100-500VDC), maximizing energy harvest in all conditions
Rugged & Dustproof Design: Built-in dustproof components and wide operating range (-10°C to 50°C, 0-99% humidity, <4,000m altitude) ensure reliability in harsh environments
Smart Energy Monitoring: Tracks total/daily solar generation via WiFi/4G/RS485 connectivity, enabling remote management and performance analysis

Product Specifications

MODEL	SUN 5.5K48-D120	SUN 6.2K48-D120
PV Array
Max. PV Array Power	6600W	7200W
Max. PV Array Open-Circuit Voltage	500VDC
Start-up Voltage	100VDC
MPPT Operating Voltage Range	120-450VDC
Nominal Input Voltage	360VDC
Max. Input Current MPPT	20A
MPPT max Efficiency	99%
Battery
Battery Type	Li-ion / lead-acid
Nominal Battery Voltage	48V
Battery Voltage Range	41-58V
Max. AC Charging Current	40A
Max. PV Charging Current	100A
Max. Continuous Discharging Current	120A
AC Input
Nominal Voltage	240Vac (split phase)
Voltage Range	180-280Vac
Frequency	50/60Hz (Auto following)
Max. Input Current	40A
AC Output
Nominal Voltage	120Vac±5%/240Vac±5%
Output Voltage Waveform	Pure Sine Wave
Rated Output Power	5500VA/5500W	6200VA/6200W
Peak Output Power	8000VA	8800VA
Nominal Output Frequency	50/60Hz
Transfer Time	10ms
Efficiency (peak) PV to INV	96.5%
Efficiency (peak) BAT to INV	93.0%
General Data
Operating Temperature Range	-10°C to +50°C
Relative Humidity	0-95%
Max. Operating Altitude	< 4000m
Cooling Method	Intelligent Fan cooling
Display	LED + LCD
Communication with BMS	RS485
Communication with Cloud	WiFi/4G
Degree of Protection	IP21
Weight (kg)	9
Dimension (WDH mm)	373105300
Mounting Method	Wall Mounted

Our Manufacturing Expertise

As a seasoned manufacturer with over 20 years of experience, we specialize in solar photovoltaic products, including inverters, AGM/GEL battery chargers, and solar charge controllers. Our Sunchonglic products are known for high performance, reliability, and cost-effectiveness. We offer a wide range of solutions, including pure sine wave inverters, UPS chargers, and both PWM and MPPT controllers. Backed by advanced testing and R&D, we provide customized solutions and have a 10,000-square-meter logistics center and strong after-sales support. Our products are used in markets across the Middle East, Southeast Asia, Africa, and South America.

Production Process

Frequently Asked Questions

Q1. Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced Solar Energy Photovoltaic Products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and solar systems.

Q2. How to select a suitable product?

Tell us your requirements, and we will recommend the most suitable product for your needs.

Q3. What is your payment methods?

We accept T/T, Trade Assurance, and other payment methods.

Q4. What's the price terms can you offer for us?

We can accept EXW, FOB, CIF and other international trade terms.

Q5. Where is your main market for your products?

Most of our Sunchonglic brand products are exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by our clients and can meet continuously changing economic and social needs. We would sincerely welcome new and old customers from over the world to visit and contact us for future business relationships and mutual success!
