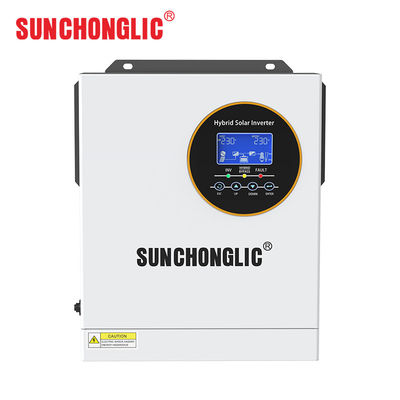

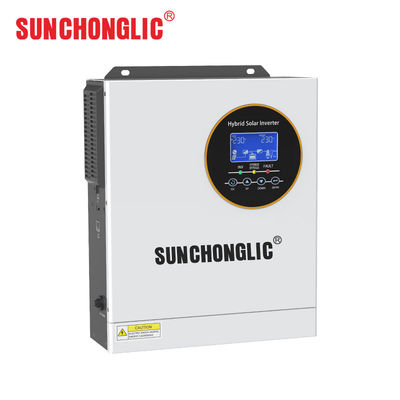

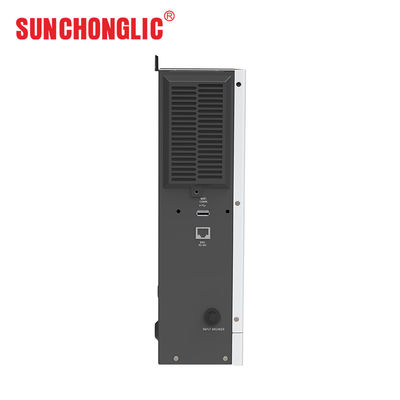

6.2KW Hybrid Solar Inverter with 500V PV Input and 99% MPPT Efficiency for Dual-Source Power

Brand Name:	Sunchonglic
Model Number:	SUN 6.2K48
MOQ:	5pcs
Price:	US $274.62-1273.85
Payment Terms:	,T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Hybrid Solar Power Inverter With 100V - 500V PV Input 230Vac 5.5KW / 6.2KW Output Dual-Source

Battery Voltage Range:

41-58V

Battery Type:

Lead-acid /Li-ion

MPPT Max Efficiency:

99%

Start-up Voltage:

100VDC

Max. PV Array Power:

7200W

Packaging Details:

Paper Box

Highlight:

500V PV Input Inverter

Energy Efficiency Hybrid Solar Inverter

6.2KW Hybrid Solar Inverter

Product Description

6.2KW Hybrid Solar Inverter With 500V PV Input Energy Efficiency

Hybrid Solar Power Inverter With 100V - 500V PV Input

230Vac 5.5KW / 6.2KW Output Dual-Source Inverter

Product Features

Integrated dust-resistant design for enhanced durability
Battery-free operation capability
High-efficiency solar MPPT system achieving up to 99% efficiency
Battery activation feature for optimal performance
Supports communication with battery BMS using RS-485 interface
Excess energy can be exported to the grid with customizable settings

Technical Specifications

MODEL	SUN 5.5K48	SUN 6.2K48
PV Array
Max. PV Array Power	6600W	7200W
Max. PV Array Open-Circuit Voltage	500VDC
Start-up Voltage	100VDC
MPPT Operating Voltage Range	120-450VDC
Nominal Input Voltage	360VDC
Max. Input Current MPPT	20A
MPPT max Efficiency	99%
Battery
Battery Type	lead-acid / Li-ion
Nominal Battery Voltage	48V
Battery Voltage Range	41-58V
Max. AC Charging Current	50A
Max. PV Charging Current	100A
Max. Continuous Discharging Current	120A
AC Input
Nominal Voltage	230VAC
Voltage Range	170-275VAC
Frequency	50/60Hz (Auto following)
Max. Input Current	40A
AC Output
Nominal Voltage	220/230VAC±5%
Output Voltage Waveform	Pure Sine Wave
Rated Output Power	5500VA/5500W	6200VA/6200W
Peak Output Power	8000VA	8800VA
Nominal Output Frequency	50/60Hz
Transfer Time	10ms
Efficiency (peak) PV to INV	96.5%
Efficiency (peak) BAT to INV	93.0%
General Data
Operating Temperature Range	-10°C to +50°C
Relative Humidity	0-95%
Max. Operating Altitude	< 4000m
Cooling Method	Intelligent Fan cooling
Display	LED + LCD
Communication with BMS	RS485
Communication with Cloud	WiFi/4G
Degree of Protection	IP21
Weight (kg)	8.4
Dimension (WHD mm)	363105300
Mounting Method	Wall Mounted

Manufacturing Excellence

Our company is a professional manufacturer of solar photovoltaic products with extensive industry experience. We specialize in producing a comprehensive range of products including solar inverters, AGM/GEL lead-acid battery chargers, and solar charge controllers. Choosing Sunchonglic-branded products ensures superior quality and reliability.

For more information, please feel free to contact us at any time!

Frequently Asked Questions

Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced Solar Energy Photovoltaic Products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Tell us your requirements and we will recommend the most suitable product for your needs.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

What price terms can you offer?

We can accommodate EXW, FOB, CIF, and other international trade terms.

Where is your main market?

Most of our Sunchonglic brand products are exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by our clients and can meet continuously changing economic and social needs.

We sincerely welcome new and existing customers from around the world to visit and contact us for future business relationships and mutual success!
