3KW Hybrid Solar Inverter with 450V PV Input and 230Vac Output for Real-Time Monitoring

Brand Name:	Sunchonglic
Model Number:	SUN 3K12
MOQ:	5pcs
Price:	US $274.62-1273.85
Payment Terms:	,T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

3KWHybrid Solar Power Inverter With 70V - 450V PV Input 230Vac

Max, Inout Current MPPT:

18A

Max. PV Charging Current:

250A

Nominal Voltage:

250VAC

Max. Inout Current:

25A

Efficiency(peak) PV To INV:

96.5%

Packaging Details:

Paper Box

Highlight:

450V PV Input Hybrid Inverter

3KW Hybrid Power Inverter

Real Time Monitoring Inverter

Product Description

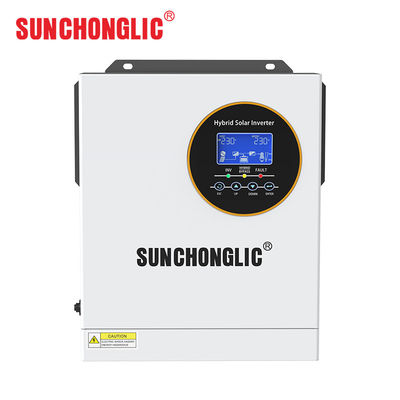

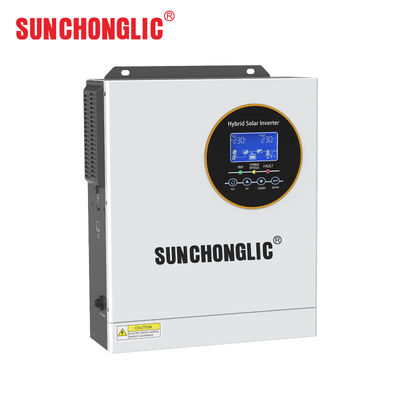

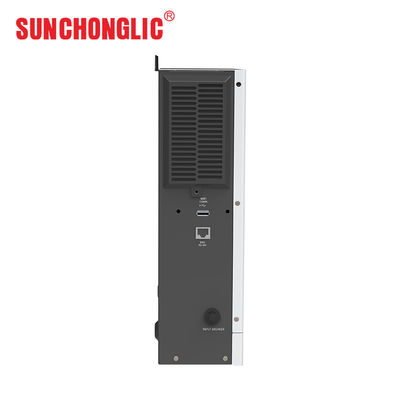

3KW Hybrid Solar Power Inverter With 450V PV Input 230Vac Real Time Monitoring

High-performance 3KW hybrid solar power inverter featuring 70V-450V PV input range and 230Vac output with real-time monitoring capabilities.

Key Features

Built-in dustproof components for enhanced durability
Operates without battery when needed
Wider PV input range: 60-450Vdc
99% efficiency MPPT performance
Battery wake-up function
Grid-feed for excess energy (user-settable)

Technical Specifications

Parameter	SUN 2K12	SUN 3K12
PV Array
Max. PV Array Power	2400W	3600W
Max. PV Array Open-Circuit Voltage	450VDC
Start-up Voltage	70VDC
MPPT Operating Voltage Range	80-400VDC
Nominal Input Voltage	300VDC
Max. Input Current MPPT	15A	18A
MPPT max Efficiency	99%
Battery
Battery Type	Li-ion / lead-acid
Nominal Battery Voltage	12V
Battery Voltage Range	10.5-14.5V
Max. AC Charging Current	50A	100A
Max. PV Charging Current	100A	250A
Max. Continuous Discharging Current	120A	250A
AC Input
Nominal Voltage	230VAC
Voltage Range	170-275VAC
Frequency	50/60Hz (Auto following)
Max. Input Current	15A	25A
AC Output
Nominal Voltage	220/230VAC±5%
Output Voltage Waveform	Pure Sine Wave
Rated Output Power	2000VA/2000W	3000VA/3000W
Peak Output Power	2800VA	4400VA
Nominal Output Frequency	50/60Hz
Transfer Time	10ms
Efficiency (peak) PV to INV	96.5%
Efficiency (peak) BAT to INV	93.0%
Protection
Over Temperature Protection	Yes
Overload Protection	3s@2150% load; 10s@110%~150% load
General Data
Operating Temperature Range	-10°C to +50°C
Relative Humidity	0-95%
Max. Operating Altitude	<4000m
Cooling Method	Intelligent Fan cooling
Display	LED + LCD
Communication with BMS	RS485
Communication with Cloud	WiFi/4G
Degree of Protection	IP21
Weight (kg)	5.9	6.1
Dimension (WHD mm)	34395275
Mounting Method	Wall Mounted

Manufacturing Excellence

As a seasoned manufacturer with over 20 years of experience, we specialize in producing a comprehensive range of solar photovoltaic products, including solar inverters, AGM/GEL lead-acid battery chargers, and solar charge controllers. Our Sunchonglic products are renowned for their high performance, reliability, and cost-effectiveness. We offer an extensive product line including pure sine wave inverters, UPS chargers, voltage stabilizers, and both PWM and MPPT solar charge controllers. Backed by advanced testing facilities and a dedicated R&D team, we continuously optimize our products to meet diverse industry requirements. We provide customized solutions and maintain a 10,000-square-meter logistics center with complete after-sales support. Our products are widely used in markets across the Middle East, Southeast Asia, Africa, and South America.

Frequently Asked Questions

Are you the factory manufacturer?

We are the original manufacturer and developer of advanced Solar Energy Photovoltaic Products with over 20 years of experience, specializing in hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Tell us your specific requirements and we will recommend the most suitable product for your needs.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment methods.

What price terms can you offer?

We can accommodate EXW, FOB, CIF, and other international trade terms.

Where is your main market?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by clients worldwide and can meet continuously changing economic and social needs. We sincerely welcome new and existing customers from around the world to contact us for future business relationships and mutual success!
