Brand Name: | Sunchonglic |
Model Number: | SUN 3K12 |
MOQ: | 5pcs |
Price: | US $274.62-1273.85 |
Payment Terms: | ,T/T |
Supply Ability: | 100000pcs/mon |

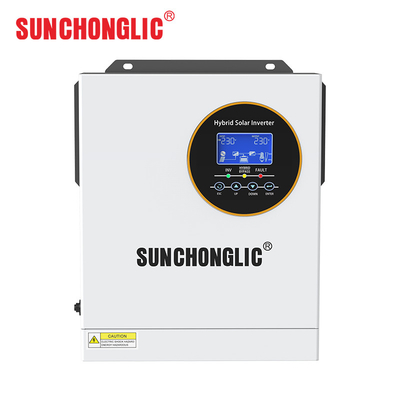

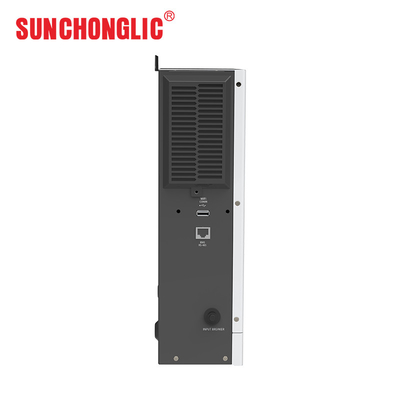

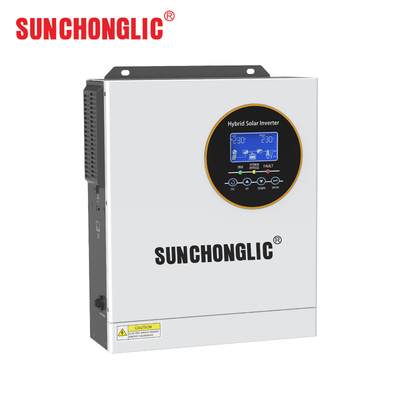

What is feature of 3KW hybrid solar power inverter with 70V - 450V PV input 230Vac ?
1.Built-in dustproof components
2.Operates without battery
3.Wider PV input range: 60-450Vdc
4.99% efficiency MPPT performance
5.Battery wake-up function
6.Grid-feed for excess energy (user-settable)
>>>Product Specifications
MODEL | SUN 2K12 | SUN 3K12 |
PV Array | ||
Max.PV Array Power | 2400W | 3600W |
Max.PV Array Open-Circuit Voltage | 450VDC | |
Start-up Voltage | 70VDC | |
MPPT Operating Voltage Range | 80-400VDC | |
Nominal Input Voltage | 300VDC | |
Max, Inout Current MPPT | 15A | 18A |
MPPT max Efficiency | 99% | |
Battery | ||
Battery Type | Li-ion /lead-acid | |
Nominal Battery Voltage | 12V | |
Battery Voltage Range | 10.5-14.5V | |
Max. AC Charging Current | 50A | 100A |
Max. PV Charging Current | 100A | 250A |
Max. Continuous Discharging Current | 120A | 250A |
AC Input | ||
Nominal Voltage | 230VAC | |
Voltage Range | 170-275VAC | |
Frequency | 50/60Hz(Auto following) | |
Max. Inout Current | 15A | 25A |
AC Output | ||
Nominal Voltage | 220/230VAC±5% | |
Output Voltage Waveform | Pure Sine Wave | |
Rated Output Power | 2D0DVA/2000W | 3000VA/3000W |
Peak Qutput Power | 2800VA | 4400VA |
Nominal Output Fregency | 50/60Hz | |
Transfer Time | 10ms | |
Efficiency(peak) PV to INV | 96.5% | |
Efficiency(peak) BAT to INY | 93.0% | |
Protection | ||
Over Temperature Protection | Yes | |
Overload Protection | 3s@2150% load;10s@110%~150% load | |
General Data | ||
Operating Temperature Range | -10--+50℃ | |
Relative Humidity | 0c095% | |
Max.Operating Altitude | <4000m | |
Cooling Method | Intelligent Fan cooling | |
Display | LED + LCD | |
Communication with BMS | RS485 | |
Communication with Cloud | WiFi/4G | |
Degree of Protection | IP21 | |
Weight(kg) | 5.9 | 6.1 |
Dimension(W*H*Dmm) | 343*95 275 | |
Mounting Method | Wall Mounted |
As a seasoned manufacturer, we specialize in producing a wide range of solar photovoltaic products, including solar inverters, AGM/GEL lead-acid battery chargers, and solar charge controllers. Our Sunchonglic products are known for their high performance, reliability, and cost-effectiveness. We offer a comprehensive product line, such as pure sine wave inverters, UPS chargers, voltage stabilizers, and both PWM and MPPT solar charge controllers. Backed by advanced testing and a strong R&D team, we continuously optimize our products to meet diverse industry needs. We also provide customized solutions and have a 10,000-square-meter logistics center and complete after-sales support. Our products are widely used in markets across the Middle East, Southeast Asia, Africa, and South America.
If you'd like to learn more or seek technical support, please contact us—we're committed to delivering the best service!
Q1. Are you the factory manufacturer?
A1. We are doing the Solar Energy Photovoltaic Products for over 20 years.
We are the original manufacturer and developer of advanced Solar Energy Photovoltaic
Product,including hybrid solar inverter, power inverter,battery chargers,solar controller,
and solar system,etc.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T,Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and
Mid East etc.
Our products are widely recognized and trusted by our clients and can meet continuously
changing economic and social needs.
We would sincerely welcome new and old customers from over the world to visit and
contact us for future business relationships and mutual success!
