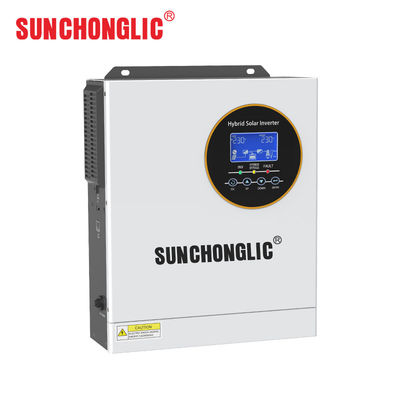

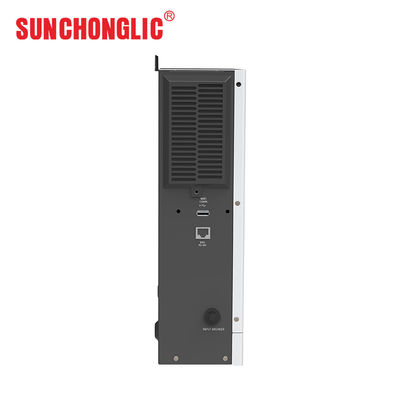

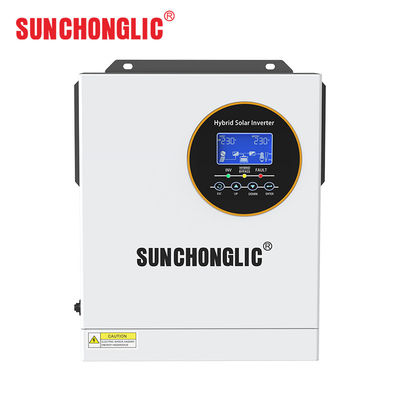

3.2kw Output 230VAC Hybrid Solar Inverter with 70V-450V PV Input for Efficient Energy Conversion

Brand Name:	Sunchonglic
Model Number:	SUN 3.2KW24
MOQ:	100pcs
Price:	US $274.62-1273.85
Payment Terms:	,T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

3.2kw 230vac Output Hybrid Solar Inverter With 70V-450V PV Input And 2KW 230Vac Output

Max. Continuous Discharging Current:

100A

Voltage Range:

170-275VAC

Frequency:

50/60Hz (Auto Following)

Display:

Display

Mounting Method:

Wall Mounted

Packaging Details:

Paper Box

Highlight:

3.2kw hybrid solar inverter

230vac hybrid solar inverter

70v-450v pv input inverter

Product Description

3.2kW 230VAC Output Hybrid Solar Inverter with 70V-450V PV Input

Product Features

Built-in dustproof design for enhanced durability
Capable of operating without battery backup
Wider PV input voltage range: 60V-450V DC
Comprehensive PV generation monitoring with total and daily energy tracking
Battery BMS communication via RS-485 interface
Configurable grid feed-in for excess solar energy

Technical Specifications

MODEL	SUN 2.2K24	SUN 3.2K24	SUN 4.2K24	SUN 4.2K48
PV Array
Max. PV Array Power	2400W	3600W	4600W	4600W
Max. PV Array Open-Circuit Voltage	450VDC
Start-up Voltage	80VDC
MPPT Operating Voltage Range	70-400VDC
Nominal Input Voltage	300VDC
Max. Input Current MPPT	18A
MPPT max Efficiency	99%
Battery
Battery Type	Li-ion / lead-acid
Nominal Battery Voltage	24V	24V	24V	48V
Battery Voltage Range	21-29V	21-29V	21-29V	41-58V
Max. AC Charging Current	40A	40A	40A	40A
Max. PV Charging Current	80A	80A	100A	60A
Max. Continuous Discharging Current	80A	100A	120A	80A
AC Input
Nominal Voltage	230VAC
Voltage Range	170-275VAC
Frequency	50/60Hz (Auto following)
Max. Input Current	20A / 25A
AC Output
Nominal Voltage	220/230VAC ±5%
Output Voltage Waveform	Pure Sine Wave
Rated Output Power	2200VA/2200W	3200VA/3200W	4200VA/4200W	4200VA/4200W
Peak Output Power	3200VA	4400VA	6100VA	6100VA
Nominal Output Frequency	50/60Hz
Transfer Time	10ms
Efficiency (peak) PV to INV	96.5%
Efficiency (peak) BAT to INV	93.0%
General Data
Operating Temperature Range	-10°C to +50°C
Relative Humidity	0-95%
Max. Operating Altitude	< 4000m
Cooling Method	Intelligent Fan cooling
Display	LED + LCD
Communication with BMS	RS485
Communication with Cloud	WiFi/4G
Degree of Protection	IP21
Weight (kg)	5.9	6.1	6.1	6.1
Dimension (W×H×D mm)	343×95×275
Mounting Method	Wall Mounted

Manufacturer Profile

We are an established manufacturer of solar photovoltaic products with many years of experience. Our factory produces solar power inverters, AGM/GEL lead-acid battery chargers, solar charge controllers, and related equipment. Sunchonglic products provide reliable performance and quality. Contact us for detailed product information!

Production Process

Frequently Asked Questions

Q1. Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced Solar Energy Photovoltaic Products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and solar systems.

Q2. How to select a suitable product?

Tell us your requirements, and we will recommend the most suitable product for your needs.

Q3. What is your payment methods?

We accept T/T, Trade Assurance, and other secure payment methods.

Q4. What's the price terms can you offer for us?

We can accept EXW, FOB, CIF and other international trade terms.

Q5. Where is your main market for your products?

Most of our Sunchonglic brand products are exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by our clients and can meet continuously changing economic and social needs. We would sincerely welcome new and old customers from over the world to visit and contact us for future business relationships and mutual success!
