Brand Name: | Sunchonglic |
Model Number: | SUN 4.2KW48 |
MOQ: | 100pcs |
Price: | US $274.62-1273.85 |
Payment Terms: | ,T/T |
Supply Ability: | 100000pcs/mon |

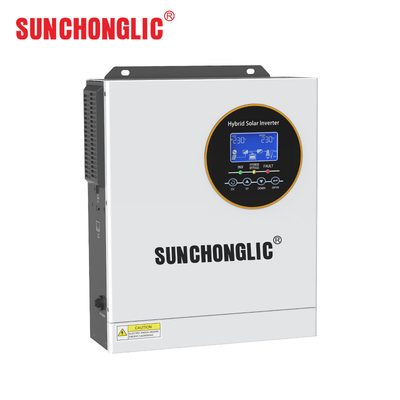

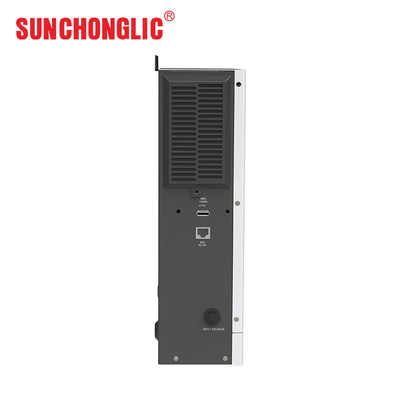

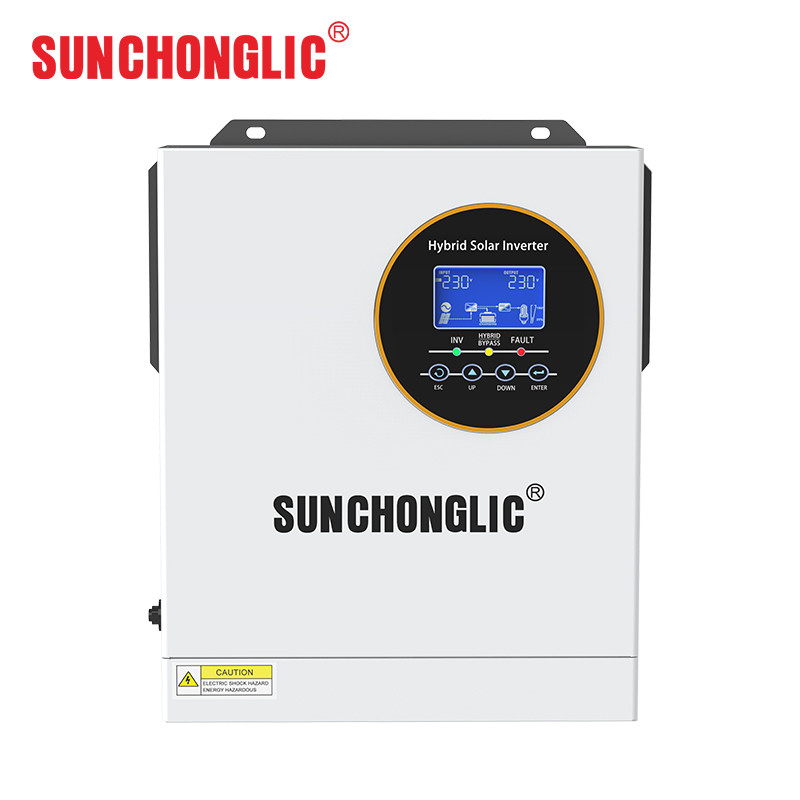

What is feature of 4.2kw 48V output hybrid solar inverter with 70v-450v pv input ?
1.The system operates with solar or grid power without batteries, featuring integrated dustproof durability
2.Its wide PV input range (60V–450V DC) enables flexible solar panel configurations
3.Real-time tracking of total and daily PV generation is accessible via display or remote interfaces
4.RS-485 communication with the BMS provides precise battery status and health monitoring
5.Surplus solar energy feeds back to the grid where permitted by local regulations and grid compatibility
>>>Product Specifications
MODEL | SUN 2.2K24 | SUN 3.2K24 | SUN 4.2K24 | SUN 4.2K48 |
PV Array | ||||
Max. PV Array Power | 2400W | 3600W | 4600W | 4600W |
Max. PV Array Open-Cireuit Voltage |
450VDC | |||
Start-up Voltage | 80VDC | |||
MPPT Operating Voltage Range | 70-400VDC | |||
Nominal Input Voltage | 300VDC | |||
Max. Input Current MPPT | 18A | |||
MPPT max Efficiency | 99% | |||
Battery | ||||
Battery Type | Li-ion /lead-acid | |||
Nominal Battery Voltage | 24V | 48V | ||
Battery Voltage Range | 21-29V | 41-58V | ||
Max. AC Charging Current | 40A | 40A | 40A | |
Max. PV Charging Current | 80A | 80A | 100A | 60A |
Max. Continuous Discharging Current |
80A | 100A | 120A | 80A |
AC Input | ||||
Nominal Voltage | 230VAC | |||
Voltage Range | 170-275VAC | |||
Frequency | 50/60Hz (Auto following) | |||
Max. Input Current | 20A 25A | |||
AC Output | ||||
Nominal Voltage | 220/230VAC士5% | |||
Output Voltage Waveform | Pure Sine Wave | |||
Rated Output Power | 2200VA/2200W | 3200VA/3200W | 4200VA/4200W | 4200VA/4200W |
Peak Output Power | 3200VA | 4400VA | 6100VA | 6100VA |
Nominal Output Fregency | 50/60Hz | |||
Transfer Tine | 10ms | |||
Efficiency(peak) PV to INV | 96.5% | |||
Efficiency(peak) BAT to INV | 93.0% | |||
General Data | ||||
Operating Temperature Range | -10-- +50℃ | |||
Relative Humidity | 0~95% | |||
Max. Operating Altitude | < 4000m | |||
Cooling Method | Intelligent Fan cooling | |||
Display | LED + LCD | |||
Communication with BMS | RS485 | |||
Communication with Cloud | WiFi/4G | |||
Degree of Protection | 1P21 | |||
Weight(kg) | 5.9 | 6.1 | ||
Dimension(6*H*Dmm) | 343*95*275 | |||
Mounting Method | Wall Mounted |
With 10+ years as a solar photovoltaic manufacturer, we deliver premium power solutions—solar inverters,
AGM/GEL battery chargers, and solar charge controllers. Sunchonglic products guarantee reliability and quality.
Get complete product specifications, pls contact us today!
Q1. Are you the factory manufacturer?
A1. We are doing the Solar Energy Photovoltaic Products for over 20 years.
We are the original manufacturer and developer of advanced Solar Energy Photovoltaic
Product,including hybrid solar inverter, power inverter,battery chargers,solar controller,
and solar system,etc.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T,Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and
Mid East etc.
Our products are widely recognized and trusted by our clients and can meet continuously
changing economic and social needs.
We would sincerely welcome new and old customers from over the world to visit and
contact us for future business relationships and mutual success!
