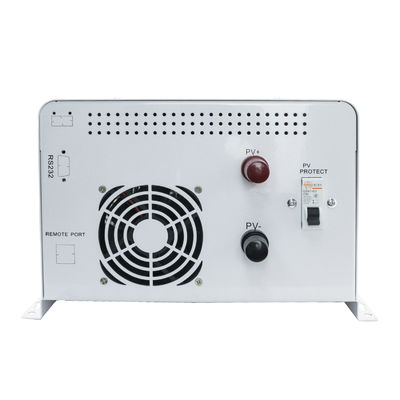

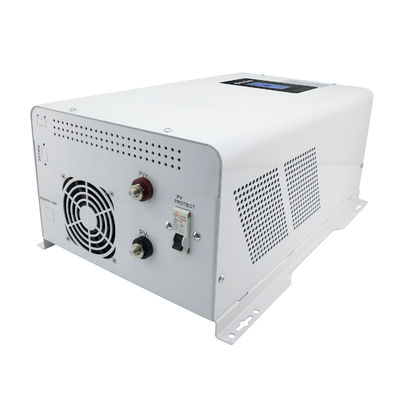

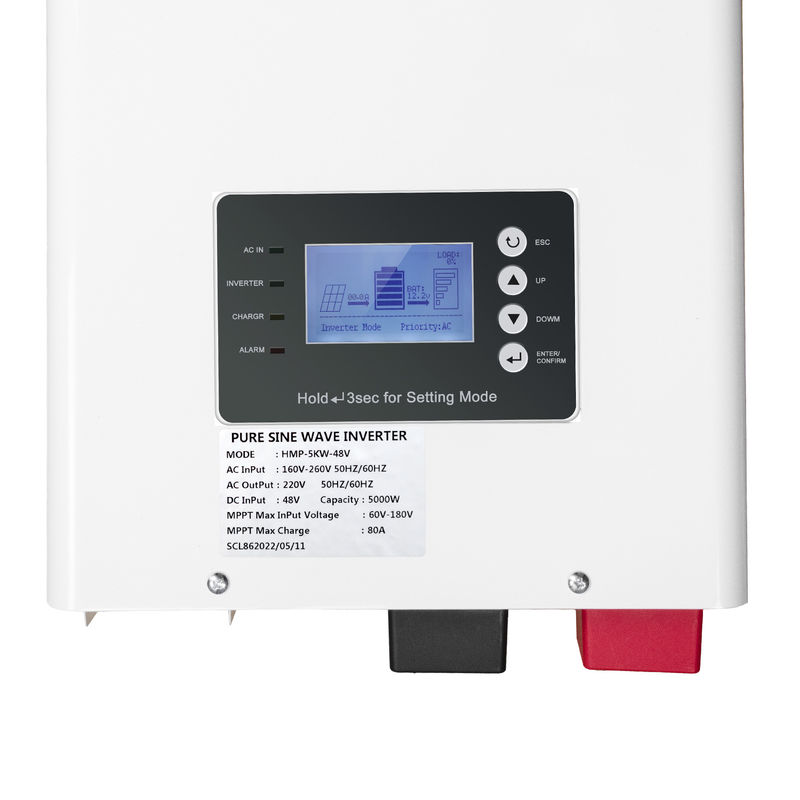

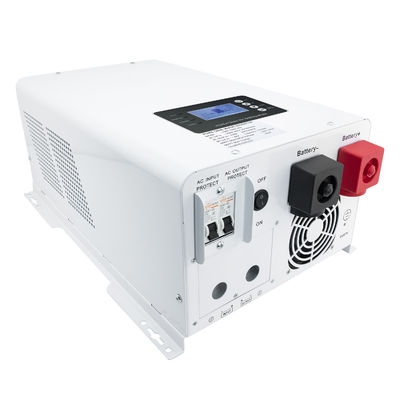

5000W Low Frequency Pure Sine Wave MPPT Hybrid Solar Inverter with 90% Efficiency

Brand Name:	Sunchonglic
Model Number:	HMP-5KVA-48V
MOQ:	5pcs
Price:	US $274.62-1273.85
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

5000w Solar Pure Sine Wave Low Frequency Mppt Hybrid Solar Inverter

Peak Capacity:

15kw

DC Input Voltage Range:

10.5VDC-15VDC (single Battery Voltage 12V)

Output Efficiency:

≈90%

Heat-dissipating Type:

Intelligent Temperature Control

PV Input Port:

One Route(60A)

Packaging Details:

Paper Box

Highlight:

5000W hybrid solar inverter

MPPT pure sine wave inverter

low frequency solar inverter

Product Description

5000W Solar Pure Sine Wave Low Frequency MPPT Hybrid Solar Inverter

Advanced hybrid solar inverter with pure sine wave output and MPPT technology for reliable renewable energy solutions.

Key Features

Compatible with lead-acid, gel, lithium iron phosphate, custom, and ternary lithium batteries
Three operational modes: Battery Priority, PV Priority, and Mains Priority
Optional RS232/RS485 communication ports
PV array supports open-circuit input voltage of 230V DC
High conversion efficiency up to 90%
Built-in lithium battery activation function

Technical Specifications

Model Capacity	5kW
Peak Capacity	15kW
Battery Voltage	24V/48V
MPPT Charging Current	60A
PV Input Port	One route (60A)
PV Input Voltage Range	15V-180V (12V system); 30V-180V (24V system); 60V-180V (48V system)
Max PV Input Capacity	720W (12V system); 1440W (24V system); 2880W (48V system)
MPPT Efficiency	≈99%
Output Wave	Pure sine wave
Output Efficiency	≈90%
Working Temperature	-10℃ to 40℃
Dimensions (LWH)	495320220mm
Net Weight	25kg

Manufacturing Excellence

With over 10 years of experience in solar photovoltaic technology, we develop high-efficiency solar inverters using advanced manufacturing techniques. Supported by a strong R&D team and international certifications, we provide dependable renewable energy solutions for global markets.

Frequently Asked Questions

Are you the factory manufacturer?

We have specialized in Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced solar energy products including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Tell us your specific requirements and we will recommend the most suitable solution for your needs.

What payment methods do you accept?

We accept T/T, Trade Assurance, and other secure payment methods.

What price terms can you offer?

We offer various price terms including EXW, FOB, CIF to accommodate different customer requirements.

Where is your main market?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, Middle East, and other global markets.

Our products are widely recognized and trusted by clients globally and consistently meet evolving economic and social demands. We welcome both existing and potential customers worldwide to establish long-term business partnerships for mutual success.
