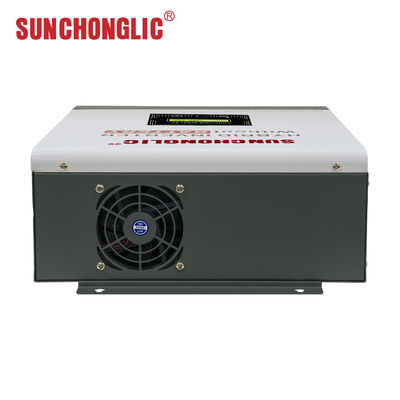

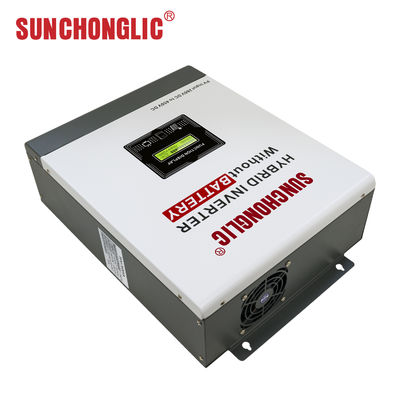

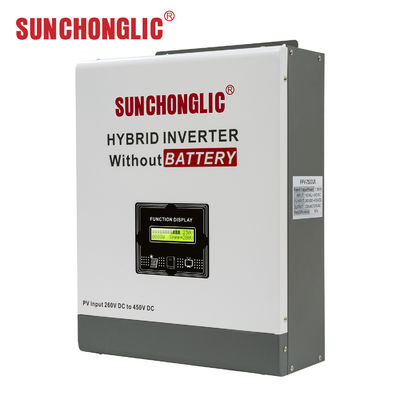

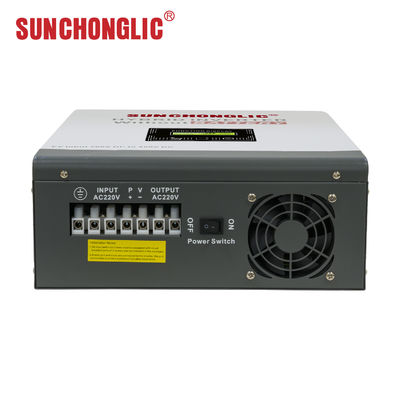

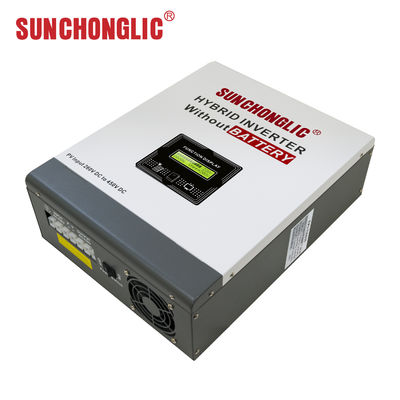

7500W Hybrid Solar Inverter with 450V PV Input and 220V Output for Off Grid MPPT Systems

7500W Hybrid Solar Inverter with 450V PV Input and 220V Output for Off Grid MPPT Systems

Brand Name:	Sunchonglic
Model Number:	FPV-7.5KVA
MOQ:	5pcs
Price:	US $274.62-1273.85
Payment Terms:	,T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

7500w Hybrid Solar Inverter Without Battery Off Grid Mppt 450v Pv 220v Input

LCD:

2 Lines Of Character Display

AC Input Range(Vac):

150VAC-300VAC

Peak Output Power(W):

6000

Rated Output Current(A):

22.7A

PV Max Input Current (Idc):

Packaging Details:

Paper Box

Highlight:

7500w hybrid solar inverter

off grid solar inverter with MPPT

450v PV hybrid inverter

Product Description

7500W Hybrid Solar Inverter Without Battery Off Grid MPPT 450V PV 220V Input

Product Features

PV array voltage input range from 260V DC to 450V DC, accommodating diverse solar panel configurations
No external battery required, making this solar system economical and affordable for residential use
Grid output of 220V AC for direct connection to electrical systems
Built-in 12V DC output interface (optional) for additional devices or systems
Comprehensive safety protections including anti-islanding defense for secure operation
Built-in uninterrupted power supply ensures continuous operation during grid outages

Technical Specifications

PV DC Input Parameters
Model	FPV-7.5KVA
Maximum Input Power (W)	5000W
PV Input Voltage Range (Vdc)	260VDC-450VDC
PV Max Input Current (Idc)	18
AC Input Parameters
AC Input Range (Vac)	150VAC-300VAC
AC Rated Voltage (Vac)	220VAC
AC Output Parameters
Peak Output Power (W)	6000
Rated Output Power (W)	5000
Output Waveform	Pure Sine Wave
Output Voltage Range (Vac)	160VAC-240VAC
Maximum Output Current (A)	25A
Rated Output Voltage (Vac)	220V/230V
Rated Output Current (A)	22.7A
Output Frequency Range (Hz)	40Hz-50Hz
Current Harmonics (at rated power)	<5%
Maximum Efficiency	95%
Environmental Parameters
Operating Temperature Range (°C)	-25 to +60
Relative Humidity	0-95% No condensation
Altitude (m)	≤2000
Cooling Method	Fan Cooling
Nighttime Energy Consumption (W)	<0.2
Noise Decibel (dB)	<50
Communication & Mechanical Properties
LCD Display	2 lines of character display
Dimensions (Width x Depth x Height) mm	375330125
Weight (KG)	5.6

Manufacturing Expertise

We are an experienced manufacturer with extensive expertise in solar energy photovoltaic products, specializing in the design and production of high-quality solar energy solutions. Our factory manufactures a comprehensive range of products including solar power inverters, AGM/GEL lead acid battery chargers, and solar charge controllers to meet diverse residential and commercial requirements. Contact us for additional information!

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

We have over 20 years of experience in solar energy photovoltaic products. We are the original manufacturer and developer of advanced solar energy solutions including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Share your requirements with us, and we will recommend the most appropriate solution for your needs.

What are your payment methods?

We accept T/T and Trade Assurance, among other payment options.

What price terms can you offer?

We can accommodate EXW, FOB, CIF, and various other pricing arrangements.

Where is your main market?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by clients worldwide, meeting continuously evolving economic and social requirements. We sincerely welcome both new and existing customers to contact us for future business relationships and mutual success!
