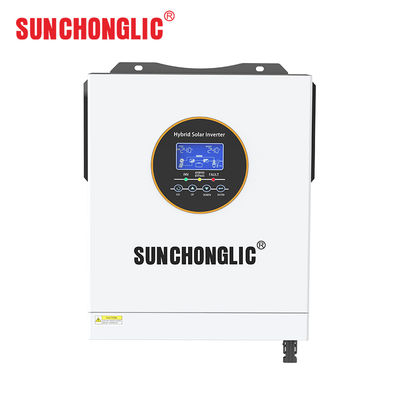

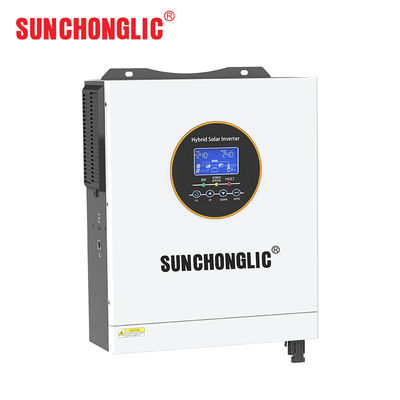

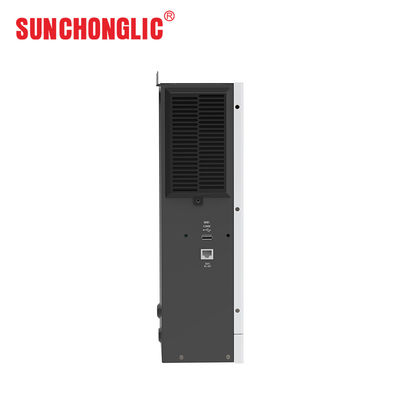

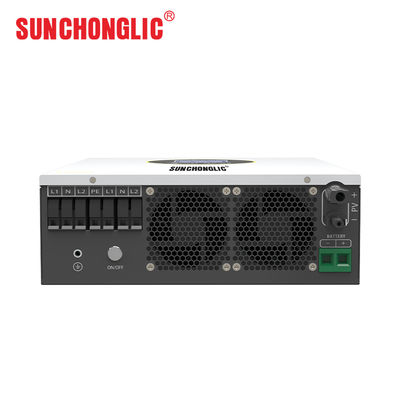

5500W Hybrid Solar Inverter with 100-500V DC Input and Pure Sine Wave Output for Reliable Solar Power Conversion

5500W Hybrid Solar Inverter with 100-500V DC Input and Pure Sine Wave Output for Reliable Solar Power Conversion

Brand Name:	Sunchonglic
Model Number:	SUN 5.5K48-D120
MOQ:	100pcs
Price:	US $274.62-1273.85
Payment Terms:	,T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

5500W Single Phase / 240V Split Phase Hybrid Inverter 100-500V DC Input High-Frequency

Communication With BMS:

RS485

Efficiency (peak) BAT To IM:

93.0%

Max.Input Current:

40A

Voltage Range:

180-280Vac

Transfer Time:

10ms

Packaging Details:

Paper Box

Highlight:

5500W hybrid solar inverter

240V split phase inverter

high-frequency solar inverter with warranty

Product Description

5500W Single Phase / 240V Split Phase Hybrid Inverter

High-frequency hybrid inverter with 100-500V DC input, delivering reliable power conversion for solar energy systems.

Key Features

Dual Voltage Capability: Delivers both 120Vac single-phase and 240Vac split-phase outputs (±5% accuracy) with pure sine wave, compatible with worldwide grid standards (180-280Vac, 50/60Hz auto-detection)
Battery-Free Functionality: Operates without external batteries by directly converting solar power into AC electricity, reducing cost and system complexity for off-grid applications
99% MPPT Performance: Industry-leading 99% maximum power point tracking efficiency with wide PV input range (100-500VDC) for optimal energy production
Robust Construction: Integrated dust-proof modules and broad operating scope (-10°C to 50°C, 0-99% humidity, <4,000m altitude) for dependable performance in challenging environments
Intelligent Energy Monitoring: Real-time tracking of total and daily solar production through WiFi/4G/RS485 interfaces for remote control and performance evaluation

Technical Specifications

MODEL	SUN 5.5K48-D120	SUN 6.2K48-D120
PV Array
Max. PV Array Power	6600W	7200W
Max. PV Array Open-Circuit Voltage	500VDC
Start-up Voltage	100VDC
MPPT Operating Voltage Range	120-450VDC
Nominal Input Voltage	360VDC
Max. Input Current MPPT	20A
MPPT max Efficiency	99%
Battery
Battery Type	Li-ion / lead-acid
Nominal Battery Voltage	48V
Battery Voltage Range	41-58V
Max. AC Charging Current	40A
Max. PV Charging Current	100A
Max. Continuous Discharging Current	120A
AC Input
Nominal Voltage	240Vac (split phase)
Voltage Range	180-280Vac
Frequency	50/60Hz (Auto following)
Max. Input Current	40A
AC Output
Nominal Voltage	120Vac±5%/240Vac±5%
Output Voltage Waveform	Pure Sine Wave
Rated Output Power	5500VA/5500W	6200VA/6200W
Peak Output Power	8000VA	8800VA
Nominal Output Frequency	50/60Hz
Transfer Time	10ms
Efficiency (peak) PV to INV	96.5%
Efficiency (peak) BAT to INV	93.0%
General Data
Operating Temperature Range	-10°C to +50°C
Relative Humidity	0-95%
Max. Operating Altitude	< 4000m
Cooling Method	Intelligent Fan cooling
Display	LED + LCD
Communication with BMS	RS485
Communication with Cloud	WiFi/4G
Degree of Protection	IP21
Weight (kg)	9
Dimension (W×D×H mm)	373×105×300
Mounting Method	Wall Mounted

Manufacturer Profile

We are a leading manufacturer of solar photovoltaic products, including inverters, AGM/GEL battery chargers, and solar controllers. Our Sunchonglic brand is recognized for high performance, reliability, and cost-effectiveness. Our product range includes pure sine wave inverters, UPS chargers, voltage stabilizers, and PWM/MPPT solar controllers. With strong R&D and testing capabilities, we continuously improve our products and offer customized solutions. Operating from a 10,000 m² logistics base, we provide comprehensive after-sales support. Our products are widely used in the Middle East, Southeast Asia, Africa, and South America.

Production Process

Frequently Asked Questions

Q1. Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced solar energy products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

Q2. How to select a suitable product?

Tell us your requirements, and we will recommend the most suitable product for your application.

Q3. What is your payment methods?

We accept T/T, Trade Assurance, and other secure payment methods.

Q4. What's the price terms can you offer for us?

We can accept EXW, FOB, CIF and other international trade terms.

Q5. Where is your main market for your products?

Most of our Sunchonglic brand products are exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by our clients and can meet continuously changing economic and social needs. We would sincerely welcome new and old customers from around the world to visit and contact us for future business relationships and mutual success!
