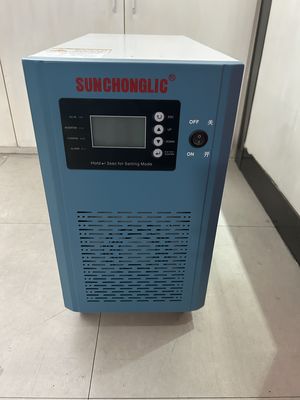

15KW High Power Hybrid Solar Inverter 48V to 220V with MPPT Solar Charging and Pure Sine Wave Output

Brand Name:	Sunchonglic
Model Number:	HMP-15KW-48
MOQ:	5pcs
Price:	US $53.85 - 60.00
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

15kw Low Frequency Inverter Pure Sine Wave High Power Ac 48v To Ac 220v

AC Input:

160V-260V

AC Output:

220V

AC Output:

220V

MPPTMax Input Voltage:

60V-230V

MPPTMax Input Voltage:

60V-230V

MPPT Max Charge:

80A*2

Frequency:

50Hz/60Hz

Packaging Details:

Paper Box

Highlight:

15KW High Power Hybrid Solar Inverter

48V to 220V Low Frequency Inverter

MPPT Solar Charging Pure Sine Wave Inverter

Product Description

15kW Low Frequency Pure Sine Wave Inverter

High-power 48V DC to 220V AC pure sine wave inverter with advanced solar charging capabilities for demanding industrial applications.

Product Features

High Power Output: 15kW rated power with 45kW peak capacity for handling significant electrical loads and startup surges
Efficient MPPT Solar Charging: Built-in MPPT controller with 120A charging current and ~99% conversion efficiency
Wide Battery Compatibility: Supports Lead-acid, Gel, LiFePO4, and NMC lithium batteries with customizable charging parameters
Pure Sine Wave Output: Clean, stable AC output compatible with sensitive electronics
Multiple Operational Modes: Grid Priority, Battery Priority, Energy Saving, and Unattended Mode
Comprehensive Protection: Battery under-voltage/over-voltage, overload, and high-temperature protection with intelligent cooling

Technical Specifications

Model	2kW	3kW	4kW	5kW	6kW	8kW	10kW	12kW	15kW
Peak Capacity	6kW	9kW	12kW	15kW	18kW	24kW	30kW	36kW	45kW
Battery Voltage	24/48V	24/48V	24/48V	24/48/96V	24/48/96V	48/96V	48/96V	48/96V	48/96V
MPPT Charging Current	60A	60A	60A	60A/120A	60A/120A	60A/120A	60A/120A	60A/120A	60A/120A
Net Weight (kg)	23kg	26kg	29kg	32kg	35kg	43kg	48kg	55kg	67kg

Additional Specifications

PV Input: 30V-180V (24V system); 60V-180V (48V system); 120V-180V (96V system)
MAX PV Input Capacity: Up to 11520W (96V system)
Output Efficiency: ~90%
Output Voltage: 200V-240V adjustable
Transfer Time: <5ms
Working Temperature: -10°C to 40°C
Communication: RS232/RS485 optional

Manufacturing Excellence

With over 20 years of experience in solar energy photovoltaic products, we specialize in manufacturing high-quality solar power inverters, battery chargers, and solar charge controllers. Our Sunchonglic brand products are known for reliable and efficient performance in demanding applications.

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced solar energy products including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Tell us your specific requirements and we will recommend the most suitable model for your application.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment methods.

What price terms can you offer?

We can accommodate EXW, FOB, CIF, and other international trade terms.

Where is your main market?

Our Sunchonglic brand products are exported worldwide, with strong presence in Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by clients worldwide, meeting continuously changing economic and social needs. We welcome new and existing customers to contact us for future business relationships and mutual success!
