15kW High Power Hybrid Solar Inverter with Dual PV Input and 99% MPPT Efficiency Pure Sine Wave

Brand Name:	Sunchonglic
Model Number:	HMP-15KW-48
MOQ:	5pcs
Price:	US $53.85 - 60.00
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

15kW High Power Inverter With Dual PV Input 99% MPPT Efficiency Pure Sine Wave & Multi-Battery Support

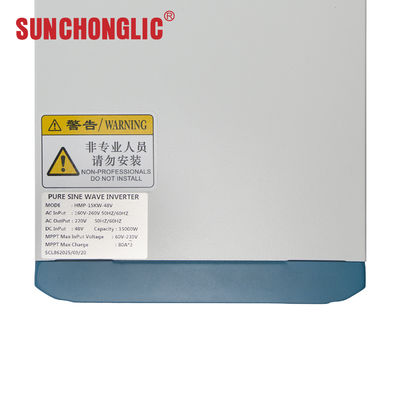

AC Input:

160V-260V

AC Output:

220V

MPPTMax Input Voltage:

60V-230V

MPPT Max Charge:

80A*2

Frequency:

50Hz/60Hz

Packaging Details:

Paper Box

Highlight:

15kW High Power Hybrid Solar Inverter

Dual PV Input Hybrid Solar Inverter

99% MPPT Efficiency Solar Inverter

Product Description

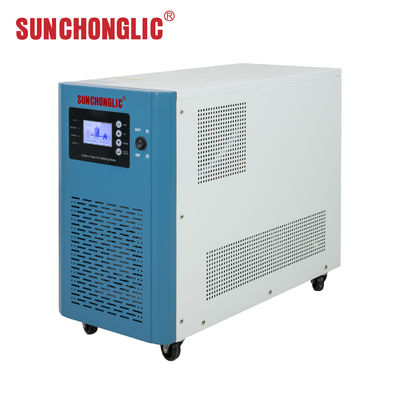

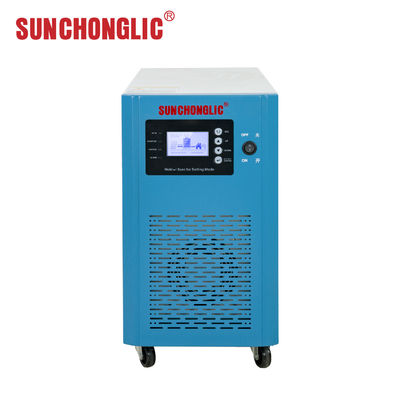

15kW High Power Inverter with Dual PV Input

Professional-grade 15kW solar inverter featuring 99% MPPT efficiency, pure sine wave output, and multi-battery support for industrial and commercial applications.

Key Features

High Power Output: 15kW rated power with 45kW peak capacity for large inductive loads like motors and water pumps
Efficient Dual MPPT: 99% conversion efficiency with dual PV input and 120A maximum charging current
Wide Battery Compatibility: Supports 48V and 96V systems with lead-acid, gel, LiFePO4, and NMC lithium batteries
Pure Sine Wave Output: Clean AC power with ~90% efficiency for sensitive electronics
Multiple Operating Modes: AC Priority, DC Priority, ECO Mode, Unattended Mode, and Generator Mode
Robust Charging Capability: High-current AC charging with wide input voltage ranges for stable operation

Technical Specifications

Model Capacity	2kW	3kW	4kW	5kW	6kW	8kW	10kW	12kW	15kW
Peak Capacity	6kW	9kW	12kW	15kW	18kW	24kW	30kW	36kW	45kW
Battery Voltage	24/48V	24/48V	24/48V	24/48/96V	24/48/96V	48/96V	48/96V	48/96V	48/96V
MPPT Charging Current	60A	60A	60A	60A/120A	60A/120A	60A/120A	60A/120A	60A/120A	60A/120A
Net Weight (kg)	23kg	26kg	29kg	32kg	35kg	43kg	48kg	55kg	67kg
Gross Weight (kg)	28kg	31kg	34kg	38kg	40kg	50kg	55kg	62kg	74kg

Additional Specifications

PV Input: One route (60A) or two routes (120A)

PV Input Voltage Range: 30V-180V (24V system); 60V-180V (48V system); 120V-180V (96V system)

Controller Conversion Efficiency: ~99%

Output Efficiency: ~90%

Working Temperature: -10°C to 40°C

Transfer Time: <5ms

Manufacturer Profile

We are an established manufacturer with over 20 years of experience in solar energy photovoltaic products. Our expertise includes solar power inverters, AGM/GEL lead acid battery chargers, solar charge controllers, and complete solar systems.

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

Yes, we have been manufacturing solar energy photovoltaic products for over 20 years. We are the original manufacturer and developer of advanced solar products including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Tell us your specific requirements and we will recommend the most suitable solution for your application.

What are your payment methods?

We accept T/T and Trade Assurance among other secure payment options.

What price terms can you offer?

We offer various price terms including EXW, FOB, CIF to accommodate different shipping needs.

Where is your main market?

Our Sunchonglic brand products are exported worldwide, with strong presence in Southeast Asia, Africa, and the Middle East.

Quality Assurance: Our products are widely recognized and trusted by clients worldwide, designed to meet continuously changing economic and social needs. We welcome both new and existing customers to contact us for future business relationships and mutual success.
