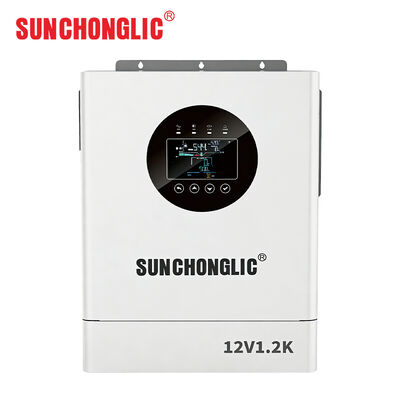

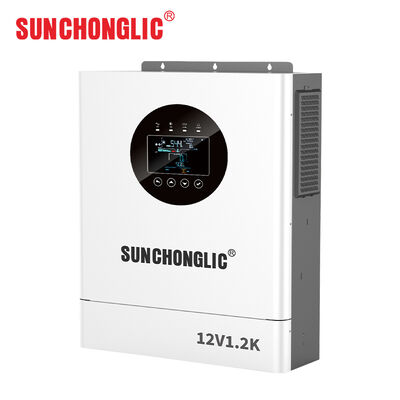

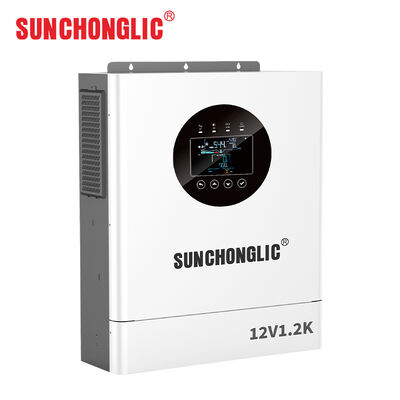

1.2kW Pure Sine Wave Hybrid Solar Inverter with MPPT Dual AC/PV Charging and UPS Function

Brand Name:	Sunchonglic
Model Number:	SUNer-D 1200-12
MOQ:	100pcs
Price:	US $9.09-67.82
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

1.2kW Pure Sine Wave Solar Inverter With MPPT Dual AC / PV Charging & UPS Function

Surge Power (kVA):

2.4

Voltage (VAC):

208/220/230/240

Frequency (Hz):

50/60(Auto Adaptive)

Communication:

RS485/RS232

Ingress Protection:

IP21

Packaging Details:

Paper Box

Highlight:

1.2kW Pure Sine Wave Hybrid Solar Inverter

Dual AC/PV Charging Solar Power Inverter

UPS Function MPPT Inverter

Product Description

1.2kW Pure Sine Wave Solar Inverter with MPPT Dual AC/PV Charging & UPS Function

Product Features

LCD Display for easy monitoring
Wide MPPT Range: 18-125V
Power Factor: 1.0
Built-in 60A Solar Charger
Pure Sine Wave Output
Comprehensive Protection Systems

Technical Specifications

Model	SUN-D1200-12
AC Input
Rated Input Voltage (VAC)	208/220/230/240; L+N+PE
Voltage Range (VAC)	90~280±3 (normal mode); 170~280±3 (UPS mode)
Frequency (Hz)	50/60 (Auto Adaptive)
AC Output
Rated Capacity (kW)	1.2
Surge Power (kVA)	2.4
Voltage (VAC)	208/220/230/240
Power Factor (PF)	1
Frequency	50/60Hz±0.1%
Switch Time (ms)	10
Wave Form	Pure Sine Wave
Overload Capacity (Battery Mode)	60s@102%~110%;10s@110%~130%;3s@130%~150%;0.2s@>150%
Max. Efficiency (Battery Mode)	90%@12VDC
Charger (PV/AC)
Solar Charger Type	MPPT
Max PV input current / power	14A/1000W
Operating Voltage Range (VDC)	18~100
Max PV Open Circuit Voltage (VDC)	125
Max PV Charge Current (A)	60
Max AC Charge Current (A)	60
Max. Charge Current (PV + AC) (A)	120
Battery
Normal Voltage (VDC)	12.8
Floating Charge Voltage (VDC)	14
Overcharge Protection (VDC)	14.6
Battery Type	Lithium and Lead-acid
Interface
Display	LCD
Communication	RS485/RS232
General Data
Ingress Protection	IP21
Operating Temperature	-10℃~50℃
Relative Humidity	5%~95% (Non-condensing)
Storage Temperature	-15℃~60℃
Max. Operating Altitude	4000m (Derating above 1000m)
Activation
AC Activation	YES
PV Activation	YES
Dimensions
Product Size (mm)	226330110mm
Package Size (mm)	286390170mm

Manufacturer Profile

We are a manufacturer of Solar Energy Photovoltaic Products with many years of experience. Our factory produces Solar Power Inverters, AGM/GEL Lead Acid Battery Chargers, Solar Charge Controllers, and more. Choosing Sunchonglic brand products ensures quality and reliability.

Production Process

Frequently Asked Questions

Q1. Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced solar energy products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

Q2. How to select a suitable product?

Tell us your requirements and we will recommend the most suitable product for your needs.

Q3. What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment methods.

Q4. What price terms can you offer?

We can accommodate EXW, FOB, CIF, and other international trade terms.

Q5. Where is your main market?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by clients worldwide, meeting continuously changing economic and social needs. We welcome both new and existing customers to contact us for future business relationships and mutual success!
